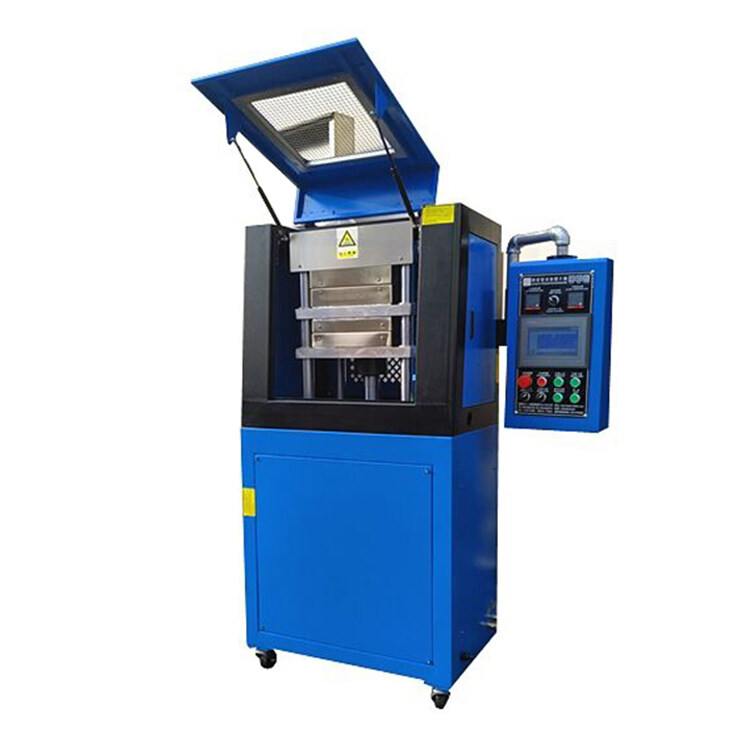

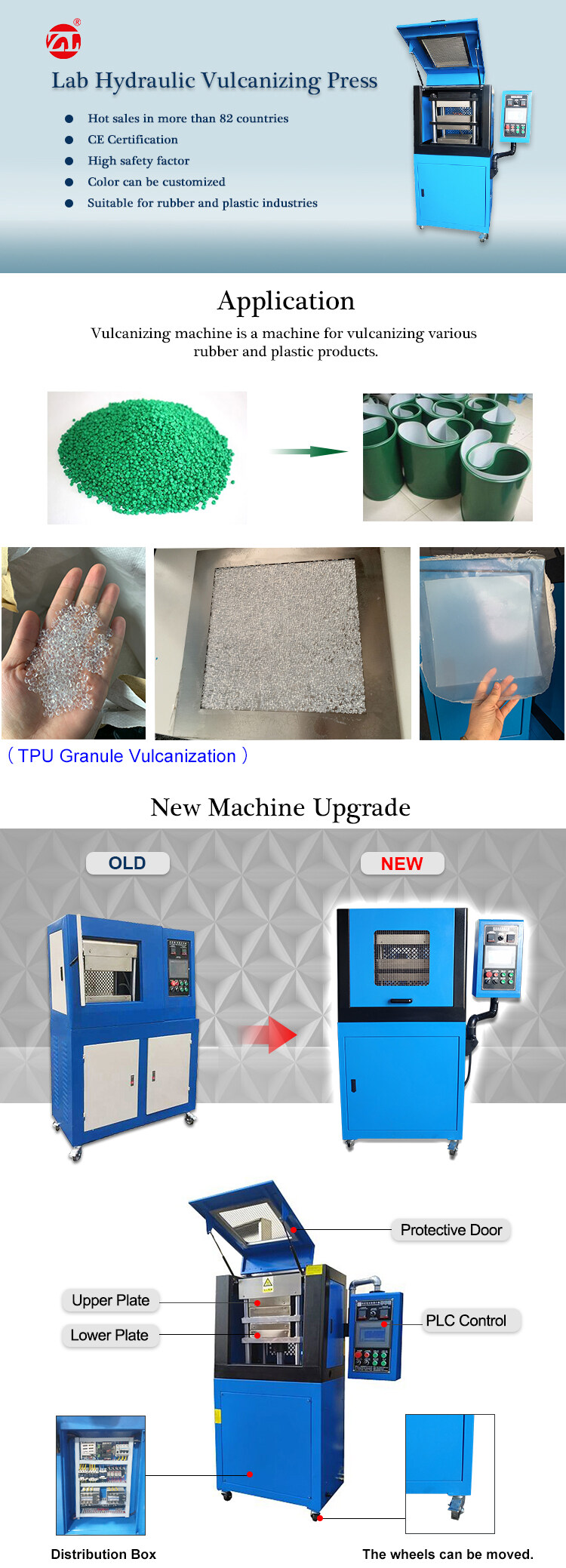

Applicable to rubber and plastic raw materials, pigments, oil, chemical raw materials, etc. Put each raw material in the mold, sandwich it between the electric heating plates of the machine, apply appropriate pressure and temperature, and shape the raw material for testing. Name: small vulcanizing machine, experimental tablet press, small tablet press.
Product Introduction:
Applicable to rubber and plastic raw materials, pigments, oil, chemical raw materials, etc. Put each raw material in the mold, sandwich it between the electric heating plates of the machine, apply appropriate pressure and temperature, and shape the raw material for testing. Name: small vulcanizing machine, experimental tablet press, small tablet press.

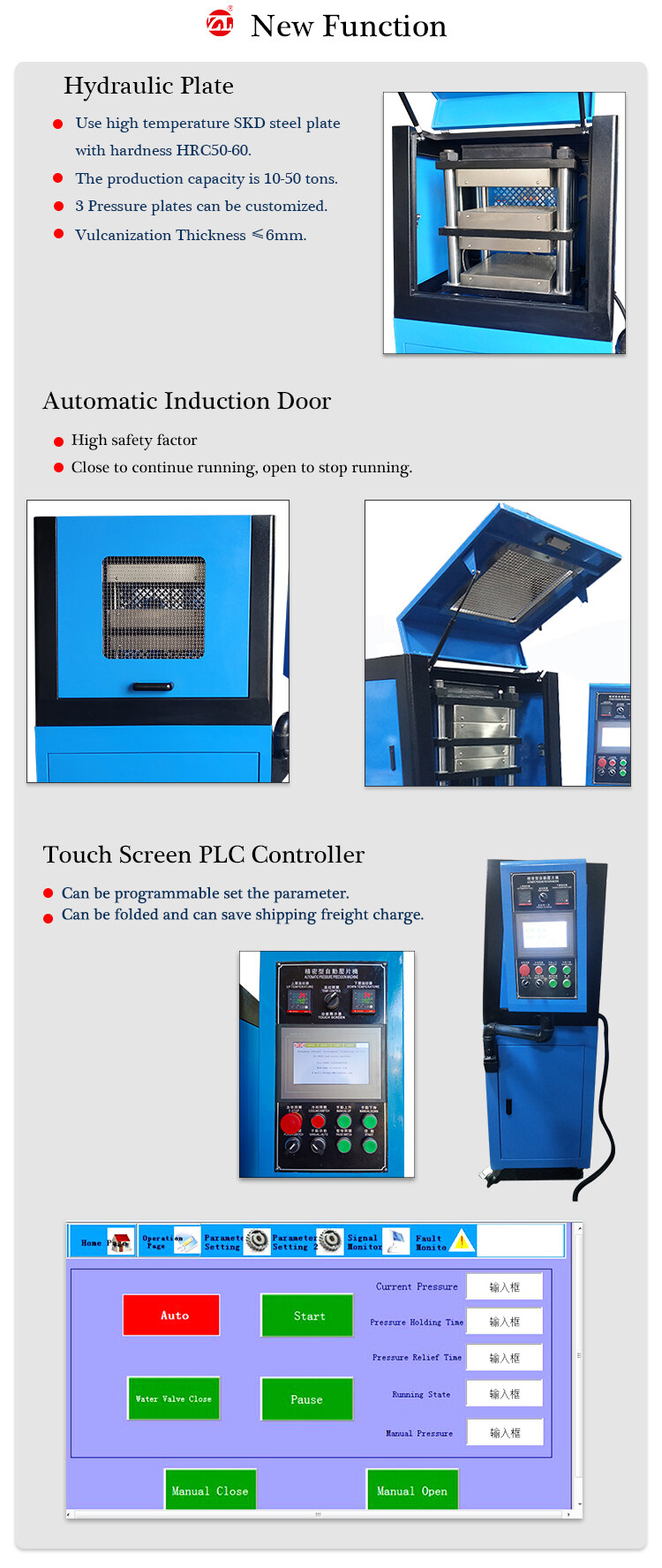

Main Feature:
High-performance hydraulic system, with automatic pressure compensation function, can preset the time and pressure of primary pressurization and secondary pressurization. High-precision, high-wear-resistant guide column, strong load capacity, stable lifting; imported technology is used to process the electric heating plate material, high temperature resistance, corrosion resistance, fast heat transfer, no deformation. Humanized oil circuit design, when the instrument is in a long-term maintenance When it is under pressure or in a non-working state, it will automatically enter the shutdown pressure maintenance or delayed shutdown, and will automatically pressurize or depressurize when the set time is reached.
Functional Parameters Of Vulcanizing Machine:
|
Capacity |
10T/20T/30T/50T/65T/80T/100T (capacity optional) |
|
Temperature Range |
Normal temperature to 300°C (adjustable at will) |
|
Temperature Controller |
Microcomputer high-precision LED display, key setting input, numerical display |
|
Timer |
LED display, time range 0.1S～99min～9.9hr (adjustable at will) |
|
Temperature Control Mode |
P.I.D mode microcomputer control performance is stable and temperature control is precise. |
|
Heater |
The heating mold has a built-in cylindrical shape, the hole position is scientifically matched, the temperature is fast, the life is long, and it is easy to maintain |
|
Heating Time |
About 15 minutes from room temperature to 170°C |
|
Hot Pressing Plate (other area specifications can be ordered) |
300×300mm high temperature resistant SKD imported steel plate, surface carbonization and quenching, fast heat conduction, parallel pressure constant type (hot pressing plate specification can be customized according to customer requirements) |
|
Cold Pressing Plate (other area specifications can be ordered) |
300×300mm titanium aluminum alloy, fast heat conduction, corrosion resistance. (The specifications of cold pressing plate can be customized according to customer requirements) |
|
Cold Cutting System |
Tap water circulation system |
|
Cooling Temperature Range |
Normal temperature – tap water |
|
Oil Pressure System |
Proportional hydraulic flow closed-loop control system, GPY oil pump drives high-performance electro-hydraulic and high-precision non-resistance oil cylinder piston to perform equal-rate control mode, with automatic pressure compensation function. Primary pressurization and secondary pressurization The time can be preset, the load is strong, and the lifting is stable; automatic pressurization, pressure maintenance, and pressure relief |
