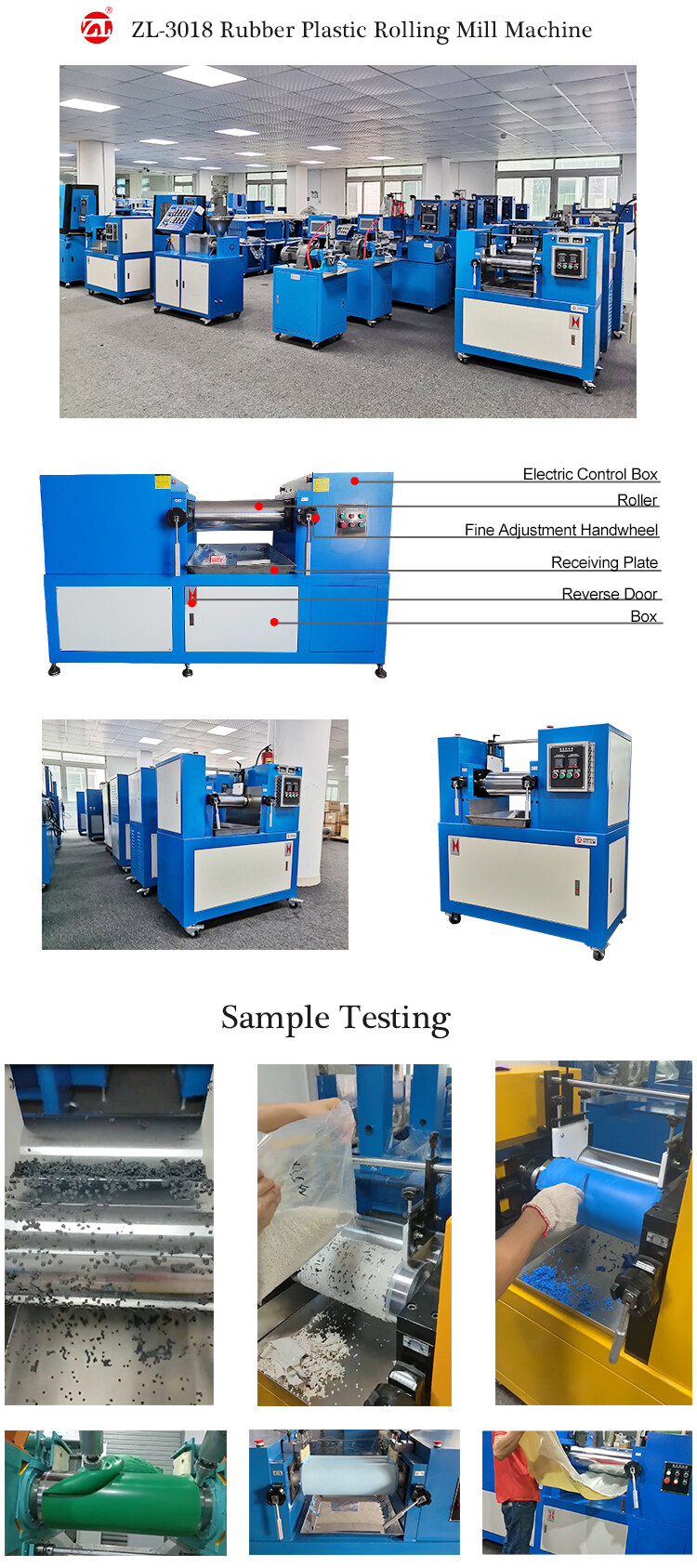

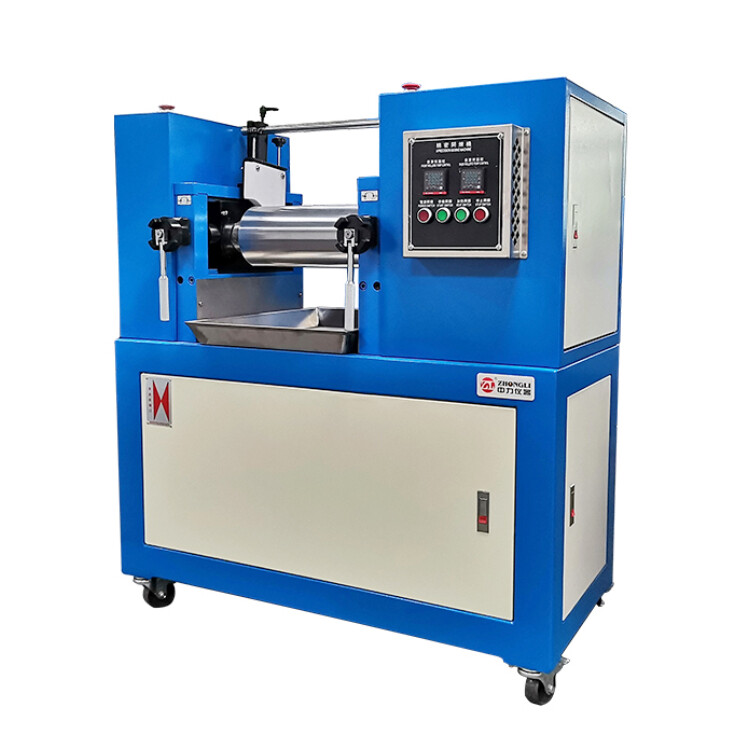

ZL-3018 series open mill is suitable for the mixing and processing of polymers such as PVC, masterbatch and other chemical raw materials in the rubber and plastic industry. In this way, the raw materials and compounding ingredients are mixed evenly, and the required color and quality are achieved. This machine adopts a special heating mold, the surface temperature of the roller is uniform, and it will never delaminate. The thickness of the sample can be adjusted and the machine safety protection device is attached. It is light and easy to use.
ZL-3018 series open mill is suitable for the mixing and processing of polymers such as PVC, masterbatch and other chemical raw materials in the rubber and plastic industry. In this way, the raw materials and compounding ingredients are mixed evenly, and the required color and quality are achieved. This machine adopts a special heating mold, the surface temperature of the roller is uniform, and it will never delaminate. The thickness of the sample can be adjusted and the machine safety protection device is attached. It is light and easy to use.
|
Model |
|
ZL-3018-76 |
ZL-3018-120 |
ZL-3018-160 |
ZL-3018-200 |
ZL-3018-230 |
Zl-3018-300 |
ZL-3018-400 |
|
Diameter of roll |
mm |
76 |
120 |
160 |
200 |
230 |
300 |
400 |
|
Length of roller face |
mm |
300 |
350 |
350 |
500 |
650 |
650 |
900 |
|
Mixing Capacity |
kg |
0.002-0.6 |
0.002-2 |
0.002-2.8 |
0.002-5 |
0.005-10 |
1-15 |
5-30 |
|
Front roll surface speed |
rpm |
19 |
19 |
19 |
19 |
19 |
19 |
19 |
|
Friction ratio |
|
1:1.30 |
1:1.35 |
1:1.35 |
1:1.35 |
1:1.27 |
1:1.27 |
1:1.27 |
|
Roll gap range |
mm |
0-3 |
0-6 |
0-6 |
0-8 |
0-12 |
0-12 |
0-15 |
|
Driving Power |
KW |
0.75kw |
1.5kw |
2.2 KW (plastic） 7.5KW （rubber） |
7.5kw (plastic) 11kw (rubber) |
11KW(plastic/silicone) 15KW (rubber) |
15KW(plastic/silicone ) 22KW(rubber)30KW (Customize) |
30KW(plastic/silicone ) 40KW (rubber) |
|
Heating Mode |
Electricity heating , Oil Heating ( option) |
|||||||
|
Cooling Mode |
Water Cooling ( option) |
|||||||
|
Roll Temperature |
Room temperature — 300℃ |
|||||||
|
Roll Hardness |
HRC 50 ~ 60 |
|||||||
|
Temperature Accuracy |
± 2 ℃ (we adopt the high accuracy PID micro computer controller) |
|||||||
|

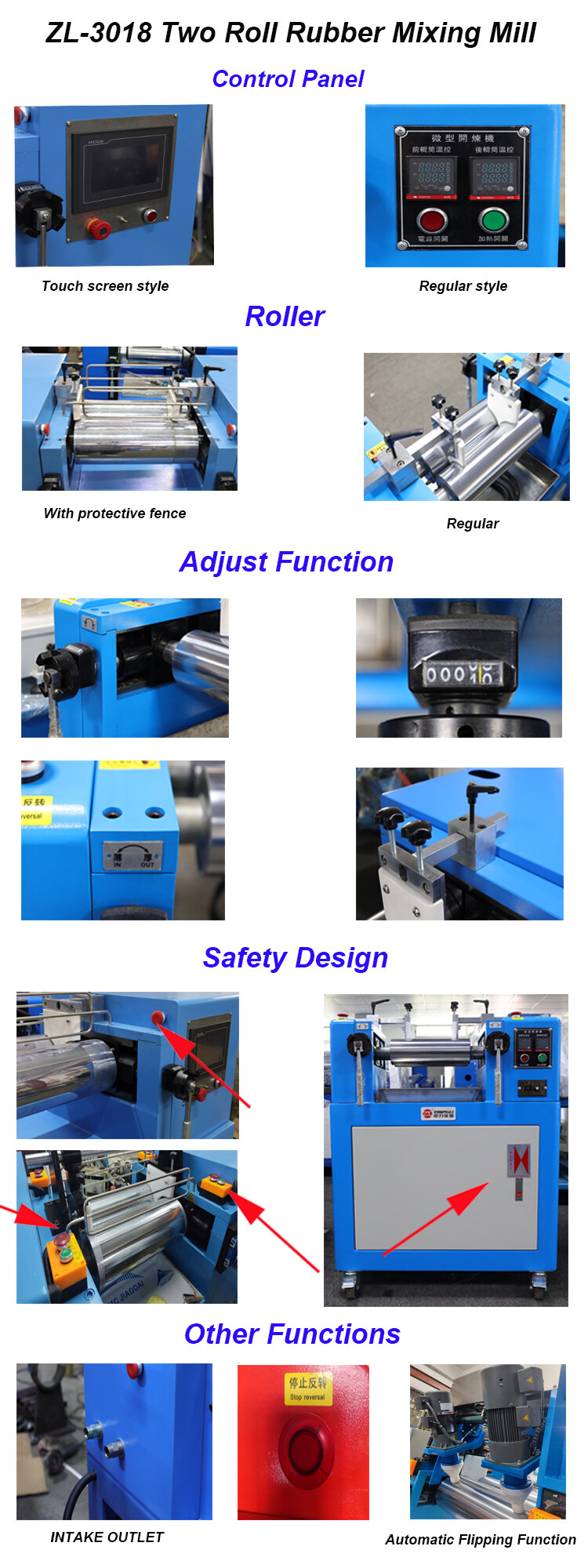

Safety device |
It have 6 safety buttons and safety guard is option |
|||||||
|
Machine weight |
kg |
160 |
460 |
660 |
860 |
1960 |
2960 |
3800 |
|
Overall dimension |
mm |
1100x400x 1180 |
1100x550x 1380 |
1200x650x 1380 |
2200x750x 1380 |
2200x950x 1580 |
2600x950x 1580 |
5295×1789 x170 |
|
Power |
380V 3 phase 50-60hz |
|||||||
|
Product Name |
Specifications |
|
Motor |
Siemens Bed Motor |
|
Relay |
Japan Omron |
|
Miniature Circuit Breaker |
Andre Group |
|
Contactor |
Taiwan Taian Contactor Andre Group |
|
Electric Wire |
UL standard |
|

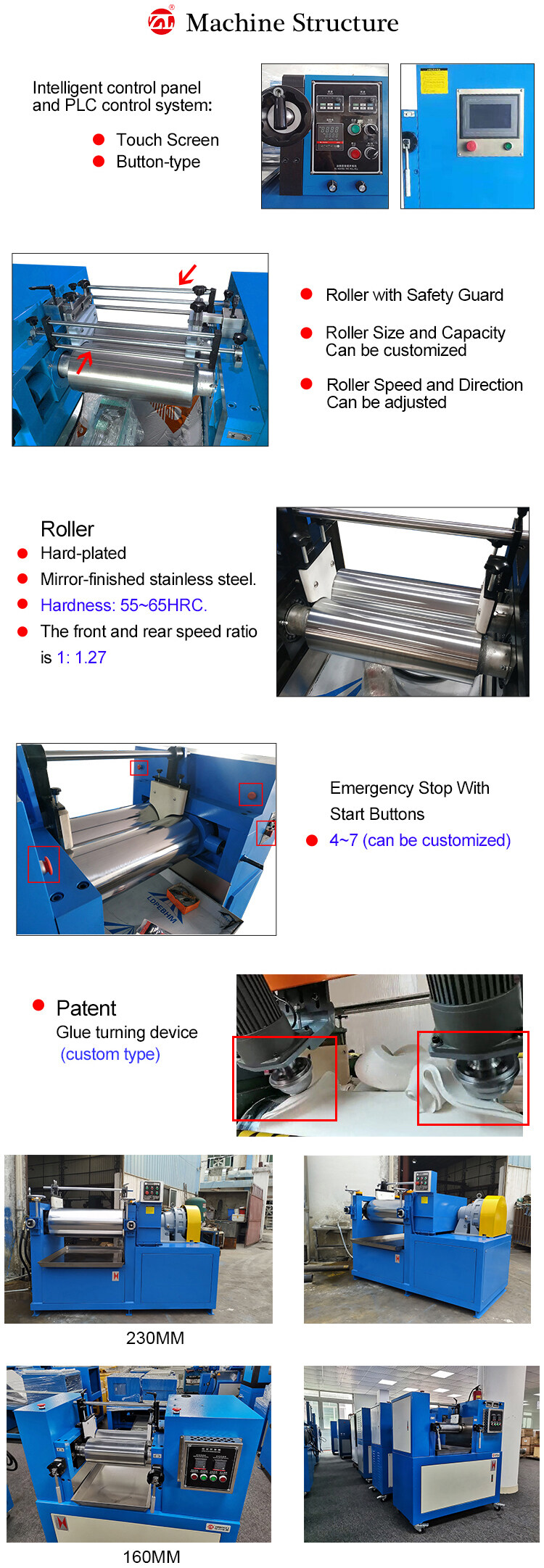

Roller |
surface hardwood treatment |
|
Baffle |
Nylon board Huangyan board |
|
Frame |
40*80 abrasive steel |
|
Bearing |
Japan NSK |
|
Paint |
light gray + light blue |
|
Gap Set Screw |
GB12-12 |
|
Gap Display |
digital display |
|
Gap Adjustment Handle |
4 inch iron wheel |
|
Tray |
Stainless steel |
|
Water Connector |
1 inch copper rotary joint made in China |
|
Inlet Pipe |
4 points high pressure tubing |
|
Inlet And Outlet |
Standard 4 taps |
|
Emergency Stop Switch |
Jinghao jog switch |
|
Safety Door Switch |
Jog micro switch |
