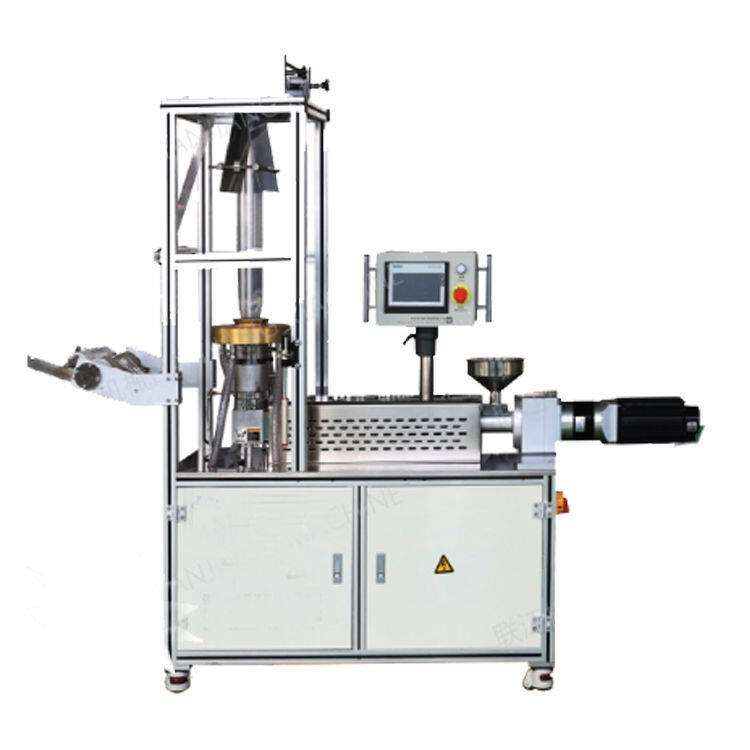

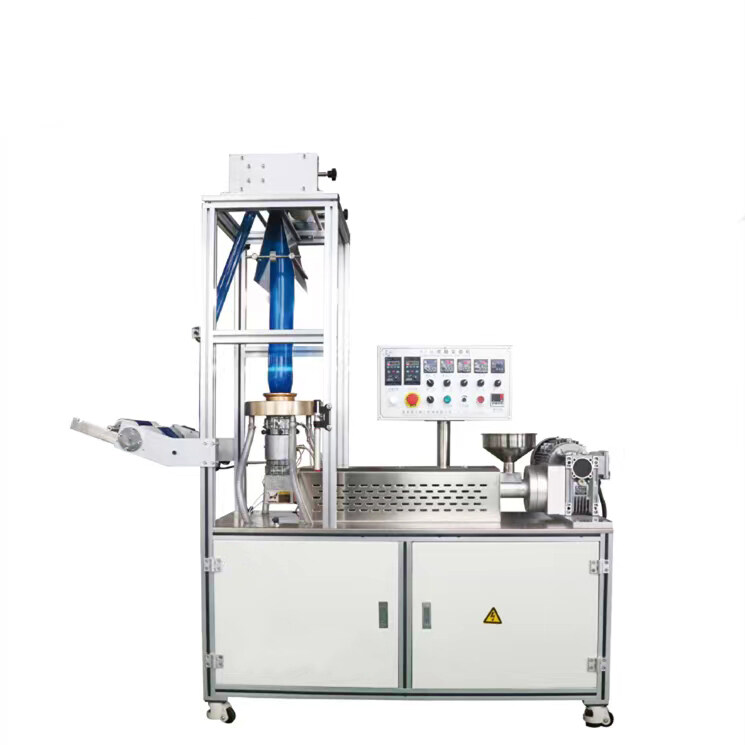

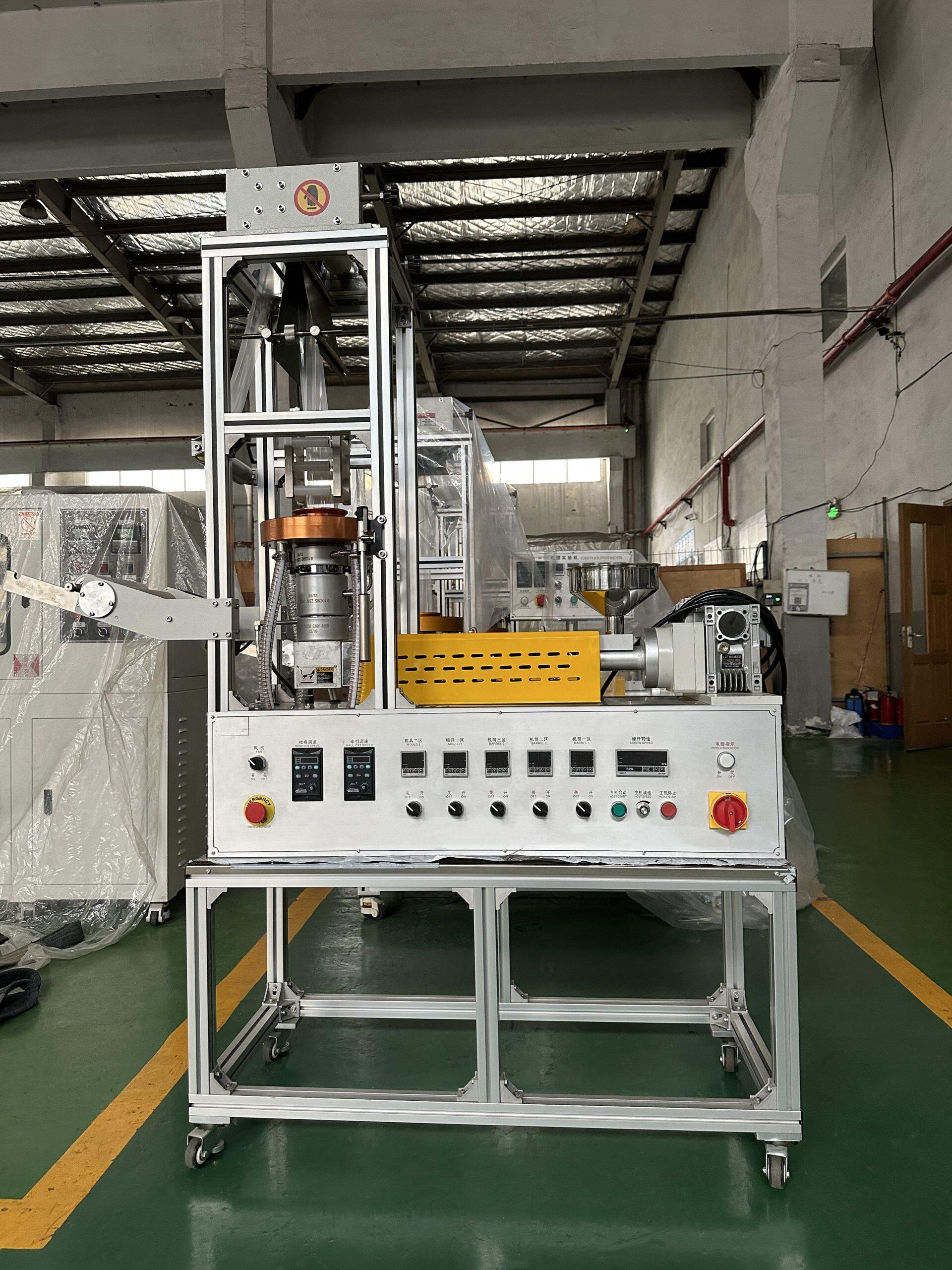

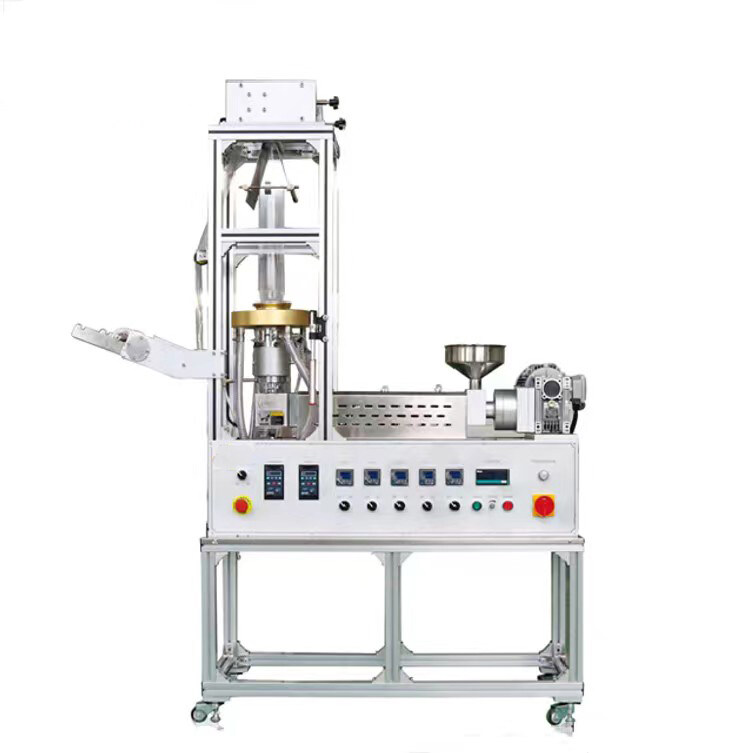

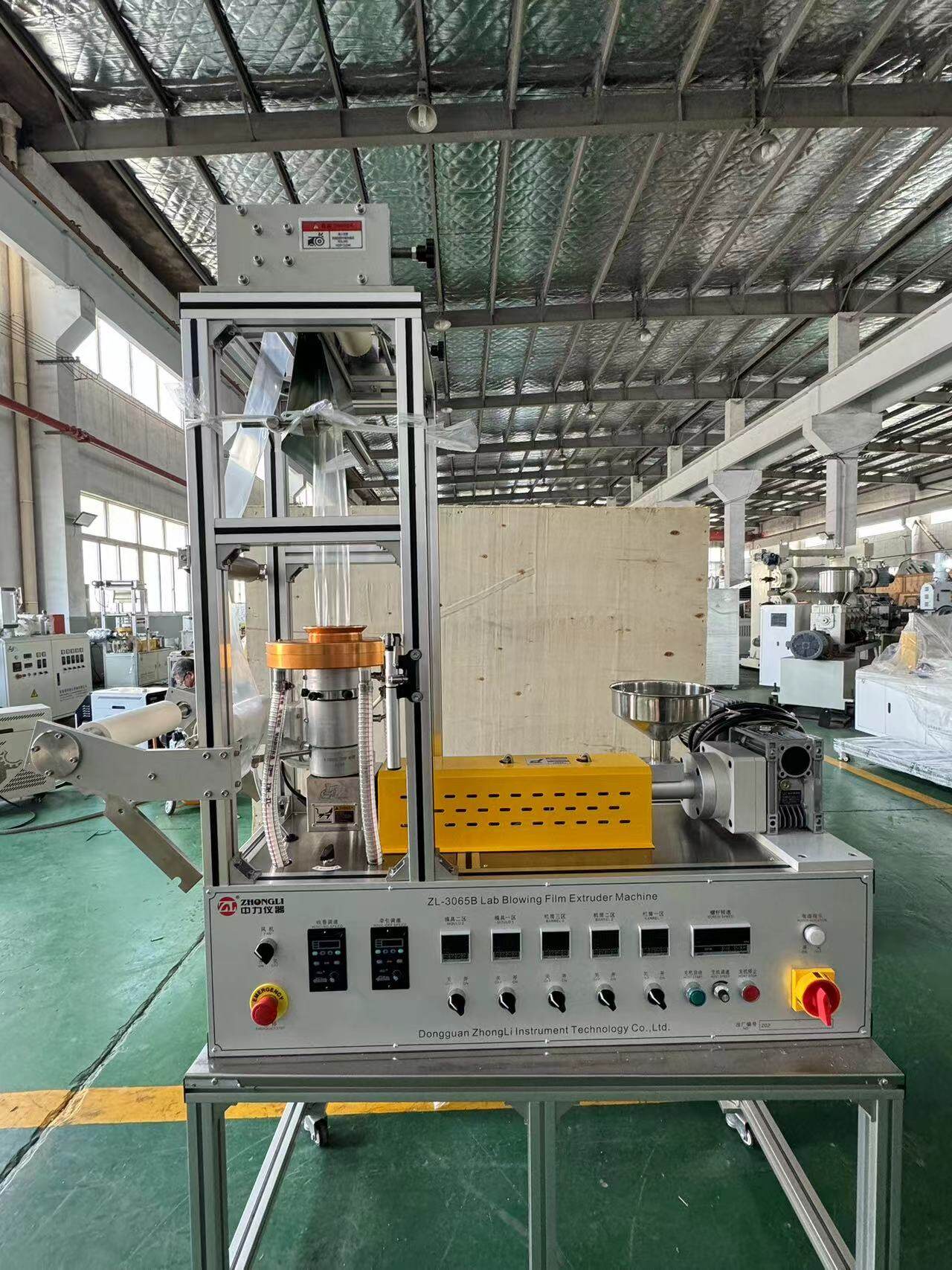

The national patented small laboratory blown film machine is suitable for the development of various new materials, the measurement of the dispersibility of color masterbatch, the optimization of production process parameters, and the study of the blown film forming properties of various materials. It is a scientific research, teaching demonstration, and production enterprise experiment. room use.
Description:
The national patented small laboratory blown film machine is suitable for the development of various new materials, the measurement of the dispersibility of color masterbatch, the optimization of production process parameters, and the study of the blown film forming properties of various materials. It is a scientific research, teaching demonstration, and production enterprise experiment. room use.
|
◆Device Description |
|
|
Name |
Laboratory film blowing machine |
|
Model |
ZL SCM25-PLC |
|
Classification |
Blown film |
|
The Overall Dimensions (L*W*H) |
2100*650*1900mm |
|
Weight |
270KG (net weight) |
|
Total Power |
8.0KW (approximately 5.0KW in actual use) |
|
Patent Number |
ZL2015 2 025 1205.7 |
|
|
|
|
◆Using Condition |
|
|
Electric Resource |
220V, 1PHASE, 50HZ |
|
Plastic Raw Materials |
PE(except the special material) |
|
Bowing Width |
100-150mm |
|
Capacity(Theoretical value) |
0.5-2.0kg/h |
|
Minimum Single Usage |
200g |
|
Bowing Thickness |
0.01-0.10mm |
|
Whole Machine Control Method |
PLC |
|
Move Method |
Fuma Wheel F60 |
|
|
|
|
◆Main Parts Specification |
|
|
■SJ25/30 Single Screw Extruder |
|
|
Barrel Screw Diameter |
Φ25mm |
|
Screw Length To Diameter Ratio |
30：1 |
|
Barrel Screw Material |
38CrMoAlA |
|
Nitriding Depth |
0.4~0.7mm |
|
Surface Hardness |
HV940~1050 |
|
Screw Surface Treatment |
Hard chrome plated on the surface |
|
Screw Structure |
Double-pass mixing section-special screw structure to enhance plasticization |
|
Barrel Heating Way |
Electric heating |
|
Screw Speed |
10 ~ 60rpm |
|
Motor Form |
Dedicated servo motor |
|
Motor Power |
2300W |
|
Speed Mode |
Servo governor |
|
Gearbox |
Planetary gearbox |
|
Speed Control |
High precision 0.01RPM—digital input |
|
temperature Control |
SSR |
|
Way To Control |
PI control |
|
Barrel Temperature Control Area |
3 Zone |
|

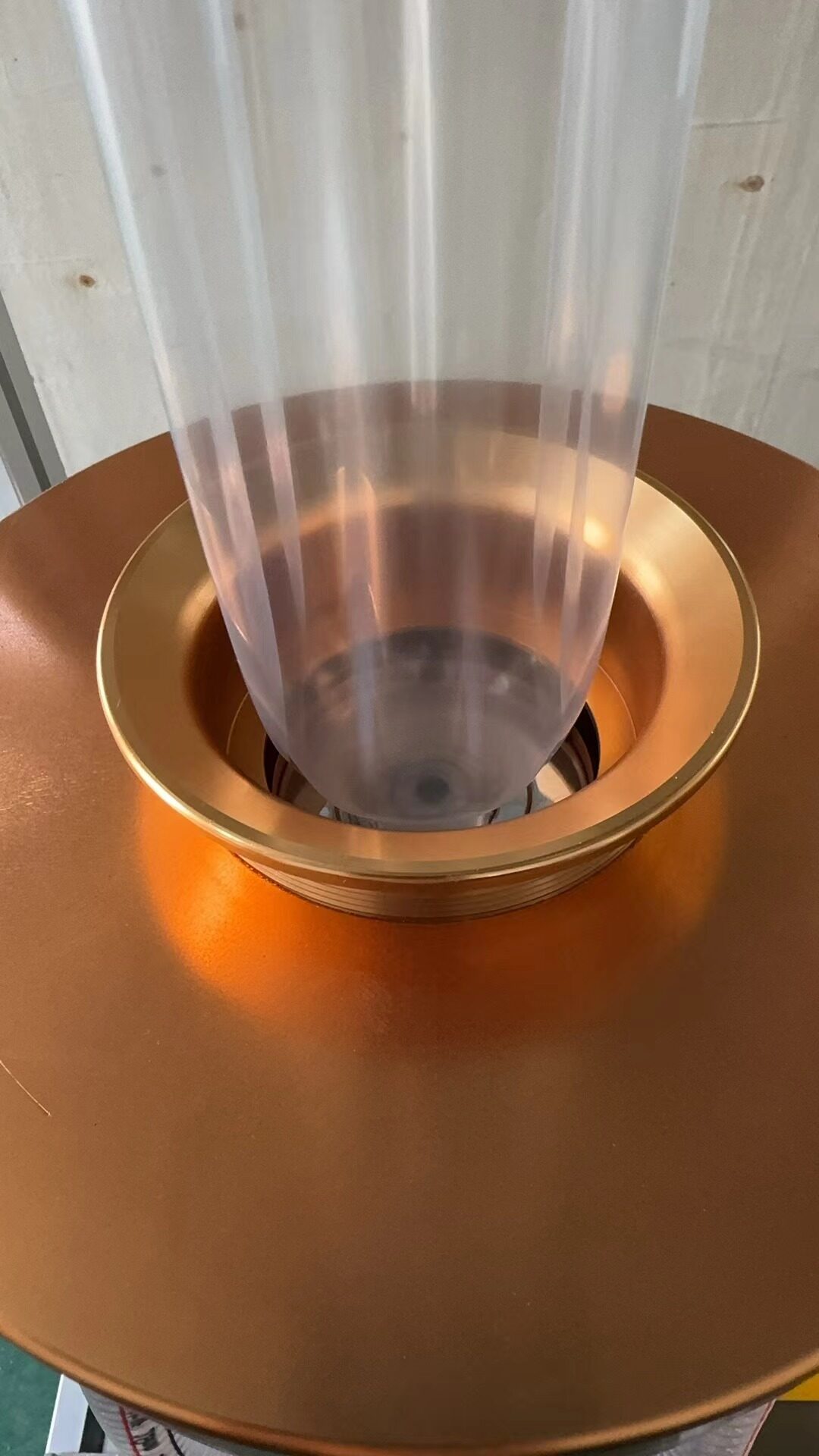

■Mould |
|
|
Blown Film Type |
Die up |
|
Die Caliber |
Φ30mm |
|
Mould Structure |
Spiral structure |
|
Runner Processing |
Internal and external electroplating-polishing treatment |
|
Heating Method |
Electric heating |
|
■Blowing Machine |
|
|
Blowing Width |
100–150mm |
|
Traction Roller Diameter |
Φ 85mm |
|
Traction Roller Length |
300mm |
|
Active Roller |
Chrome roller |
|
Passive Roller |
Anti-static roller |
|
Traction Roller Drive |
Independent drive |
|
Traction Motor |
JSCC (German brand) |
|
Frequency Converter |
JSCC (German brand) |
|
Traction Gearbox |
High-precision gearbox–JSCC(German brand) |
|
■Winding Machine |
|
|
Winding Method |
Friction winding |
|
Friction Roller |
Anti-static roller |
|
Winder Motor |
Inverter motor |
|
Motor Brand |
JSCC (German brand) |
|
Speed Mode |
Frequency conversion speed regulation–JSCC (German brand) |
|
|
|
|

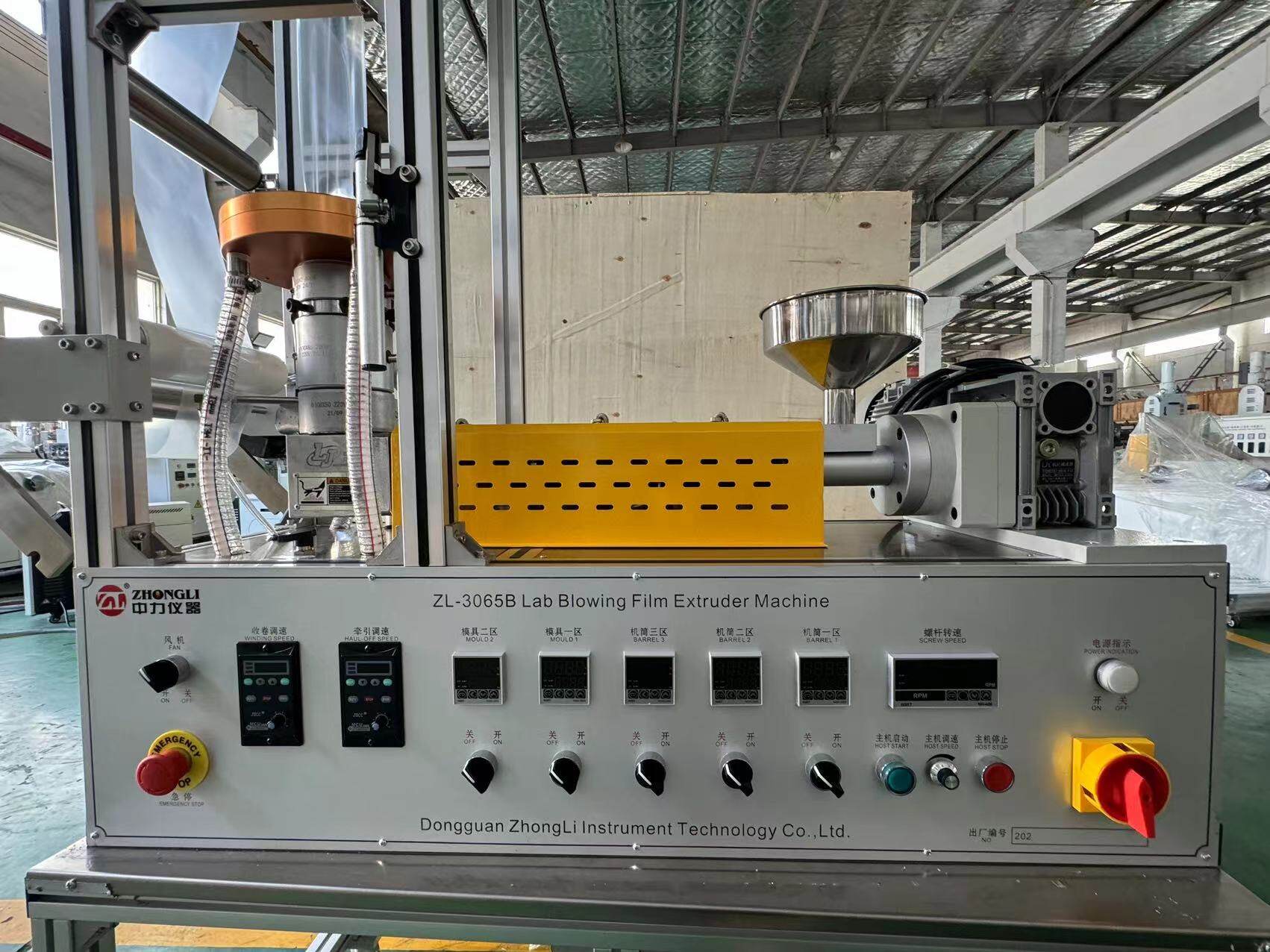

◆Centralized Control |
|
|
Way to Control |
Centralized control PLC+ screen |
|
Control Panel |
Siemens |
|
PLC |
Siemens |
|
SSR |
GUTOR |
|
Contactor |
Siemens |
|
Governor |
Servo Control |
