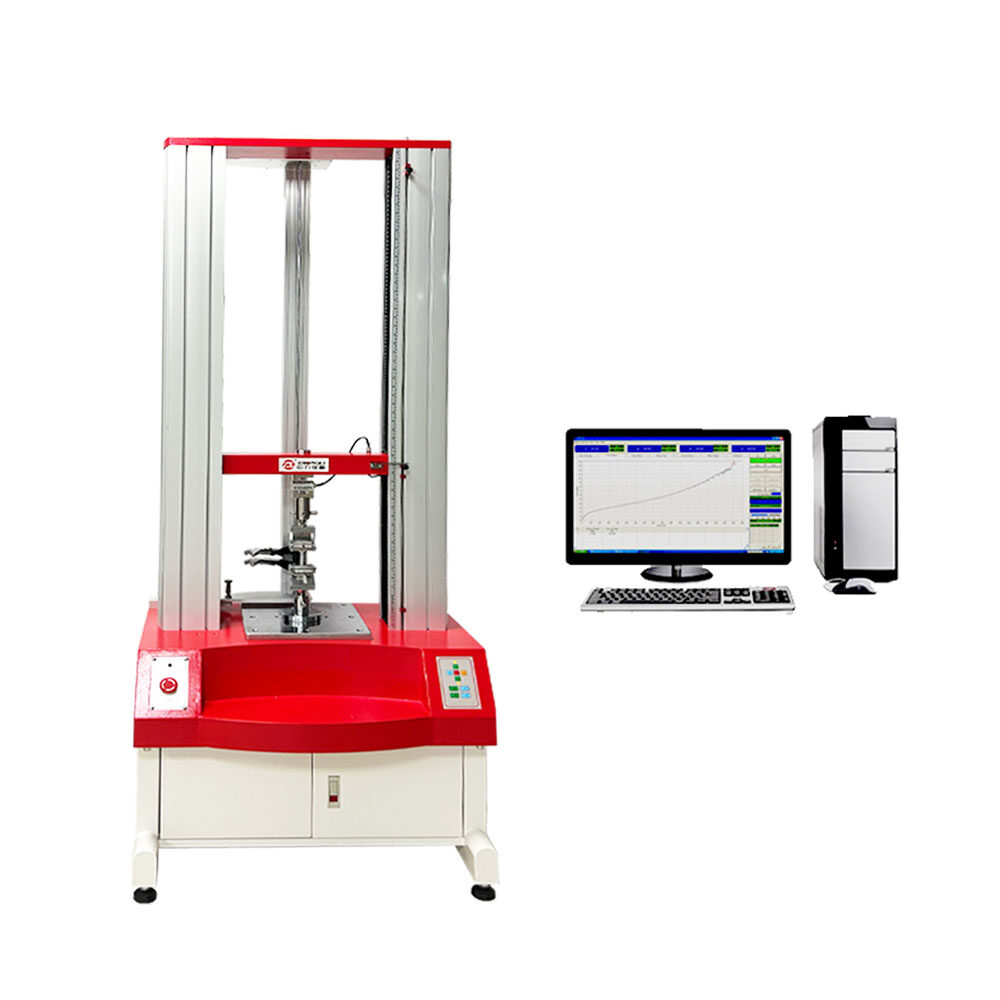

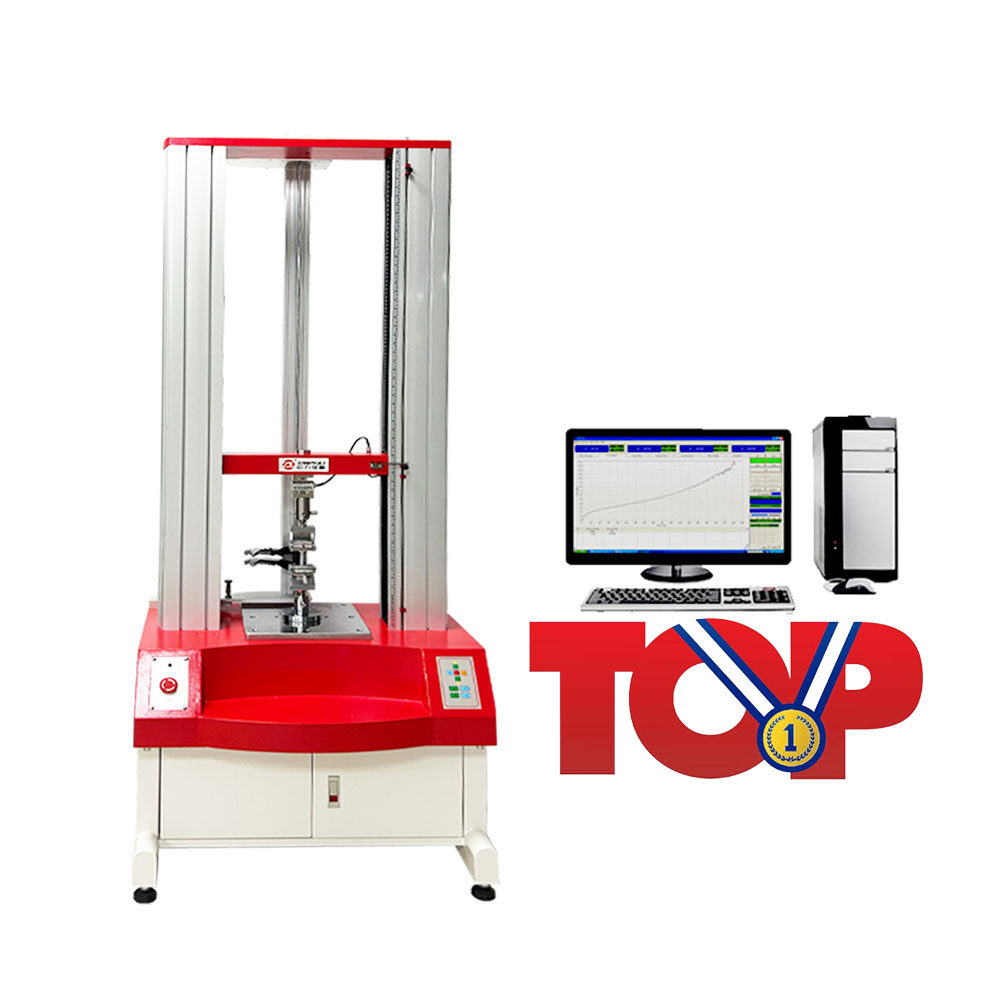

ZL-8001 Computer Servo Universal Material Testing Machine is a new type of material testing machine combined with electronic technology and mechanical transmission, it has a wide and accurate loading speed and force measurement range, the load, displacement measurement and control has a high precision and sensitivity, but also can be loaded at the same speed, the same speed displacement of automatic control test. With simple and convenient operation, it is especially suitable to be the testing instrument for controlling product quality on production line. The series models are mainly suitable for testing non-metal and metal materials with test load less than 10KN.The Main Function:It is mainly suitable for testing metal and non-metal materials, such as rubber, plastic, wire and cable, fiber optic cable, seat belt, safety belt, leather belt composite material, plastic profile, waterproof coil, steel pipe, copper material, profile, spring steel, Bearing steel, stainless steel (and other high-hardness steel), castings, steel plates, steel strips, and non-ferrous metal wires have tension, compression, bending, shearing, peeling, tearing, and two-point extensions in high-temperature environments (need to be ordered separately) Extensometer) and other tests. Main Feature:Imported photoelectric encoder is used for displacement measurement, the controller adopts embedded single-chip microcomputer structure, built-in powerful measurement and control software, which integrates measurement, control, calculation and storage functions. It has the function of automatically calculating stress, elongation (extensometer needs to be added), tensile strength and elastic modulus, and automatically counts the results; automatically records the force value or elongation of the maximum point, breaking point, and designated point; uses a computer for testing The process and test curves are dynamically displayed, and data processing is performed. After the test, the graph processing module can be used to zoom in on the curve for data re-analysis and editing, and the report can be printed. The product performance has reached the international advanced level.Application Industry:Widely used in metrological quality inspection; Clothing and footwear industry; Rubber and plastic; Metallurgical steel; Mechanical manufacturing; Electronic appliances; Automobile production; Textile chemical fiber; Wire and cable; Packaging materials and food; Instruments and meters; Medical devices; Civil nuclear energy; Civil aviation; Higher education institutions; Research and Experimental Institute; Commercial inspection, arbitration, and technical supervision departments; Building materials ceramics; Petrochemical industry; Other industries.Corresponding Standard :ASTM D638-98, ASTM D790-99, ASTM D695-96, ISO527-93, ISO178-93, ISO14125-1998E, ISO604, DIN53-504, DIN53-452.
Technical Parameters:
| Model | ZL-8001A |
| Maximum Load | Optional within 100N, 200N, 500N, 1KN, 2KN, 5KN, 10KN, 20KN |
| Accuracy Class | Level 0.5 |
| Effective Force Range | 0.4%～100% (Level 0.5) |
| Force
Measurement Accuracy |
Within ±1% of indicated value/Within ±0.5% of indicated value |
| Testing Machine
Resolution |
The maximum load is 1/200000, there is no division between inside and outside, and the resolution remains unchanged throughout the process |
| Load Cell | Basic configuration: one tension and pressure sensor (maximum load)
Extended configuration: multiple sensors can be added |
| Effective Test Width | 390mm (can be widened according to customer requirements) |
| Effective Stretching Space | 400, 500, 600mm, 800mm (can be increased according to customer requirements) |
| Test Speed Range | 0.01～500mm/min |
| Displacement Measurement Accuracy | Within ±0.5% of indicated value/Within ±0.2% of indicated value |
| Deformation Measurement System(Optional According to Requirements) | Extended configuration: large deformation: minimum gauge distance 10mm, deformation range: 800mm
Extended configuration: small deformation: gauge length 25mm, 50mm, 100mm; deformation range: 5mm, 10mm, 25mm |
| Deformation Measurement Accuracy | Within ±0.5% of the indicated value (large or small deformation can be selected according to customer requirements) |
| Test Bench Safety Device | Electronic limit protection |
| Test Bench Lifting Device | Fast/slow two speed automatic control, jogging possible |
| Bench Return Function | Manual or automatic two options, automatic or manual return to the initial position of the test at the highest speed after the test |
| Overload Protection | 10% more than the maximum load, the machine automatically protects |
| Fixture Configuration | A set of tensile fixtures |
| Host Size | 800*550*2210mm(L*W*H) |
| Power System | Taiwan TECO servo motor (Panasonic servo motor optional) + drive + Taiwan high precision ball screw |
| Power Supply | 220V, 50HZ |
| Power | 0.4KW (according to different force value requirements, different power motors are standard) |
| Host Weight | 300 kg(approximately) |
