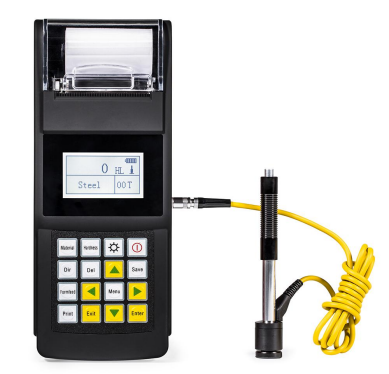

With built-in thermal printer
PC Software for data transmission, analysis and measurement reports printing
Direct calibrate on HL,HRC,HB, and freely switch to 6 different hardness scales
Test at any angle and direction, even upside down
Large LCD screen with back-light, showing all functions and parameters
Conversion to tensile strength (U.T.S)
Rechargeable Li-ion battery
Meet or exceed the standards ISO 16859
2. Measuring Materials
Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, nodular cast iron, cast aluminum alloy, copper zinc alloys (brass), an alloy of copper and tin (bronze), copper , forged steel
3.Technical Parameters
|
Model |
Leeb140 |
|
Measuring Range |
(170-960)HLD,(17.9-69.5)HRC,(19-683)HB,(80-1042)HV, (30 6- 102 6)HS, (13 5-101 7)HRB |
|
Hardness parameter |
HL, HRC,HRB, HS,HB,HV |
|
Accuracy |
±6HLD / ± 1.5HRC |
|
Display |
LCD with back-light |
|
Memory |
600 groups |
|
PC Connection |
Available |
|
Printer |
Build-in High-speed Thermal Printer(printer paper : 44.5±0.5mm) |
|
Battery |
Rechargeable Li-ion battery |
|
Operating Temperature |
-20C~+60C |
|
Dimensions |
230×86×46mm |
|
Impact Device Type |
D,DC,DL,D+15,G,C,E |
|
Weight |
400g |
|
Standard Configuration |
Main unit,Impact Device type D,Calibration block 1pc ,Power adapter,Cleaning brush,Small supporting ring,Operation manual,Certificate,paper of Printer. |
|
Optional Accessories |
Optional Impact Devices 、Shaped support ring 、Paper for printer |
