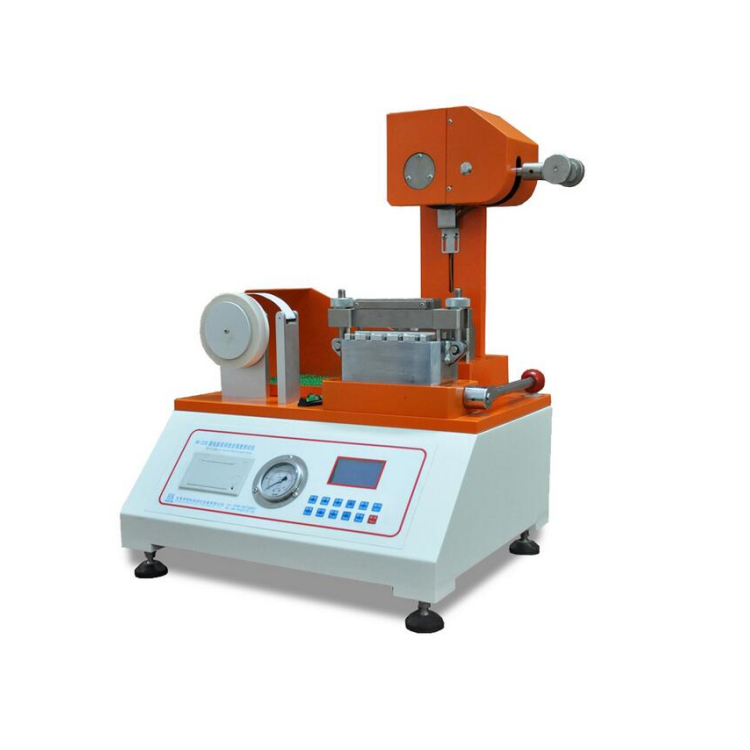

Do internal ply strength test of corrugated board–testing the Internal Bonding Strength of paperboard.Internal Ply bond Tester is designed according to TAPPI-UM403. It is applicable for testing the Internal Bonding Strength of various paper boards. Test principle: the paperboard sample is impact in certain angle and weight, the energy it has absorbed indicates the internal bonding strength. It could test five samples at a time. The test unit is optional among kg/cm, N/m, J.
Standard:
GB/T 26203 <Paper and board—Determination of internal bond strength(Scott type)>
TAPPI-UM403 T569pm-00 <Internal bond strength(Scott type)>
Technical Characteristics:
|
Sample Amount |
5 pcs |
|
Capacity |
0.25 / 0.5 kg/cm |
|
Mini Reading |
0.005 kg/cm |
|
Impact Angle |
90° |
|
Dimension |
70 × 34 × 60 cm |
|
Weight |
91 kg |
