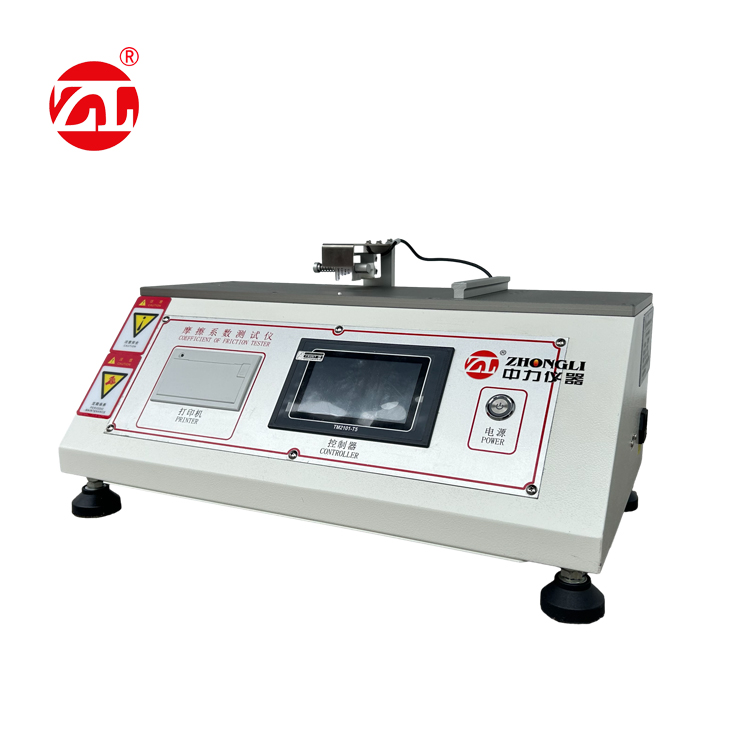

The friction coefficient meter is based on GB 10006 national standard and is suitable for measuring plastic film and sheet, rubber, paper, cardboard, woven bag, fabric style, metal material composite tape for communication cable, conveyor belt, wood, coating, brake pad, Static friction coefficient and dynamic friction coefficient when sliding materials such as wipers, shoe materials, and tires slide. By measuring the slippery nature of the material, it is possible to control the quality of the production process and to meet the product requirements. In addition, it can also be used for the measurement of the slip properties of daily necessities such as cosmetics and eye drops.
Standard:
GB 10006, GB/T 17200, GB/T22895, ISO 8295, ASTM D1894, TAPPI T816
Basic Application:
4.rubber is suitable for rubber static friction coefficient and dynamic friction coefficient test.
Technical parameters:
|
Force Measuring range |
0~3 N |
|
Measurement Accuracy |
0.001N |
|
Slider Stroke |
150 mm |
|
Slide Mass |
200g |
|
Test Speed |
100mm/min |
|
Test Conditions |
Standard test environment |
|
Host Size |
520 mm×330 mm×230mm (L×B×H) |
|
Electricity Source |
AC 220V±10% 50Hz |
|
Net Weight |
35Kg |
