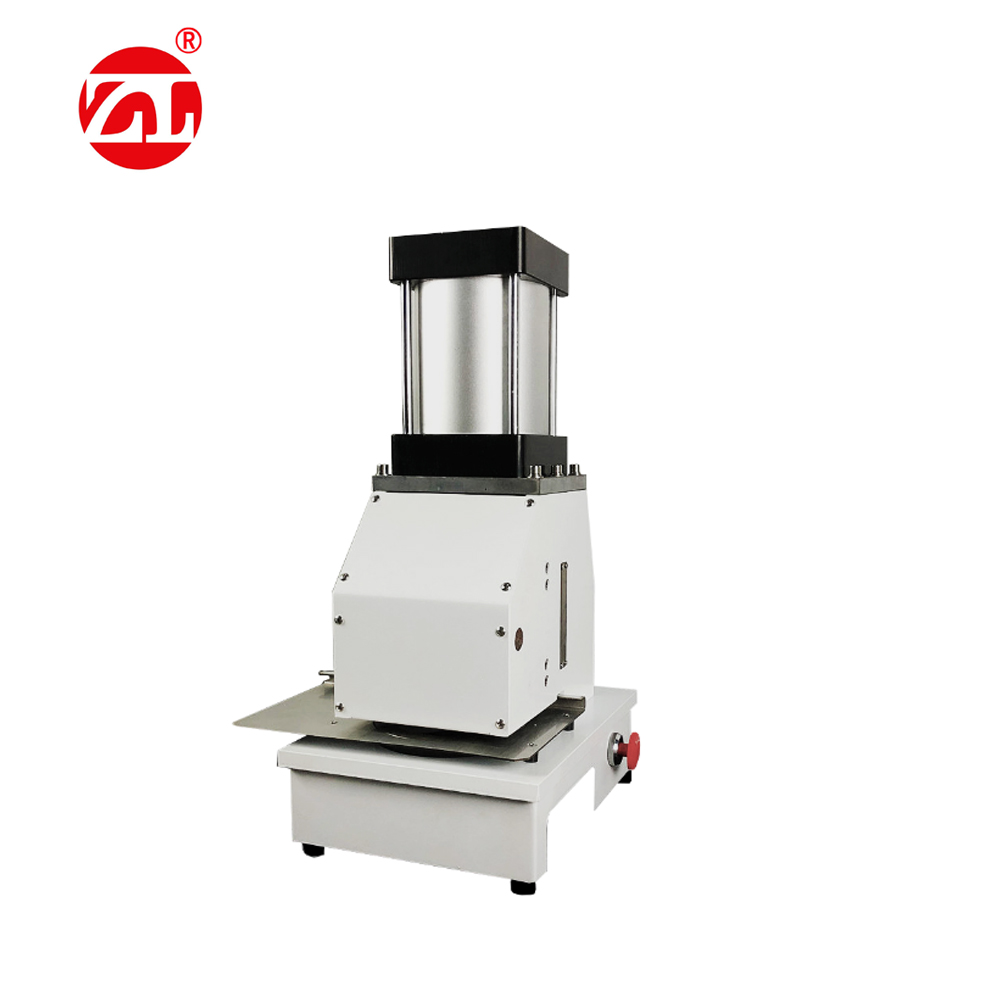

The Pneumatic Quantitative Sampler is a knife specially developed and produced for grammage testing sampling of high grammage and grey board samples. The sampling knife can be used in many different fields, including: quantitative sampling of cardboard, quantitative sampling of textiles, quantitative sampling of toilet paper, sanitary napkins and other hygienic products, sampling of rubber and plastic sheets, quantitative sampling of film, quantitative sampling of composite sheet raw materials such as flexible packaging. The sampling device can quickly and accurately cut the standard area of the sample, with a special quantitative tester (precision electronic balance) can be accurately and quickly determine the sample grams quantitatively, paper, packaging and other production enterprises and quality supervision and inspection and other industries and departments ideal auxiliary test tools.
Enforcement of Standards:
|
QB/T1671 |
General Technical Requirements for Punching and Cutting Apparatus for Physical Property Test of Paper and Cardboard |
|
GB/T451.2-2002 |
Determination of the Quantity of Paper and Paperboard |
|
ISO 536:1995 |
Paper and paperboard —– Determination of quantities |
Technical Parameters:
|
Sampling Area |
100cm² |
|
Sampling Error |
±0.35cm² |
|
Accuracy |
±0.2mm |
|
Parallelism |
≤0.05mm |
|
Sampling Thickness |
(0.-10.0)mm |
|
Operating Method |
Knob Pneumatic Pressurization |
|
Air Supply |
Vacuum Compressor Air Supply |
|
Dimension |
480mm*380*700mm(L*W*H) |
Scope of Application:
|
0-3mm paper sample |
Paper, cardboard, paperboard, color box, shoe box, etc. |
|
0-5mm Fiber material |
Fabrics, hygiene products, etc.. |
|
0-10mm sheet |
Corrugated cardboard, honeycomb cardboard, rubber, aluminum foil, leather, film, etc… |
