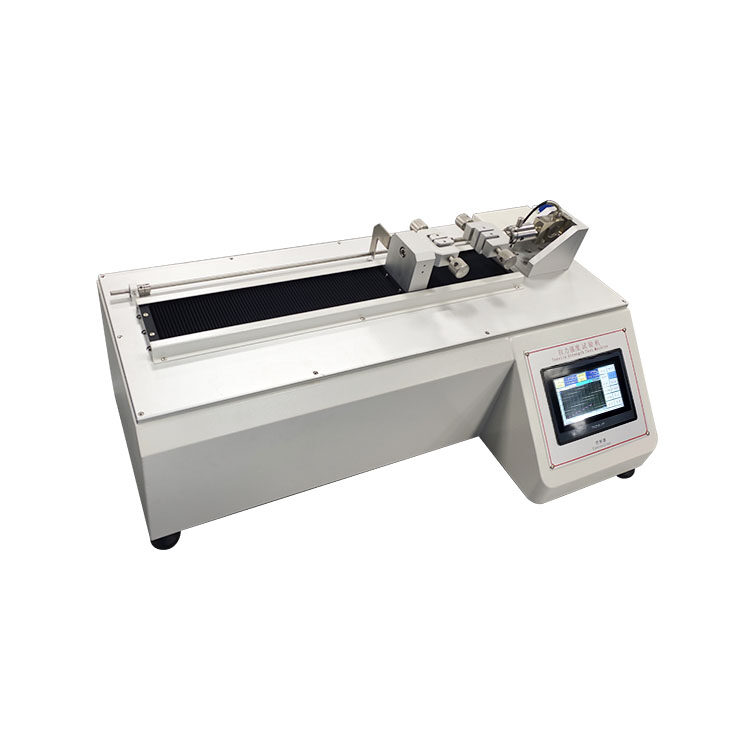

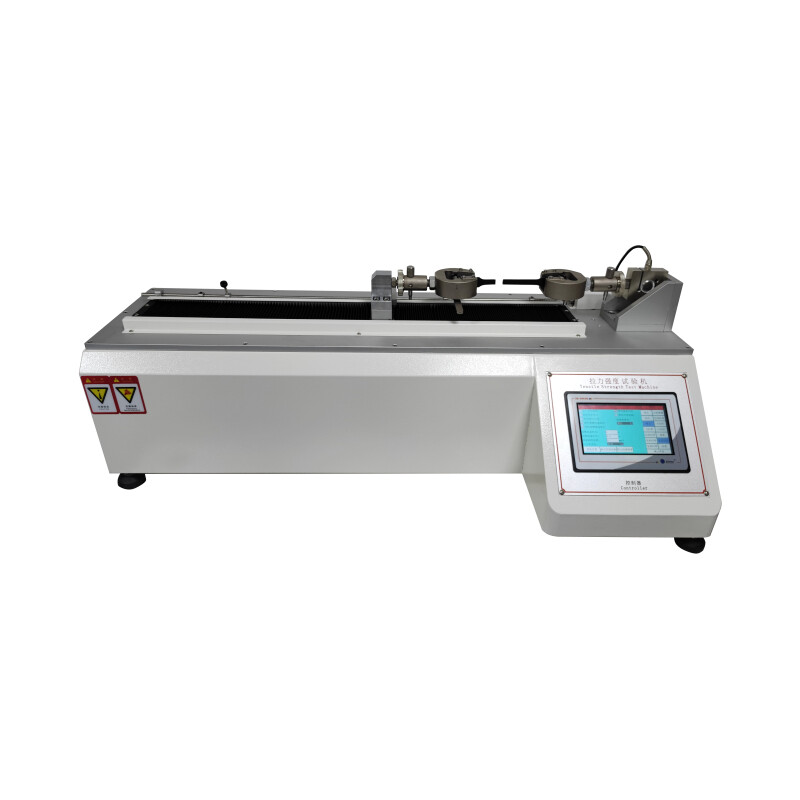

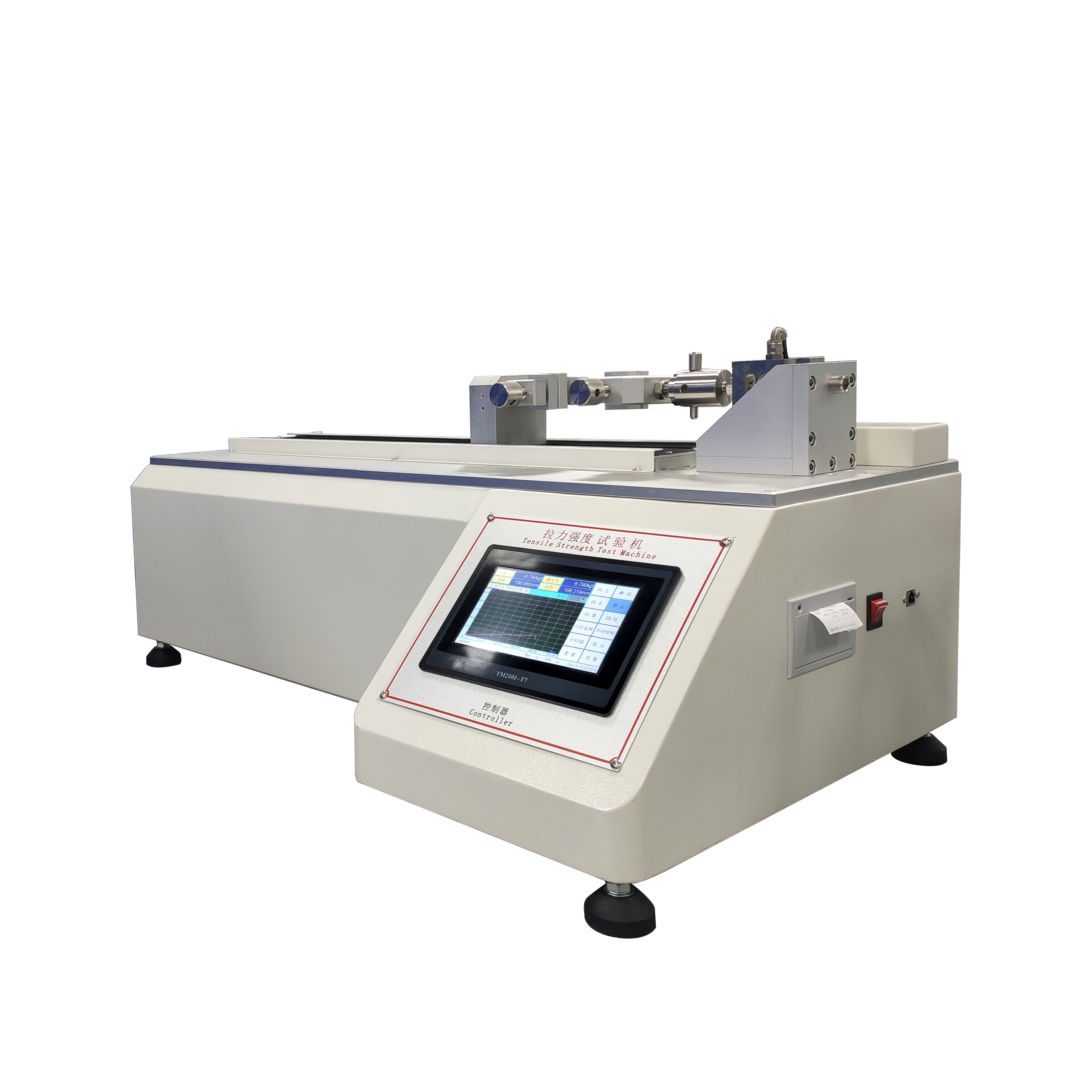

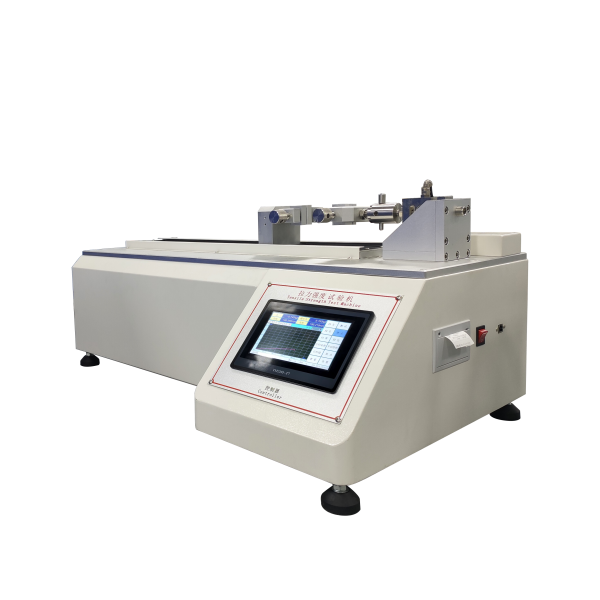

The Microcomputer-Controlled Horizontal Tensile Testing Machine adopts the characteristics of hydraulic force, computer automatic data collection, printing results, convenient operation, high test accuracy, and stable force. It can be used for stretching, tensile shearing, and tearing of metal and non-metal materials. And other mechanical performance tests, which can meet various test methods and standards such as ISO and GB. This equipment is widely used in the wire and cable industry and quality inspection institutions at all levels.
The Microcomputer-Controlled Horizontal Tensile Testing Machine adopts the characteristics of hydraulic force, computer automatic data collection, printing results, convenient operation, high test accuracy, and stable force. It can be used for stretching, tensile shearing, and tearing of metal and non-metal materials. And other mechanical performance tests, which can meet various test methods and standards such as ISO and GB. This equipment is widely used in the wire and cable industry and quality inspection institutions at all levels.
Technical Parameters:
|
Capacity Option |
100KG |
|
Measurement Accuracy |
±1% |
|
Resolution |
1/200000 |
|
Test Speed |
0～300 mm/min |
|
Effective Stroke |
600mm |
|
Test Space |
120 mm |
|
Units of Force |
kgf, gf, N, kN, lbf |
|
Stress Unit |
MPa, kPa, kgf/cm2, lbf/in2 |
|
Stop Mode |
Left and right limit safety setting, test piece breakpoint sensing |
|
Result Output |
Miniature printer |
|
Power |
Adjustable speed motor |
|
Optional |
Tension clamp (conventional) |
|
Machine Weight |
About 40 KG |
|
Power Supply |
1PH, AC220V, 50/60Hz |
