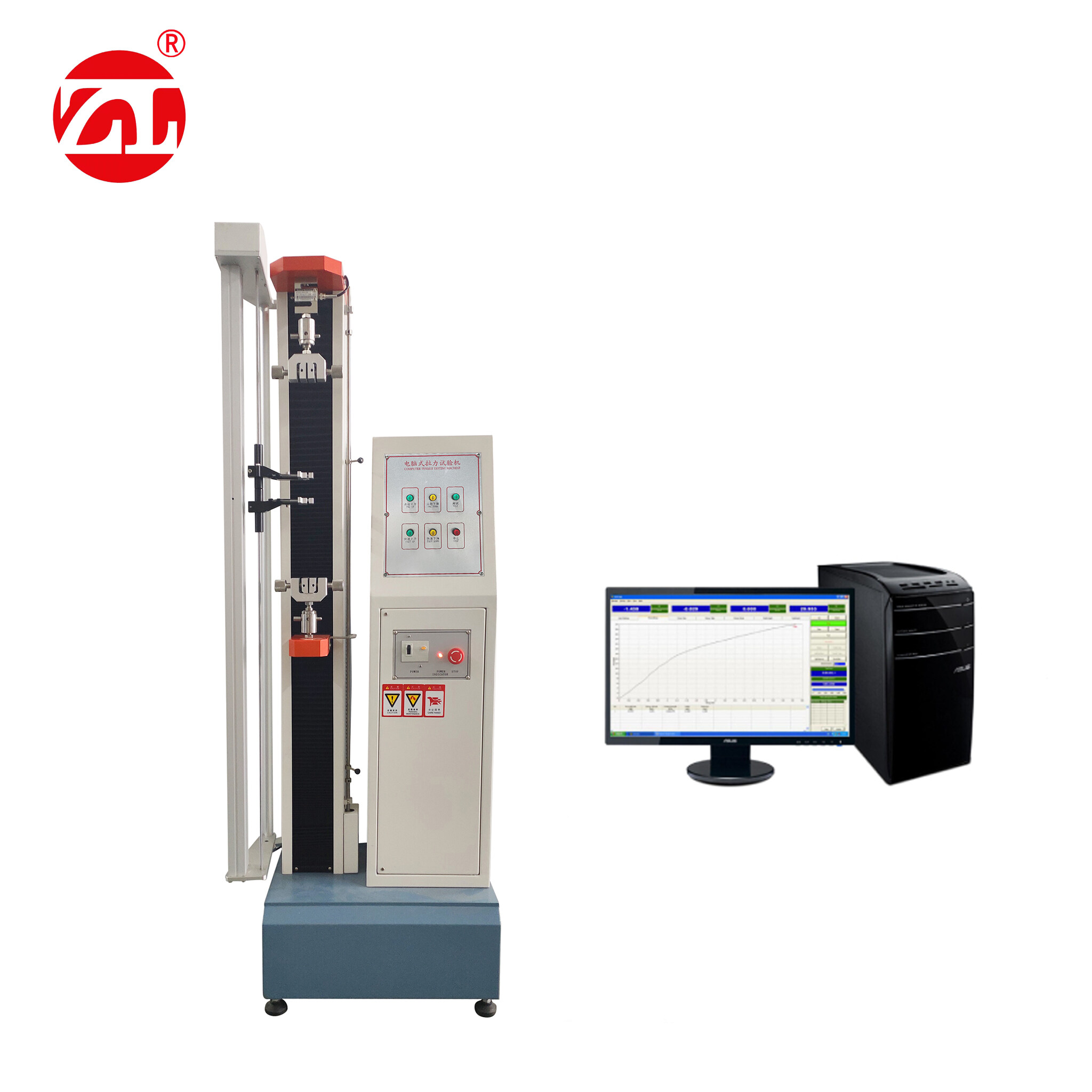

ZL-8003C Computer-type Economical Material Testing Machine (Large Deformation)

Equipment Overview:

ZL-8003 Series Computerized Tensile Testing Machine is a new type of material testing machine combining electronic technology and mechanical transmission. It has a wide and accurate loading speed and force measurement range, and has high precision in the measurement and control of load, deformation and displacement. and sensitivity. This series of models adopts a single-space structure, and the test space is in the lower space. It is mainly suitable for the test of metal and non-metal materials with a test load less than 5kN. It has stress, strain, and displacement control methods. Strength, flexural strength, compressive strength, modulus of elasticity, elongation at break, yield strength and other parameters.

The Main Function:

This machine is suitable for rubber, tire, hose, tape, shoe sole, plastic, film, acrylic, FRP, ABS, EVA, PU, aluminum-plastic tube, composite material, waterproof material, fiber, textile, wire and cable, paper, gold Testing and analysis of mechanical properties such as tension, compression, tearing, peeling (90 degrees and 180 degrees are acceptable) for flexible foils, tapes, wires, springs, wood, pharmaceutical packaging materials, tapes, etc.

Main Feature:

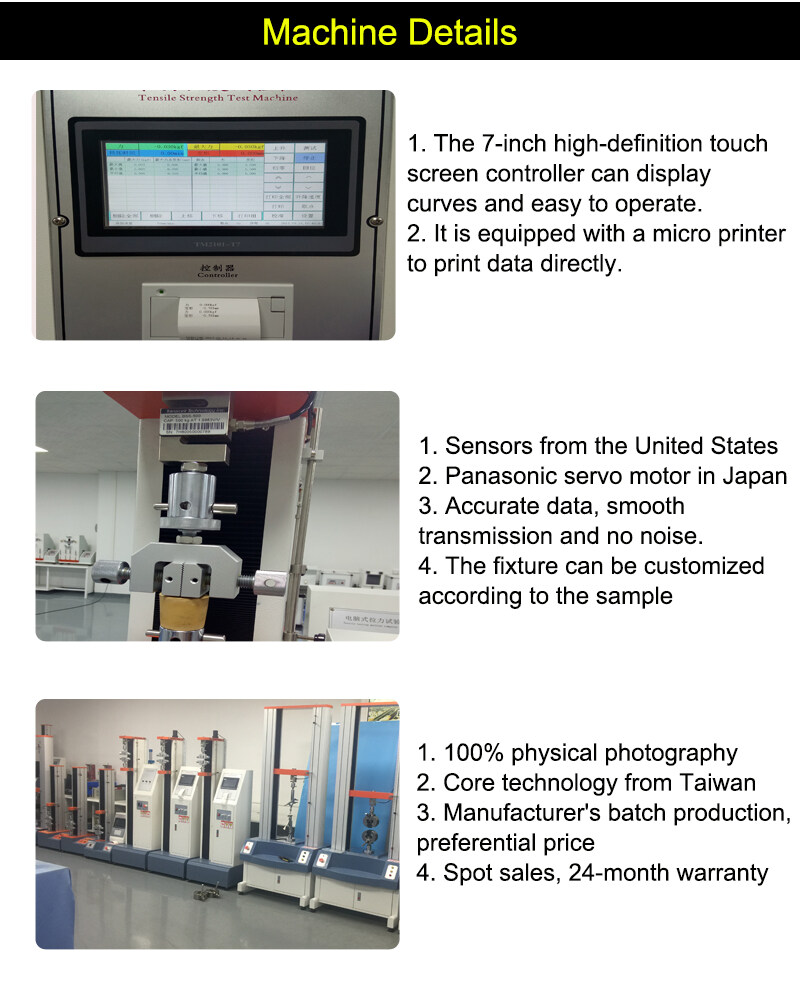

1. It is driven by Japanese Panasonic servo motor, and the transmission mechanism drives the beam to move up and down to realize the test loading process.
2. The whole control system has high cost performance and high reliability.
3. The whole test process is controlled by a microcomputer, and the load value, displacement value, deformation value, test speed and test curve are dynamically displayed in real time.
4. Microcomputer is used for data processing and analysis, and the test results can be automatically saved. After the test is over, the test curve can be recalled, and the test process can be reproduced through curve traversal, or curve comparison and curve amplification can be performed.
5. The test software under the Windows platform in Englishhas strong data and graphics processing functions, and can print out complete test reports and test curves in real time.
6. It has complete safety protection functions such as limit protection, overload protection, and emergency stop.

Standard:

ISO7500/1, ASTM D638, ASTM D412, JIS B7721, JIS B7733, EN 1002-3, BS 1610，ISO13997:1999，ISO139352，ASTM D2261

Application Industry:

Widely used in wire and cable, hardware, footwear, electronic appliances, packaging and printing, medical equipment, auto parts, textile and leather, clothing and footwear, rubber and plastic products, colleges and universities; scientific research laboratories; commodity inspection and arbitration, technical supervision departments, etc. It is the basic equipment for quality management and physical property testing

Technical Parameters:
