Main Functions:
Mainly applicable to metal and non-metallic materials testing, such as rubber, plastic, wire and cable, fiber optic cable, seat belts, insurance belts, leather belt composite materials, plastic profiles, waterproof coil, steel pipes, copper, profiles, spring steel, bearing steel, stainless steel (and other high hardness steel), castings, steel plates, steel strips, non-ferrous metal wire tensile, compression, bending, shear, peel, tear, two-point Elongation (need to be equipped with a separate extensometer) and other tests.
Main Functions:
Mainly applicable to metal and non-metallic materials testing, such as rubber, plastic, wire and cable, fiber optic cable, seat belts, insurance belts, leather belt composite materials, plastic profiles, waterproof coil, steel pipes, copper, profiles, spring steel, bearing steel, stainless steel (and other high hardness steel), castings, steel plates, steel strips, non-ferrous metal wire tensile, compression, bending, shear, peel, tear, two-point Elongation (need to be equipped with a separate extensometer) and other tests.

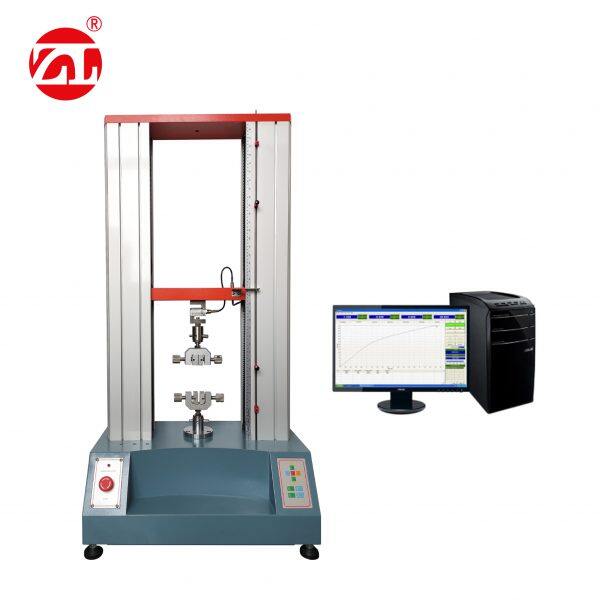

This machine adopts electromechanical integration design, mainly composed of force sensor, transmitter, microprocessor, load driving mechanism, computer and color inkjet printer. It has a wide and accurate loading speed and force range, and has high accuracy and sensitivity for load and displacement measurement and control, and can also carry out automatic control tests of equal speed loading and equal speed displacement. The floor model, modeling and painting are fully considered the modern industrial design, ergonomics and related principles.
Main Features:
Adopt imported photoelectric encoder for displacement measurement, the controller adopts embedded single-chip microcomputer structure, built-in powerful measurement and control software, integrating measurement, control, calculation and storage functions. It has the functions of automatic calculation of stress, elongation (need to be equipped with extensometer), tensile strength and modulus of elasticity, and automatic statistical results; automatic recording of the maximum point, breaking point, force value or elongation of the specified point; using computer for dynamic display of test process and test curve, and data processing, and after the test, the data can be analyzed and edited again through the graphic processing module to enlarge the curve, and can print reports. The performance of the product has reached the international advanced level.
Corresponding Standard :
ASTM D638-98, ASTM D790-99, ASTM D695-96, ISO527-93, ISO178-93, ISO14125-1998E, ISO604, DIN53-504, DIN53-452.
Technical Parameters:
|
Maximum Load |
200,500,1000,2000KG |
|
Accuracy Class |
0.5 level |
|
Effective Force Measuring Range |
0.4%～100％ (0.5 grade) |
|
Force Measurement Accuracy |
Within ±0.5% of the displayed value |
|
Resolution of Tester |
The maximum load 1/200000, no grade inside and outside, and constant resolution throughout |
|
Load Cell |
Basic configuration: pull, pressure sensor (maximum load) a Extended configuration: can be equipped with multiple sensors |
|
Effective Test Width |
380mm (can be widened according to customers’ requirements) |
|
Effective Tensile Space |
600mm (can increase the height according to customer’s requirement) |
|
Test Speed Range |
50～300mm/min |
|
Displacement Measurement Accuracy |
Within ±0.5% of the displayed value |
|
Deformation Measurement Accuracy |
Within ±0.5% of the measured value (large or small deformation can be selected according to customer requirements) |
|
Test Bench Safety Device |
Electronic limit protection |
|
Test Bench Lifting Device |
Fast/slow two speed automatic control, can be point to move |
|
Test Bench Return Function |
Manual or automatic two options, automatic or manual after the test to return to the highest speed test initial position |
|
Overload Protection |
The machine will automatically protect if the maximum load is exceeded by 10%. |
|
Fixture Configuration |
One set of tensile jig |
|
Main Machine Size |
1200*530*1800mm(L*W*H) |
|
Power System |
Servo motor + high precision T-screw |
|
Power Supply |
220V/50HZ, |
|
Power |
0.75KW (according to different force value demand, standard with different power motor) |
|
Main Machine Weight |
300 KG(Approx.) |
