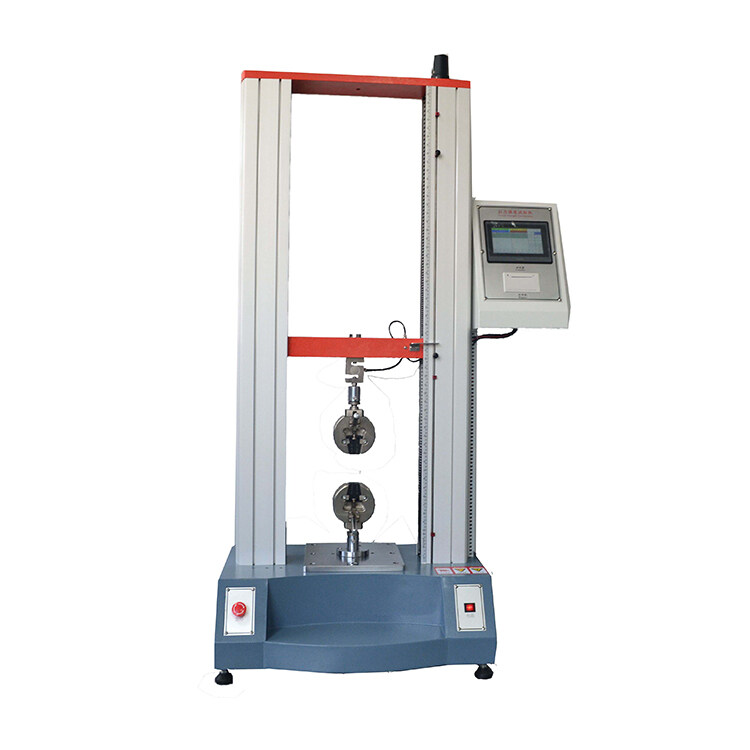

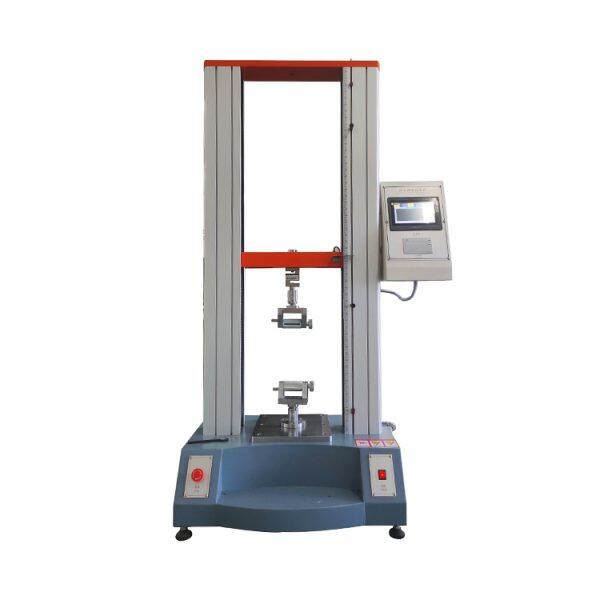

ZL-8002A Touch Screen Double Column Tensile Testing Machine is suitable for rubber, plastic, plastic film, and other flexible materials with large deformation. Tests such as tensile, tearing, adhesive strength, and peeling (90 degrees and 180 degrees) can be completed.
*Using AC frequency conversion motor to drive precision ball screw drive, stable operation and low noise;
*Digital display force value, maximum force value, displacement, test speed stepless adjustable;
*A high-precision encoder is used to measure the displacement, the resolution of the force value is as high as 1/25000, the test accuracy is high, the measurement range is wide, and the operation is convenient;
* It has the functions of automatic shutdown, overcurrent, overvoltage and overload protection when the test is broken;
* Equipped with a micro-printer to print test data in real time.
Corresponding Standard :
ASTM D638-98, ASTM D790-99, ASTM D695-96, ISO527-93, ISO178-93, ISO14125-1998E, ISO604, DIN53-504, DIN53-452.
Technical Parameter:
|
Capacity Selection |
200, 500, 1000, 2000kg |
|
Force Measurement Accuracy |
Within ±0.5% of indicated value |
|
Display Method |
LCD screen English display, film button |
|
Unit Switching |
Kg, lb, N |
|
Data Sampling Frequency |
200times/sec |
|
Testing Machine Resolution |
The maximum load is 1/±25000 yards, there is no division between inside and outside, and the resolution remains the same throughout the process |
|
Load Cell |
Basic configuration: tension and pressure sensors (maximum load) |
|
Effective Test Width |
380mm |
|
Effective Stretching Space |
800mm |
|
Test Speed Range |
50-300mm/min stepless speed regulation and 5-speed constant speed (special test speed can also be customized according to customer needs) |
|
Displacement Measurement Accuracy |
Within ±0.5% of indicated value |
|
Breakpoint Ratio Setting |
0～99%, the user can set the appropriate break stop time according to different materials |
|
Test Bench Safety Device |
Up and down stroke limiting device |
|
Overload Protection |
10% more than the maximum load, the machine automatically protects |
|
Fixture Configuration |
A set of tensile fixtures |
|
Host Size |
800×550×1800mm |
|
Host Weight |
about 180 kg |
|
Power Supply |
220V/50Hz |
