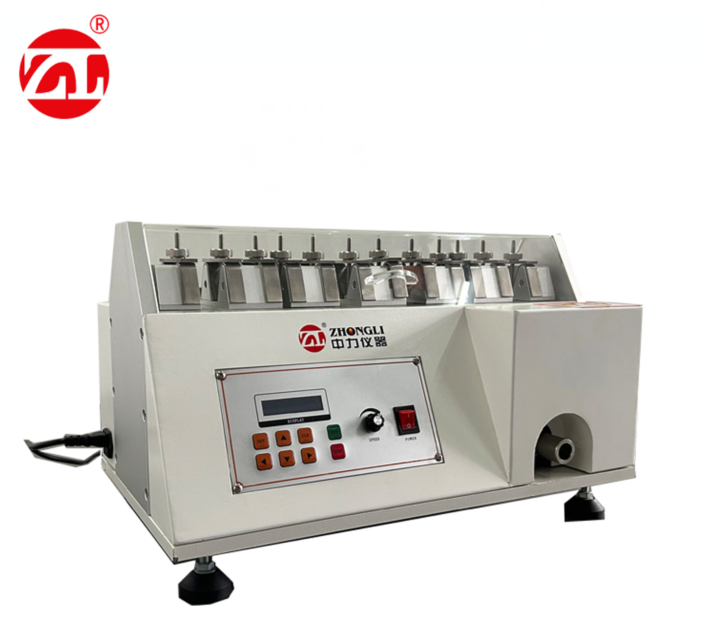

Install the test sample on the VAMP bending resistance testing machine, conduct bending tests at a certain frequency using the VAMP bending resistance testing machine, and observe the changes on the surface of the test piece to evaluate the bending resistance performance of the test material based on whether there are wrinkles, fractures, and their severity.
Corresponding Standard :
EN ISO230344-2012、SATRA TM25、ISO 4643、GB/T20991-2007
Applicable Industry：
Applied to test leather performance in shoes, clothing, luggage handbag industry, research laboratories; commodity inspection, arbitration and technical supervision departments.
Technical Parameters:
|
Model |
ZL-7028 |
|
Clamping angle of Fixture |
(40±1) ° V-shaped |
|
Telescopic Stroke |
(19±1.5)mm |
|
Specimen Size |
(64±1)mm*(64±1)mm. |
|
Number of Test Pieces |
12 Specimen |
|
Counter |
LCD, 0 ~ 999,999 |
|
Motor |
DC brushless motor 120W |
|
Volume |
70 × 36 × 37 cm |
|
Weight |
64kg |
|
Power |
1 ∮, AC220V, 2A |
