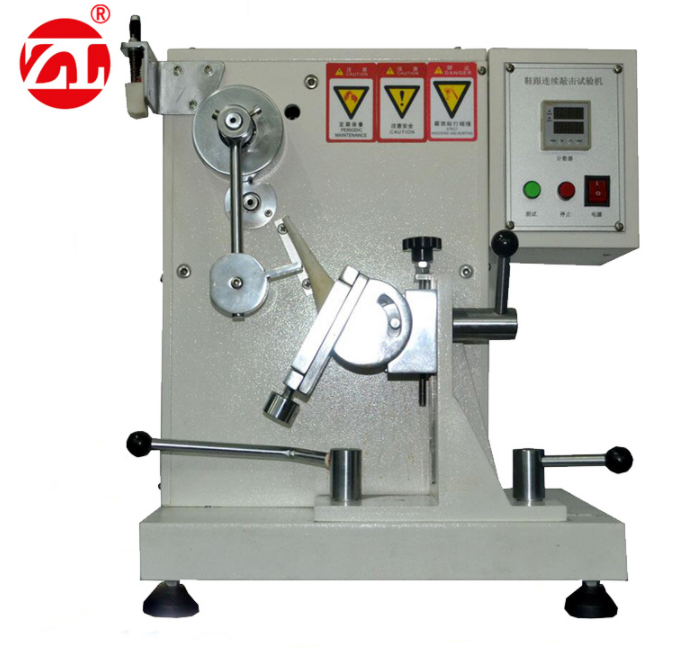

ZL-7027 heel continuous impact tester is for female high-heeled and middle-heeled shoes, the red edge continuous impact heel in a certain energy and frequency until the heel cracking, Through it to know the withstand impact index of heel, and determine the durable quality of heel.
The heel tip is upward and the heel shaft is fixed upright on the fixed tray of the heel fatigue tester. The impact head of the pendulum of the heel fatigue tester impacts the heel vertically with a constant energy (0.68J) until it fails or reaches the desired number of impacts.
Summary:
ZL-7027 heel continuous impact tester is for female high-heeled and middle-heeled shoes, the red edge continuous impact heel in a certain energy and frequency until the heel cracking, Through it to know the withstand impact index of heel, and determine the durable quality of heel.
The heel tip is upward and the heel shaft is fixed upright on the fixed tray of the heel fatigue tester. The impact head of the pendulum of the heel fatigue tester impacts the heel vertically with a constant energy (0.68J) until it fails or reaches the desired number of impacts.
Corresponding Standard:
QB/T2864、EN ISO19956、BS-5131、SATRA TM21
Applicable Industry:
Female high-heel and middle-heel.
Technical Parameters:
|
Model |
ZL-7027 |
|
Pendulum rod diameter |
(12.5 ± 1.0) mm |
|
Impact Energy |
(0.68 ± 0.02) mm |
|
Distance between the center of the pendulum drive shaft and the center of the impact hammer |
(152 ± 2) mm |
|
Impact Hammer |
diameter (57 ± 1) mm, thickness (20 ± 1) mm |
|
Impact head |
Length (35 ± 2) mm, width (20 ± 1) mm, radius of rounded tip (3 ± 0.5) mm, thickness (6 ± 0.5) mm |
|
Distance from the top of the impact head to the center of the impact hammer |
(63.5 ± 2) mm |
|
Test speed |
(60 ± 1) r/min |
|
Counter |
LCD display 0-9999, 9999 |
|
Weight |
Approximately 68 kg |
|
Power |
1ζ, AC220V, 3A |
