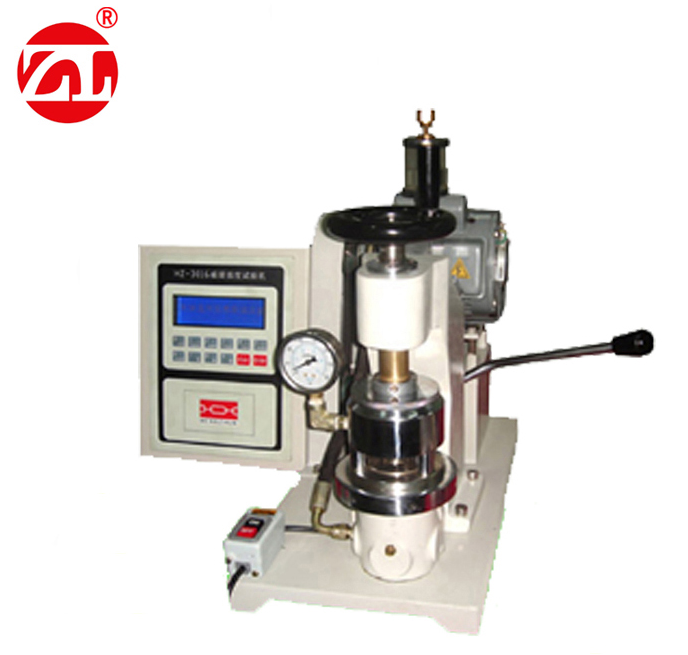

This machine is applied to test anti-rupture strength for raw paper, corrugated cardboard, leather, cloth and synthetic leather. Record the value of force,automatically keep the maximum value of fracture strength, decomposition degrees has improved 100 times than the needle display type. This equipment is important to control the quality product.
Corresponding Standard :
operative standard：ISO-2759，GB-6545，JIS-P8112，L1018，ASTM-D2210，TAPPI-T403
Applicable Industry：
It applied to test the anti-breaking strength of boxes for packaging, which of electronics, electrical appliances, wires, hardware, bicycles, handbags, food, footwear, clothing, furniture.etc.
Main Technical Parameters:
|
Sensing Mode |
pressure converter |
|
Indication Mode |
digital A / D value into the rate of 100 times / S, high test accuracy, 5 groups of memory test results |
|
Operation Mode |
Manual |
|
Display |
LCD with blue screen |
|
Breakage Resistance Measurement Range |
250 ~ 5600kpa |
|
Clamp Ring Material |
stainless steel |
|
Clamp Ring Aperture |
upper ring high pressure type 31.50 mm; lower ring high pressure type 31.50 mm |
|
Hydraulic Oil |
Glycerin 85%, distilled water 15% |
|
Low-Pressure-Type |
0-3,0-6,0-12,0-15 kg/cm2 (optional two kinds) |
|
Capacity Selection |
High pressure type 0~100kg/cm2 (0.1kg/cm2) |
|
Pressurization Speed |
High-pressure type 170±10ml/min |
|
Accuracy |
±0.5% |
|
Horsepower |
Anti-vibration motor 1/4HP |
|
Data |
can print out the results |
|
Volume |
43*53*52cm |
|
Weight |
64kg |
|
Power |
shockproof motor 1/4HP |
|
Electricity |
1∮,AC220V |
|
Standard Configuration: |
1 piece of rubber membrane, 1 wrench, 10 calibration sheets, 1 bottle of glycerin |
