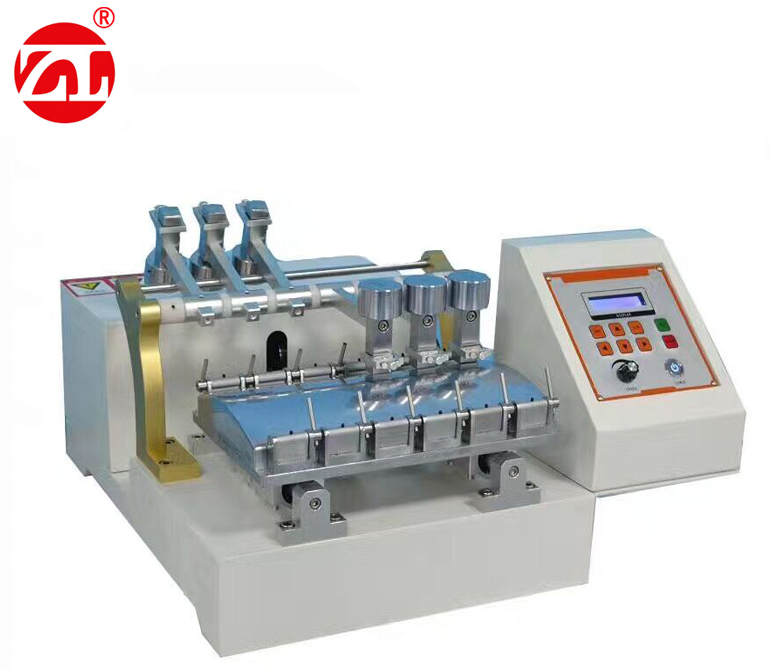

Using white cotton which is dry or wet rolled the surface of abrasive hammer in this machine, after a certain number of action in rubbing colored specimen, and then assess the dyeing fastness by comparing with the gray standard. Can also be used testing the friction of organic solvent .
Corresponding Standard :
JIS-L0801，0823，0849，1006，1084，K6328，P8136
Applicable Industry：
Applied to test leather performance in shoes, clothing, luggage handbag industry, research laboratories; commodity inspection, arbitration and technical supervision departments.
Technical Parameters:
|
Model |
ZL-7023 |
|
Testing Piece |
22 × 3cm |
|
White Cotton |
5 × 5cm |
|
Friction Speed |
30cpm |
|
Abrasive Hammer Load |
200g |
|
Auxiliary Load |
300g |
|
Abrasive Hammer Size |
2 × 2cm, 45 ~ 50mm (R) or 6 station |
|
White Cotton Contaminated Area |
about 1cm2 |
|
Counter |
LCD0 ~ 999,999 |
|
Dimensions |
56 × 55 × 34cm |
|
Weight |
57kg |
|
Power |
1 ∮, AC, 3A 220V |
