Equipment Summary：

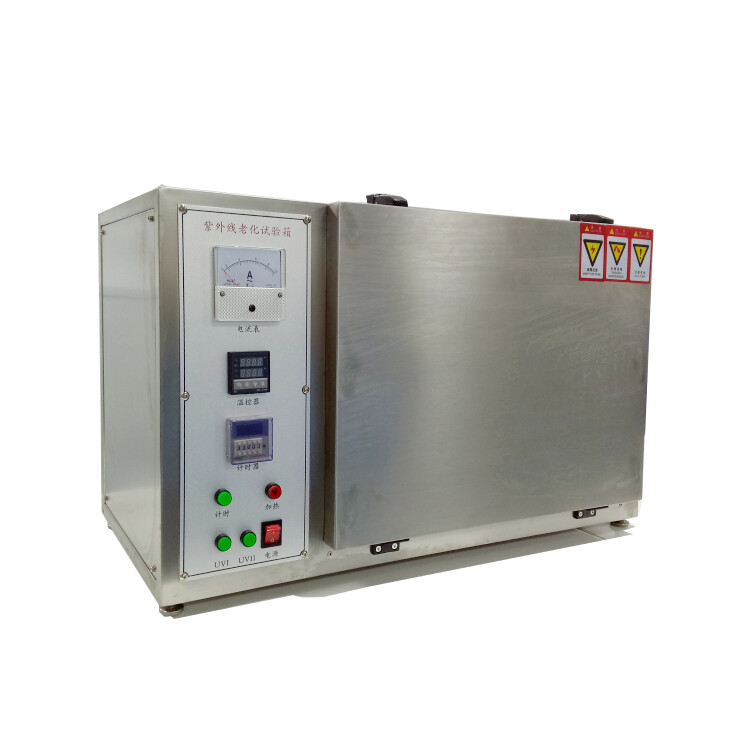

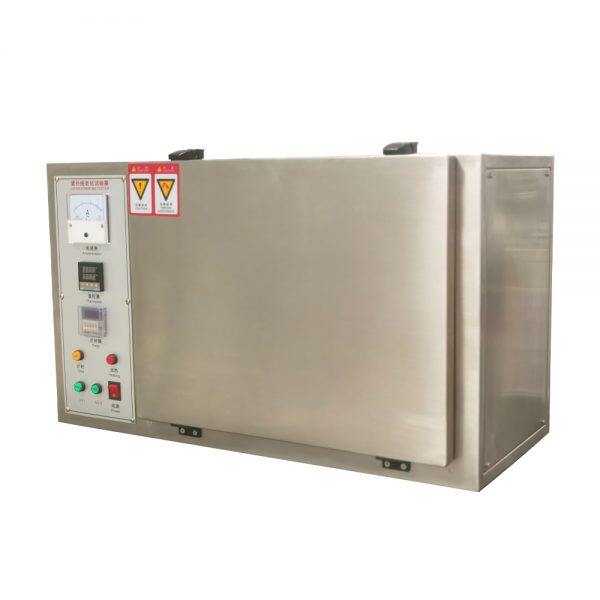

The UV aging chamber uses a fluorescent UV lamp to simulate the effect of sunlight, and the tested material is placed in the light at a certain temperature for testing. It can reproduce the weathering effect of months or years outdoors in a matter of days or weeks. Unique maintenance-free structure design, more convenient to use, more energy efficient.
Equipment Summary：
The UV aging chamber uses a fluorescent UV lamp to simulate the effect of sunlight, and the tested material is placed in the light at a certain temperature for testing. It can reproduce the weathering effect of months or years outdoors in a matter of days or weeks. Unique maintenance-free structure design, more convenient to use, more energy efficient.
Main Technical Parameters:
Fully applicable to Samsung cell phone shell UV aging test, using Japan’s SANKYO production of UV/B313 lamp
|
Box Material |
All stainless steel production |
|
Chamber Size |
W 400 × D320 × H350 (mm) |
|
External Dimensions |
680 × 350 × 435 (mm) |
|
Use of Light Source |
15WUV-B ultraviolet two (Japan SANKYO) |
|
Temperature Range |
RT ~ 60 ℃ |
|
Temperature Control Mode |
PID |
|
Center Distance Between The Lamp |
150mm |
|
Sample Holder |
Can be lifted, that is, the distance between the lamp and the sample adjustable |
|
Function selection |
Including continuous and cyclic selection, choose the cycle function when the light and dark time adjustable |
|
Timing Device |
Maximum timing 9999H; with power failure hold function, continue to work after the call. |
