Equipment Summary:
It is suitable for scientific research institutions, ultra-low temperature experiments of special materials, electronic industry, chemical industry, military industry, university experiments, biological engineering, ocean-going fisheries, etc.

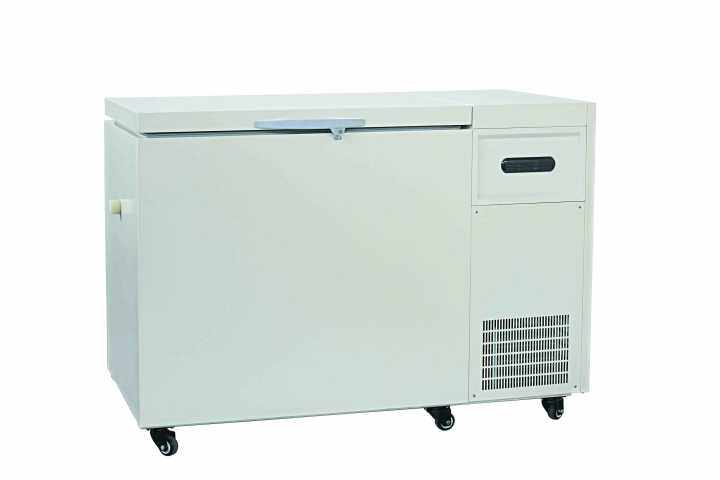

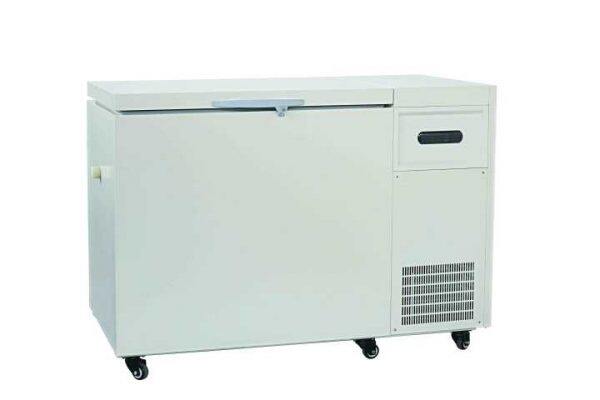

Yongjia -86℃ low-temperature storage box can be used to preserve viruses, germs, red blood cells, white blood cells, skin, bones, bacteria, semen, biological products, ocean-going products, low-temperature test of electronic devices, etc.
Features:
★ Temperature Control:
Microcomputer digital control, temperature digital display, the adjustment unit is 0.1 ℃;
Box temperature adjustable: -40 ℃ ~ -86 ℃
Can be set to open the machine temperature difference;
High and low temperature alarm function, the alarm temperature can be set on demand.
★ Safety System:
With a sound alarm system, a buzzer sound and light flashing alarm function;
Can achieve high and low temperature alarm, sensor failure alarm and other functions;
Multiple protection function (password protection, frequent start protection, sensor failure when the cooling system remains running.)
★ Refrigeration System:
Thick foam layer, the door double seal design, effective protection of the temperature inside the box;
Optimized self – cascading refrigeration systems, imported compressors, cooling capacity strong and efficient;
Reasonable evaporator design, to ensure the most efficient flow of refrigerant, the box temperature uniformity is good;
Unique fluorine-free environmentally friendly mixed refrigerant, 100% chlorine-free;
Single compressor system, fewer components, low failure rate, low energy consumption;
Using the German EBM quiet fan, stable and lasting performance, low noise.
★ Design:
Food grade stainless steel liner, never rust, safe and secure;
Heavy duty casters design, easy to move;
Safety door lock design, to prevent free to open;
Box pressure balance design, both test hole function, easy to use;
LED temperature display, easy to observe, clear and intuitive;
Suitable for 10 ℃ ~ 30 ℃ environment;
Optional installation of digital temperature recorder, to facilitate the special circumstances of recording and storage of performance data, with USB interface, if necessary, can be connected to the U disk for data copy analysis;
Wide voltage band design, suitable for 187V ~ 242V voltage
★ Parameter:
Model |
Out-Dimension (mm) |
In-Dimension (mm) |
Power Supply (V/Hz) |
Power (W) |
Tempe (℃) |
Climate Type |
Effective Volume(L) |
NW (Kg) |
||||
W |
D |
H |
W |
D |
H |
|||||||
ZL-86-W56 |
600 |
675 |
920 |
400 |
395 |
360 |
220/50 |
300 |
-15~-86 |
N |
56 |
70 |
ZL-86-W116 |
900 |
745 |
920 |
700 |
465 |
360 |
220/50 |
450 |
-15~-86 |
N |
116 |
86 |
ZL-86-W120 |
1270 |
775 |
965 |
540 |
395 |
560 |
220/50 |
450 |
-15~-86
|
N |
120 |
108 |
ZL-86-W216 |
1150 |
745 |
860 |
960 |
465 |
570 |
220/50 |
550 |
-15~-86
|
N |
216 |
120 |
ZL-86-W256 |
1510 |
880 |
1095 |
780 |
495 |
660 |
220/50 |
700 |
-15~-86 |
N |
256 |
220 |
ZL-86-W316 |
1530 |
745 |
860 |
1330 |
465 |
570 |
220/50 |
700 |
-15~-86 |
N |
316 |
250 |
