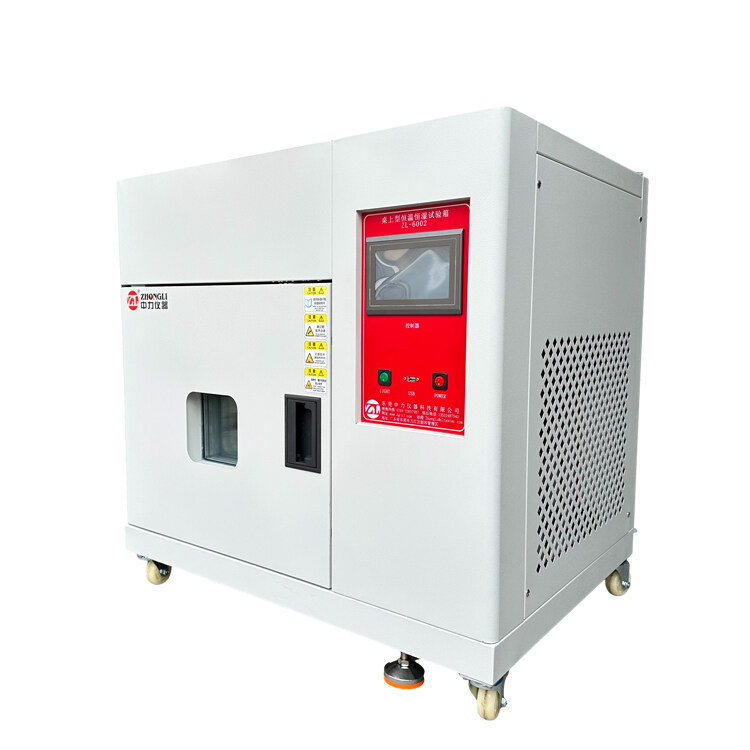

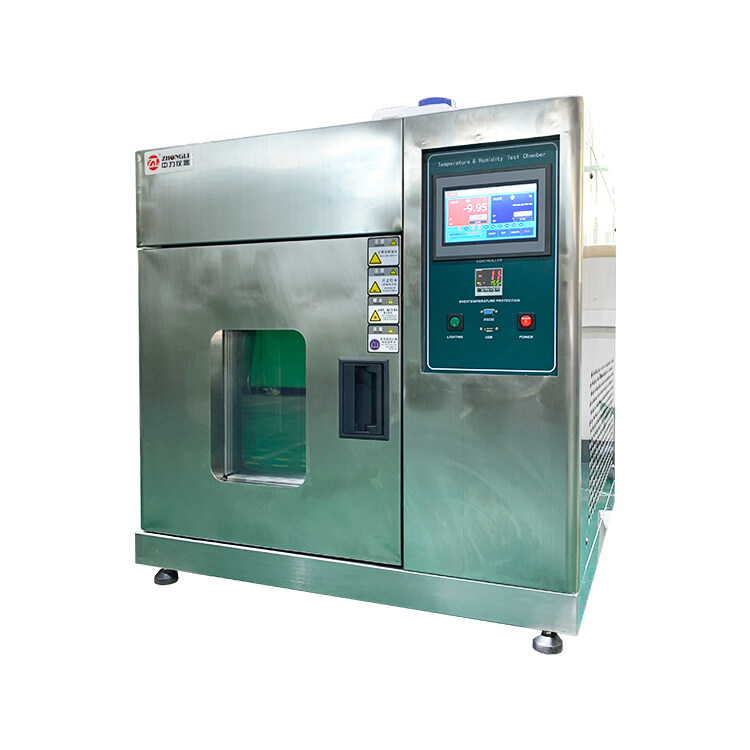

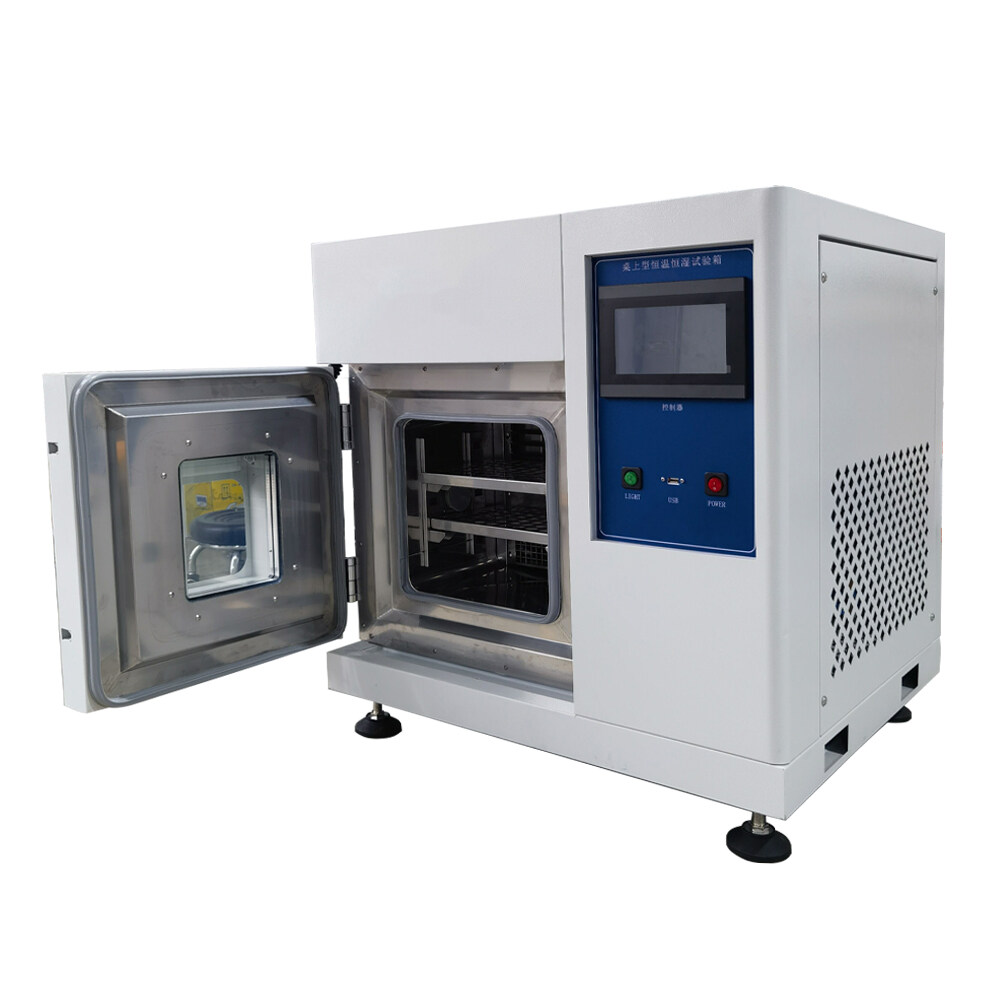

ZL-6002 Desktop Temperature And Humidity Testing Chamber

Equipment Summary:

Our company focuses on development and production of constant temperature and humidity testing machine, The machine specifically testing the materials in resistance of heat, cold, dry and moisture. Constant temperature and humidity testing machine is small size and not take up space.

Equipment Characteristics:

1.Perfect Design: the arc shape and surface coating processing, high body appearance, and USES the plane has no reaction, easy to operate, safe and reliable.

2.Bright and Large Observation Window: three layers of vacuum window and philips energy-saving fluorescent lamps, window without wiper mist, keep clear observation of the effect of the sample (s) to observe the situation.

3.Humidification System Pipeline And Control Circuit Separation: humidification system pipeline and power supply, controller, PCB separation, avoid affected circuit by pipeline leakage, improve security.

4.Advanced Refrigeration And Control System: closed compressor imported from Europe and US, import environmental protection refrigerant, the world famous brand refrigeration devices, original installation import LCD touch screen controller, friendly interface, easy operation.

5.Control Method And Characteristics: balance temperature and humidity control system (BTHC), P.I.D. way to control SSR, so that the system of heating and humidification is equal to the amount of heat and humidity loss, so it can be long-term stable use.

6.Small size, large use space, suitable for experimental use

7.Special design, the machine can overlap, does not occupy space.

8.expandable, BIAS, recorder.

9.Special air supply circulation design, temperature and humidity distribution is good.

10.The whole system is well protected by safety and power failure memory.

11.With time sequence contact, can cooperate with dynamic and measurement test

Corresponding Standard：

1.GB11158  High-Temperature Technical Condition

2.GB10589-89  Low-Temperature Technical Condition

3.GB10592-89  High-Low-Temperature Technical Condition

4.GB/T10586-89  Humidity Technical Condition

5.GB/T2423.1-2001  Low-Temperature Testing Method

6.GB/T2423.2-2001  High-Temperature Testing Method

7.GB/T2423.3-93  Humidity And Heat Testing Method

8.GB/T2423.4-93  Method Of Humidity And Heat Alternating

9.GB/T2423.22-2001  Temperature Testing Method

10.IEC60068-2-1.1990  Low-Temperature Testing Method

11.IEC60068-2-2.1974  High-Temperature Testing Method

12.GJB150.3  High-Temperature Test

13.GJB150.4  Low-Temperature Test

14.GJB150.9  Humidity Test

Applicable Industries:

Applied to test the products quality, such as electronic, plastic products, electrical appliances, instruments, food, vehicles, metals, chemicals, building materials, aerospace, medical care … and so on.

Technical Parameter:
