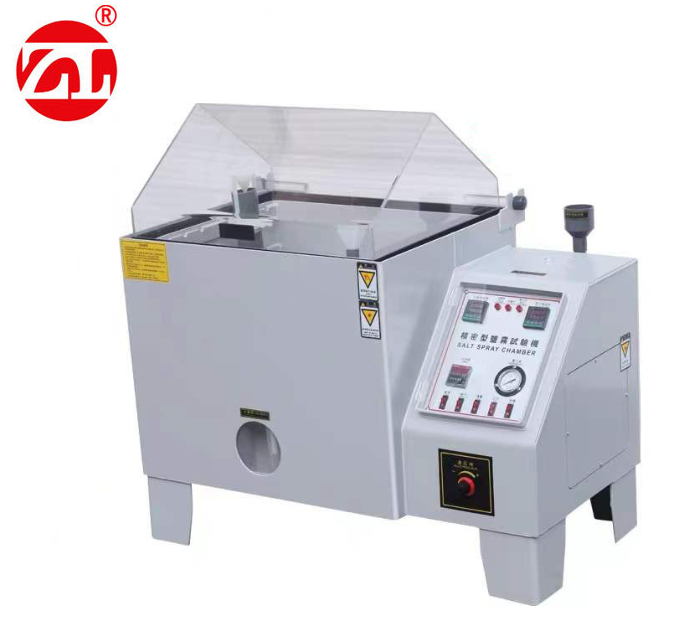

ZL-6001B Salt Spray Testing Machine (Button Operation)

Equipment Summary:

Salt spray testing machine used to test the corrosive resistance of products whose the surface was treated with paint, electroplating, inorganic and organic film, anode handling, anti-rust oil,etc.



Corresponding Standard :

1.GB/T 2423.17-1993  salt spray test

2.GB/T 2423.18-2000  salt spray test

3.GB/T 10125-1997  salt spray test

4.ASTM.B117-97  salt spray test

5.JIS H8502  salt spray test

6.IEC68-2-11  salt spray test

7.IEC68-2-52 1996  salt spray test

8.GB.10587-89  salt spray test

9.CNS.4158   salt spray test

10.CNS.4159 CASS  Accelerated acetic acid copper salt spray test

11..GB/T 12967.3-91 CASS  Accelerated acetic acid copper salt spray test



Technical Parameters:

Model	ZL–6001 (108L)	ZL–6001 (270L)	ZL–6001 (600L)
Inside Box Size(CM)	60x45x40	90x60x50	120x100x50
Outside Box Size(CM)	107x60x118	141x88x128	190x110x140
Testing Room Temperature	Salt test (NSS ACSS)35℃±1℃/ Corrosion Test (CASS)50℃±1℃
Pressure Barrel Temperature	Salt test (NSS ACSS)47℃±1℃/ Corrosion Test (CASS)63℃±1℃
Brine Temperature	35℃±1℃ 50℃±1℃
Testing Room Capacity	108L	270L	600L
Brine Tank Capacity	15L	25L	40L
Salt Concentration	The concentration of sodium chloride 5% or the 5% concentration of sodium chloride add 0.26g per liter of copper chloride (CuCl2 2H2O)
Air Pressure	1.00±0.01kgf/cm2
Spray Volume	1.0~2.0ml/80cm2/h (working at least 16 hours, and then take the average)
Testing Room Relative Humidity	85% above
PH	6.5~7.2 3.0~3.2
Spray Form	Programmable spray (Including continuous and intermittent spray)
Power	AC220V1Φ10A	AC220V1Φ15A	AC220V1Φ20A



Detailed Configurations as Follows:

1.Machine Material:

(A) testing room using PVC polyvinyl chloride plate (from Taiwan), acid-resisting and alkali-resisting, cleaning easier.

(B) cover of testing room using acrylic panels (imported organic glass), the thickness is 5mm.

(C) reagents added bottles attached with water gauge, cleaning easy and not easy to break.

(D) saturated air barrels is made of SUS # 304 stainless steel.

(E) testing room to adopt indexing frame, can be arbitrarily adjust the angle, Surrounded by fog and placed more piece .



2.According To CNS JIS ASTM GB2423.19 Specifications, Can be Set Constant Temperature To Control

Salt Spray Test	NSS, ACSS
1. testing room	35 ℃ ± 1 ℃
2.saturated air barrels	47 ℃ ± 1 ℃



Anti-Corrosion Test	CASS (copper acetate)
1.testing room	50 ℃ ± 1 ℃
2.saturated air barrels	63 ℃ ± 1 ℃



3.Air Supply System: air pressure 1Kg/cm2 Two-stage adjustments (coarse / fine-tuning).

(A) the first paragraph for the rough adjustment 2-2.5Kg/cm2, the second paragraph to fine-tune 1Kg/cm2.

(B) Testing configuration is switch connector designed for SO2.



4.Spray Form:

(A) Using Bo Nute principle to draw brine and then saline spray, atomization uniform, non-blocking and crystallization, so that ensure continuous spraying.

  (B) Nozzle: The nozzle is made of special glass, adjust spray volume and spray angle.

  (C) spray volume: Adjustable 1 ~ 2ml (80cm2/hr) (average of 16-hour volume).



5.Heating Devices:

By direct heating, warming up faster and reduction of standby time, when the temperature arrives automatically switch ON / OFF, make temperature accuracy, low power consumption (heating tube is made of titanium alloy).



6.The Control System:

(A) testing room temperature controller is the digital micro-computer products 0-99.9 ℃, liquid     crystal digital display with PID automatic calculation, the control error is ± 0.3 ℃ (YANG MING6802) 1 pcs.

(B) saturated air barrels controller 0 ~ 99.9 ℃, liquid crystal digital display with PID automatic calculation, the control error is ± 0.3 ℃ (YANG MING6802) 1 pcs.

(C) safe temperature controller of heat expansion of the liquid tank 30 ~ 110 ℃ (Italy) 1 pcs.

(D) safe temperature controller of expansion of the saturated air barrel : 30 ~ 110 ℃ (Italy) 1 pcs.

(E) digital time controller 9.9s ~ 9990hr (Taiwan) 1 pcs.

(F) timer 0 ~ 9999hr (Taiwan Anliang) 1 pcs.

(G) buckle switch, continuous buckling 20000 times.

(H) 60 type, 90 type for manual flip, 120, 160, 200 type for the pneumatic cylinde automatic opening and closing.

(J) pressure gauge, (Taiwan B card).

(K) fixture bleaker (YANG MING).

(L) electromagnetic valve; (KSD).

(M) regulating valve (YIHUA).

(N) bleaker (Omron).



7.Add Water Systems:

Using automatic water replenishment system, automatic replenishment when the water level is too low.



8.Safe Protective Device:

(A) low water level, automatically cut off power supply.

(B) over-temperature, automatic cut off the power supply.

(C) attached to the safe warning light device.
