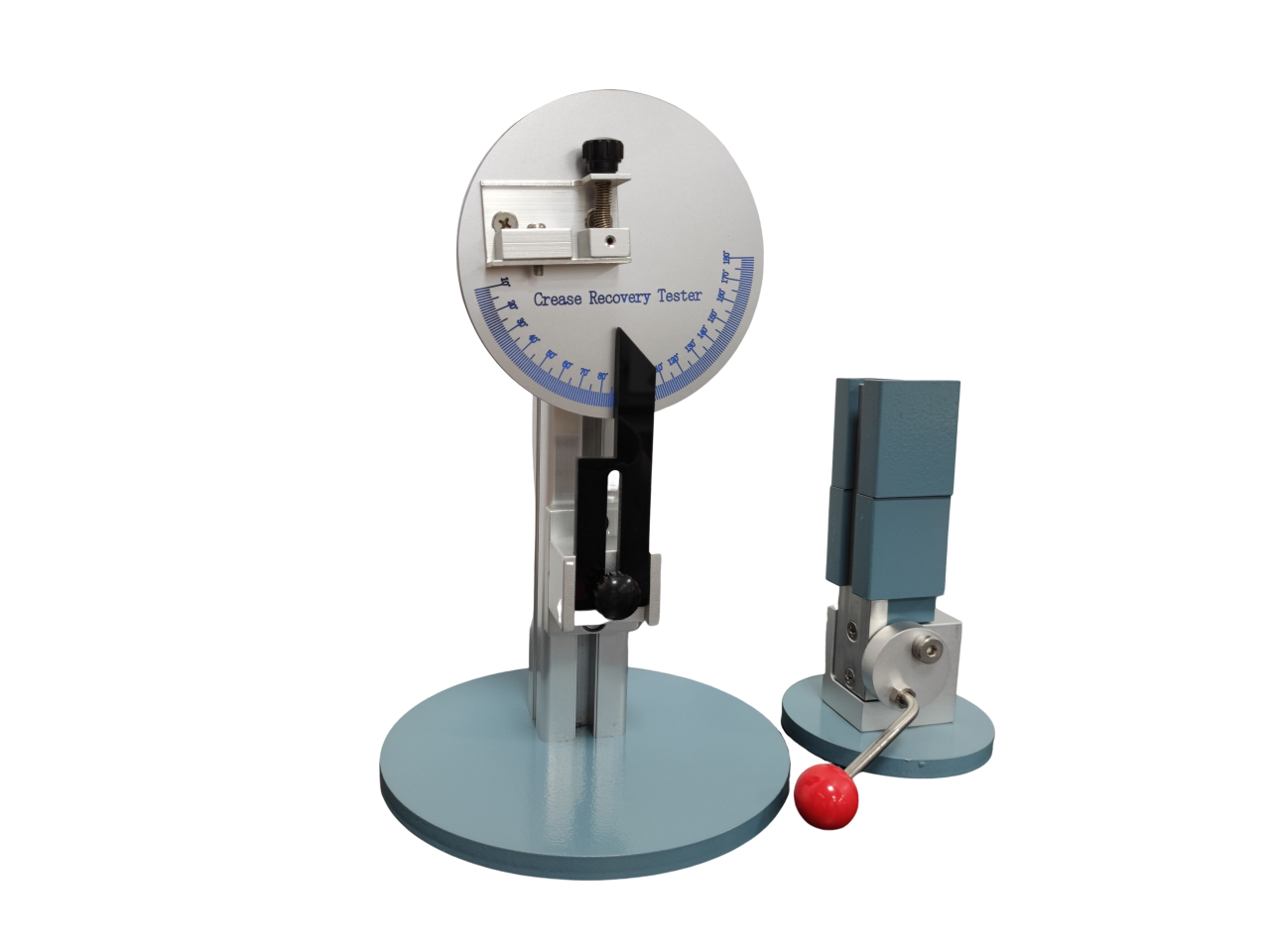

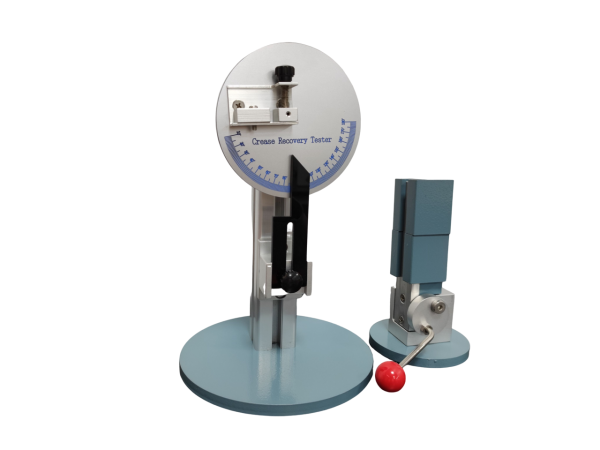

The wrinkle recovery performance tester and load device can detect the recovery of the fabric. According to the specific test method (BS, ISO, AATCC), after the fabric is pressed under a certain load device for a certain time, the fabric is released and transferred to the sample. The clip allows the fabric to freely recover and record the recovery angle.
The instrument determines the recovery properties of the sample against horizontal creases by measuring the wrinkle recovery angle, and is particularly useful for fabric types that are prone to creases, such as cellulose and other woven fabrics.
Technical Parameters:
|
Weight |
10 N |
|
Dial |
180° |
|
Dimensions |
170 × 170 × 360 mm (L × W × H) |
Meeting Standards:
AATCC 66, ISO 2313, BS EN 22313, M&S P22, GB/T 3819a
