Used for fiber fineness measurement and testing of blended fiber blend content. And can observe the cross-sectional shape of hollow fibers and special-shaped fibers. The longitudinal and cross-sectional microscopic images of the fibers are collected through a digital camera. With the intelligent assistance of the software, the longitudinal diameter data of the fibers can be quickly tested, and it has functions such as fiber type labeling, statistical analysis, EXCEL output, and electronic reports.
Standards Compliant:
GB/T 16988 Determination of content of mixtures of special animal fibers and sheep wool
FZ/T 01101 Textiles – Determination of fiber content – Physical method
FZ/T 30003 Quantitative analysis method for linen and cotton blended products Microscopic projection method
FZ/T 32004 Linen and cotton blended natural yarn
SN/T 0756 Quantitative analysis method for imported and exported linen and cotton blended products – Microscope projector method
SN/T 1062 Inspection method for cashmere content in imported and exported yarns and fabrics
AATCC 20A Fiber Analysis: Quantitative
Instrument Characteristics:
Obtain longitudinal microscopic images of fibers through a digital camera. With the intelligent assistance of the software, operators can quickly and easily implement functions such as longitudinal fiber diameter testing, fiber type identification, and statistical report generation.
Provides accurate ruler calibration function, fully ensuring the accuracy of fineness test data.
Provides professional automatic image analysis and fiber diameter prompt functions, making fiber diameter testing extremely easy.
During longitudinal testing, industry standard conversion function is provided for non-circular cross-section fibers.
Fiber fineness test results and type classification data can be automatically generated into professional data reports or exported to EXCEL tables.
It is suitable for measuring the diameter of animal fibers, chemical fibers, cotton and linen and other fibers. It has fast measurement speed, easy operation and reduces human errors.
Technical Parameters:
|
Testing Methods |
Fiber diameter test, blending content test |
|
Instrument Structure |

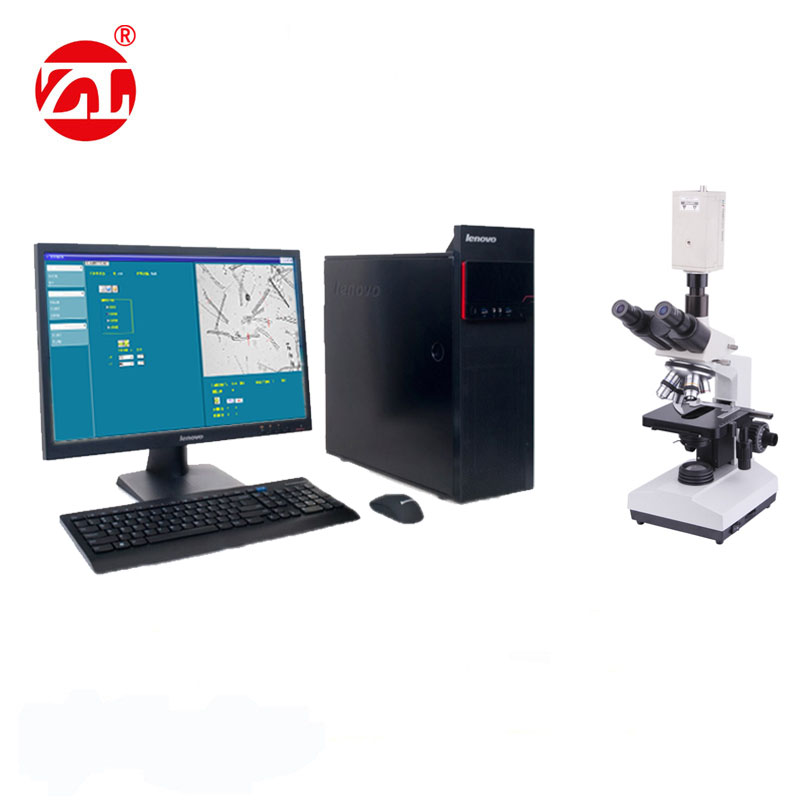

Commercial computer, analog camera (Panasonic), biological microscope |
|
Measuring Range |
2～200um |
|
Measurement Accuracy |
0.1um |
|
Power Supply |
AC220V 50Hz |
|
Overall Dimensions |
350×300×200mm |
|
Weight |
25kg |
|
Other Configurations |
Fiber microtome, one box each of slides and coverslips |
