Principle:
Place a piece of weighed absorbent paper behind the sample, spray a certain volume of water onto the taut surface of the sample, and then weigh the absorbent paper behind the sample again to measure the water permeability, and thereby evaluate the water permeability of the sample.
According to Standards:
AATCC42, ISO18695, GB/T33732, etc.
Accessories description:
Butterfly clip, 450g weight
Instrument Installation:
Test environment requirements: greenhouse conditions.
This instrument is a portable instrument. Please place it on a flat place when using it.
Technical Parameters:
|
Impact Height |
(610±10)mm |
|
Funnel Diameter |
152mm |
|
Number of Nozzles |
25 |
|
Nozzle Aperture |
0.99mm |
|
Sample Size |
(178±10)mm*(330±10)mm |
|
Tension Spring Clamp |
(0.45±0.05)kg |
|
Dimensions |
50×60×85cm |
|
Instrument Weight |
10Kg |
Prepare the Test Piece:
Style size: (178±10)mm × (330±10)mm
Operation steps:

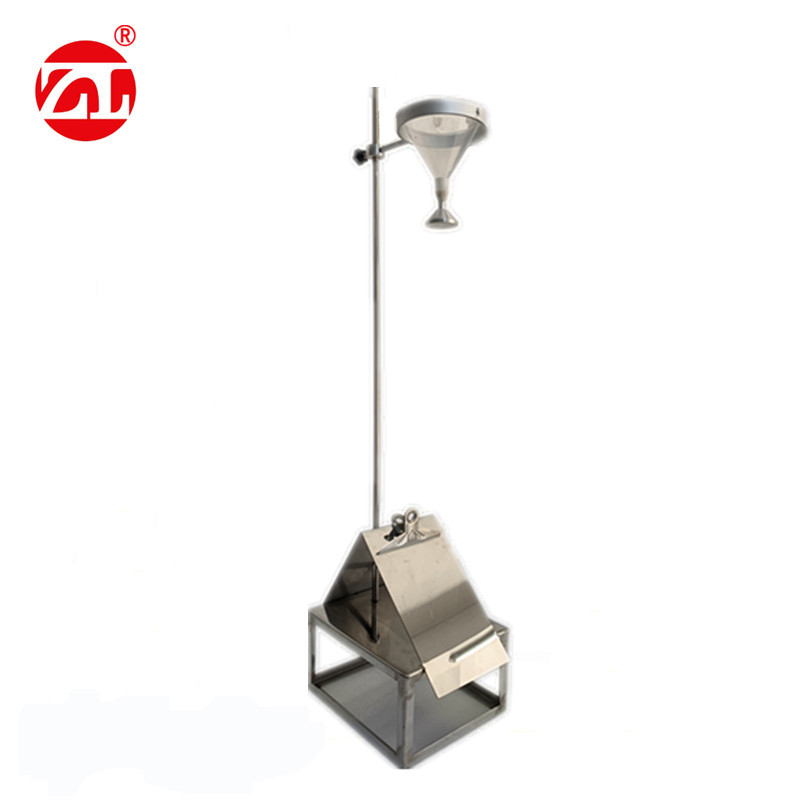

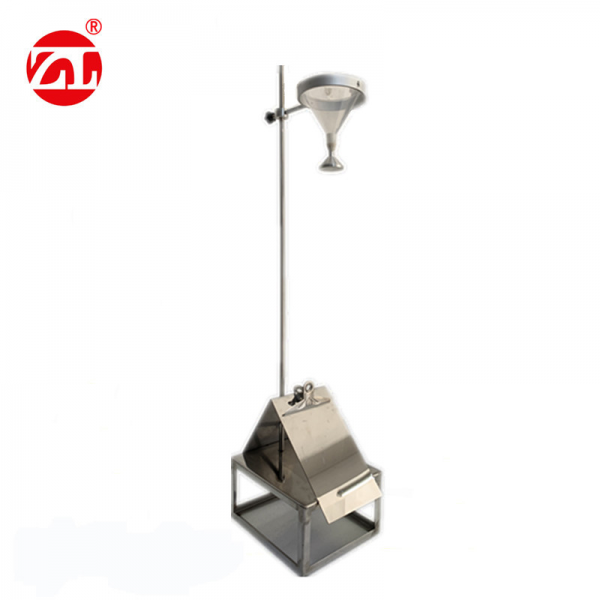

Adjust the height of the funnel to a distance of 610±10mm between the center of the nozzle and the center of the 45° slope. Weigh the standard absorbent paper and clamp it on the 45° slope. Take a standard size sample and cover it on the standard absorbent paper and clamp it with a clip. Clamp the lower end of the sample with another clamp and hang the weight. The weight of the clamp and weight is 450 grams. Use a 500ml measuring cup to measure 500ml of distilled water and pour it into the funnel. After all the liquid has leaked out, remove the sample as soon as possible. and standard absorbent paper, and weigh the absorbent paper again for evaluation.
