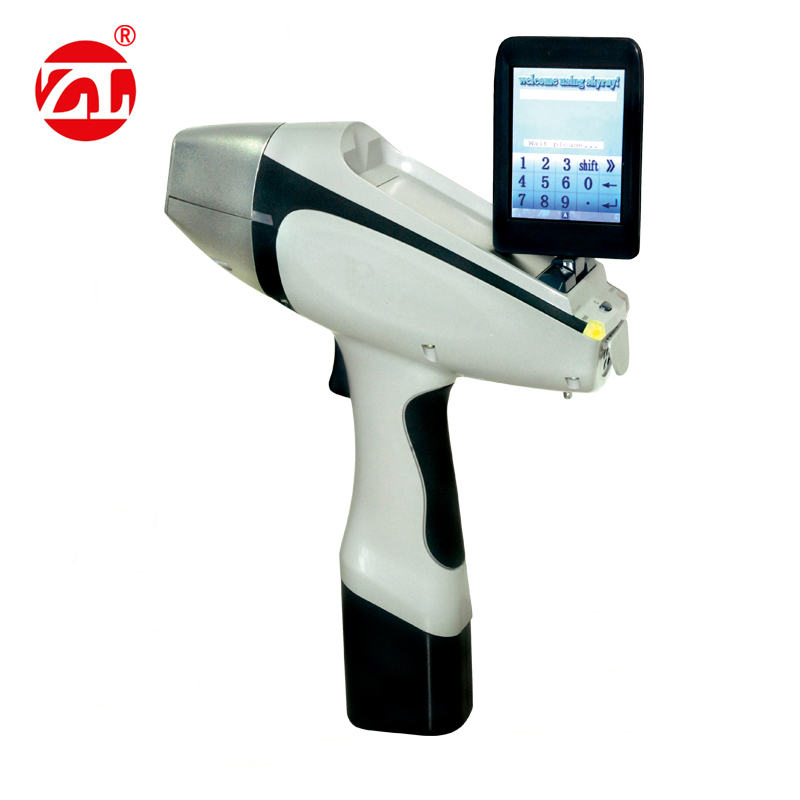

The new generational Genius Portable elemental XRF analyzer are designed according to the applications of on-site X-ray analysis in the wild, featuring small and light body, which can be held in hands by common people when measuring. It is super small, super light, super beautiful,super safe, super convenient, super long standby time, super precise and super fast. Digital multi-channel technology make the instrument have better detection limit, better stability, and wider application fields.
Portable elemental XRF analyzer series of products has passed strict testing and inspection, and all index are accorded with the related technological requirements, reaching the international advanced level.
Performance:
|
Analytical Method
|
Energy dispersive X fluorescence analysis method
|
|
Measuring Element Range
|
Elements between magnesium (Mg) and uranium (U) can be measured
|
|
Simultaneous Detection of Elements
|
Dozens of elements can be analyzed simultaneously
|
|
Processor and Memory
|
CPU:667MHz, memory:256M, extended storage supports up to 32G, standard 2G, can store data massively.
|
|
Content Range
|
Ppm ~ 99.99%
|
|
Detection Time
|
3-30 seconds
|
|
GPS, WIFI
|
built-in system
|
|
Battery Life
|
Rechargeable lithium battery, the maximum battery power is 7800mAH,
8 hours of continuous operation; equipped with a wide voltage 110V-220V universal adapter, can be used for AC power supply.
|
|
Test Object
|
Solid, liquid, powder
|
|
Detector
|
25mm2 0.3mil, SDD detector
|
|
Detector Resolution
|
Up to 139eV
|
|
Excitation Source
|
50KV/100uA-silver target window integrated micro X-ray tube and high voltage power supply
|
|
Collimators and Filters
|
Collimators with diameters of 4.0 and 2.0 mm, automatic switching of 6 filter combinations, 12 combinations, the world’s most combined mode, can meet the test of various types of samples
|
|
Test Object
|
Solid, liquid, powder
|
|
Video System
|
High definition camera
|
|
Display
|

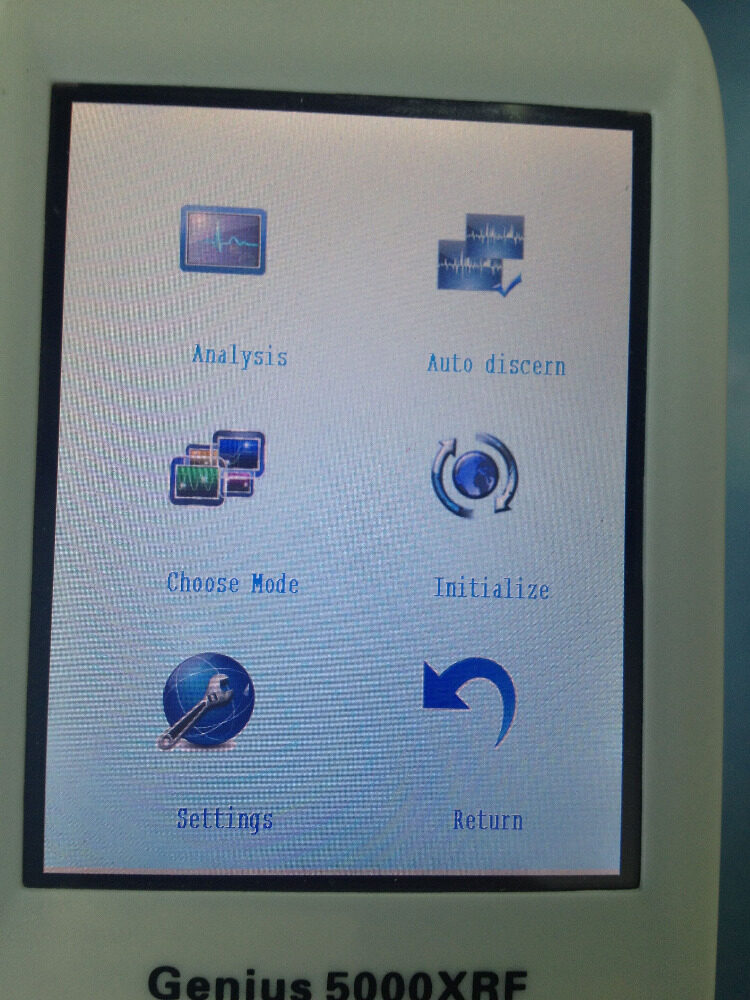

Semi-transparent LCD display touch screen with a resolution of 640*480
|
|
Detection Limit
|
The minimum detection limit is up to ppm level
|
|
External Interface
|
Waterproof mini USB and an external desktop computer.
|
|
Operating Environment Humidity
|
≤90%
|
|
Operating Environment Temperature
|
-20 ℃ ~ +50℃
|
|
Instrument Dimensions
|
234 × 306 × 82mm (L × H × W)
|
|
Instrument Weight
|
1.9Kg (with battery), 1.6Kg (without battery)
|
Application field:
1, can be used for ROHS and harmful element testing of very large volume components
- On-site inspection of materials for electronic components and components
- On-site sampling of various toys, stationery, children’s products and gifts.
- Testing and verification of packaging materials.
- All kinds of batteries are tested and verified for hazardous substances.
6, the test of harmful elements in the plating solution
- Detection of harmful elements in materials such as cloth and shoe materials.
- Testing of harmful elements in jewelry and accessories.

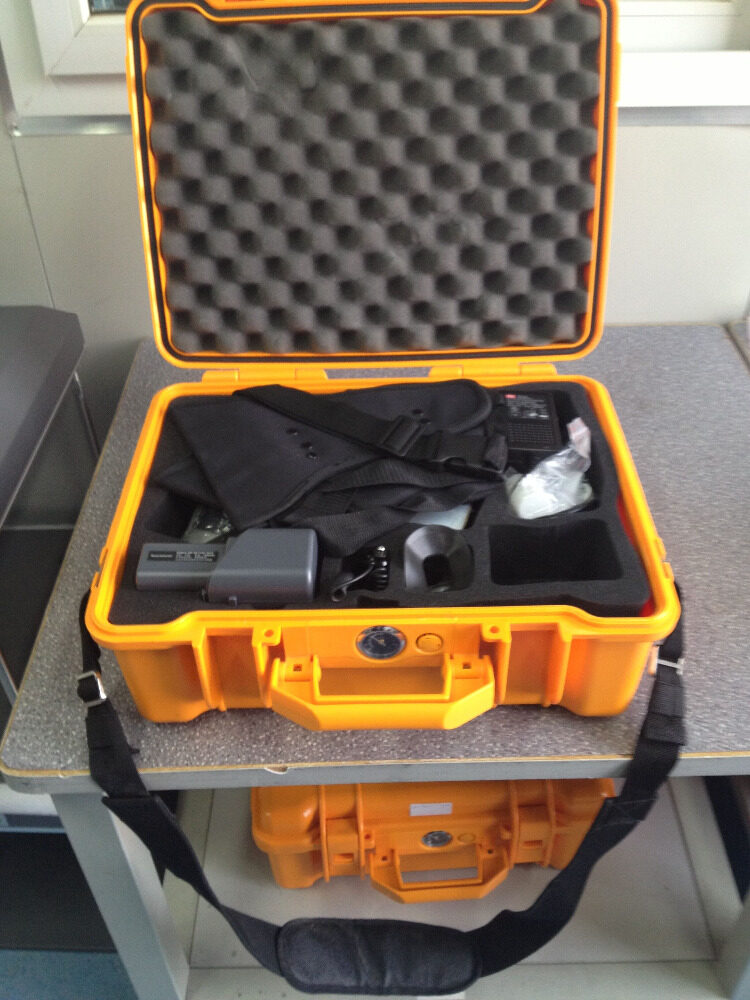

Standard Accessories:

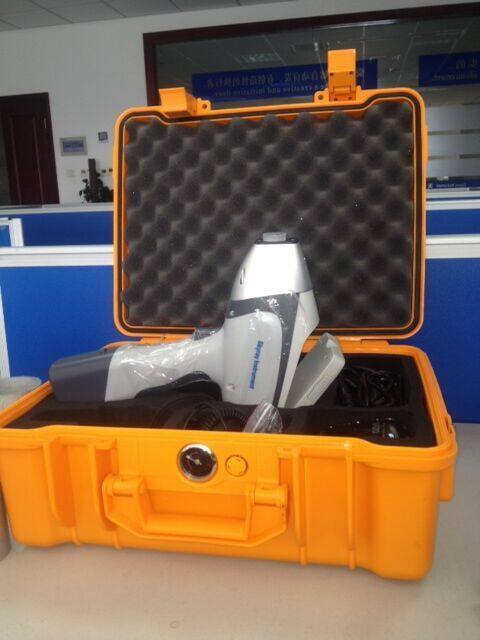

Waterproof Carrying Case
Two (2) Li-ion Batteries
User Interface Guide
Mini USB Cable
316 Stainless Steel Calibration Check Reference Coin
Integrated Wrist Strap
Analyzer Software
It can be used for ROHS and hazardous element testing of very large components, on-site inspection of electronic component materials, detection and verification of harmful elements in various batteries, jewelry and accessories, plating solutions, fabrics and shoe materials.
