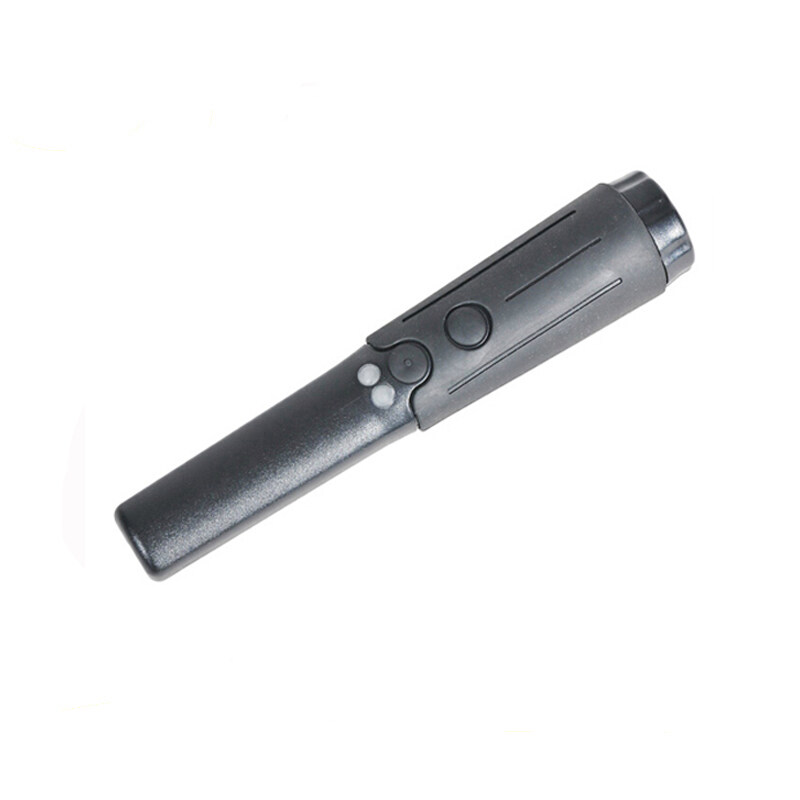

Instructions for Use:
|
1. Battery Cover
|
2. Power Switch
|
|
3. Control Switch of LED Lighting
|
4. Alarm Signal Light
|
|
5. Signal Sensing Area
|
6. Handle
|
|
7. Low Power
Indicator Light
|
8. LED Lighting
|
One-Button Switch: Turn on the power of the detector by pressing the detector switch. Note that the green light will be on at this time, indicating that normal detection can be carried out. Detection is completely automatic and requires no adjustments. It can detect not only ferrous metals, but also non-ferrous metals. When detecting, pay special attention to the detection of the heel and ankle.
LED Light Warning: When a metal object is detected, the red LED light will be on. At the same time, the green LED light will also light up.
Head LED Light: When turning on the power of the detector, press and hold the LED light switch, and the LED light on the head will light up. When the LED light switch is released, the LED light on the head does not light up.
Vibration Function: Its performance is excellent, allowing you to know that a metal object has been detected through silent vibration.
Unscrew the Battery Cover: When the battery is used up, unscrew the battery cover directly to replace the 9V battery. No other tools are required.
Characteristics and Scope of Application
- 360-degree no dead angle super sensitive detection function, no dead angle detection.
- Alarm mode: LED light alarm or silent vibration alarm.
- The unique LED headlight is of great help in dark or poor light.
- Use 9V battery. A 9V battery works for 80 hours. Optional rechargeable battery, charge for 12 hours, can work for 25 hours.
- When the power becomes low, the detection distance remains the same. Stable performance. With low voltage indicator light.
- The enterprise has passed the ISO9001:2008 quality management system certification
- The product has passed the EU CE certification
- The product meets the quality standards of the Ministry of Public Security for safety and police electronic products
Application:
This product is a professional detector designed to detect prohibited items such as guns and knives. It is mainly used in security checks in densely populated public places such as government agencies, public security agencies, procuratorates, courts, prisons, detention centers, customs, airports, stations, stadiums, exhibition venues, entertainment venues, and large gatherings with relatively high requirements.
Technical Parameters:
|
1. Circuit
|
Transmitter/receiver automatically readjusts. No manual adjustment is required.
|
|
2. Detection Sensitivity
|
Steel ball with a diameter of 20MM, the detection distance is ≥ 9 cm
|
|
3. Instruction
|
Silent Vibration
LED Light Green: When the detector switch is turned on
Amber: Low battery
Red: Alarm
|
|
4. Power Supply
|
9 volt square battery (6F22ND battery),
|
|
5. Waterproof Grade
|
IP66
|
|
6.Operating Frequency
|
95kHz
|
|
7. Working Current
|
Less than 50MA
|
|
8.Working Temperature
|
-37°C-70°C
|
|
9. Dimensions
|
22 * 3.8 * 2.9 cm
|
|
10. Net Weight
|
200g
|
|
11. Packing Size
|
54 * 27 * 45 cm (20 pieces/box, 15kg/box)
|
Operation Introduction:
- When the metal is in working condition, wave the detector to scan people (or other detection objects) at a distance of about two inches. If metal is detected. The machine will sound an alarm or vibrate silently, and the red light will be on. No readjustment is required after probing. The scanning range is generally one to two inches from the floor to detect the detection object.
- Sound alarm operation, press the power switch forward, when the detector detects metal, you will hear a clear alarm sound. The red warning light will also remain on to indicate metal detection.
- Silent vibration, when sliding the power switch backwards for detection, when metal is detected, the metal detector handle will vibrate without making a sound. The red warning light will also continue to indicate metal detection.
