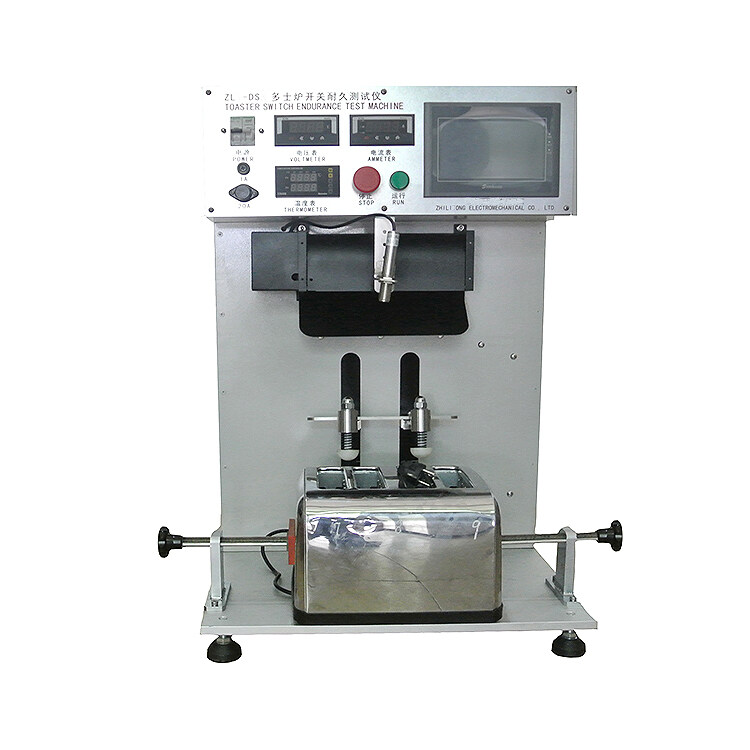

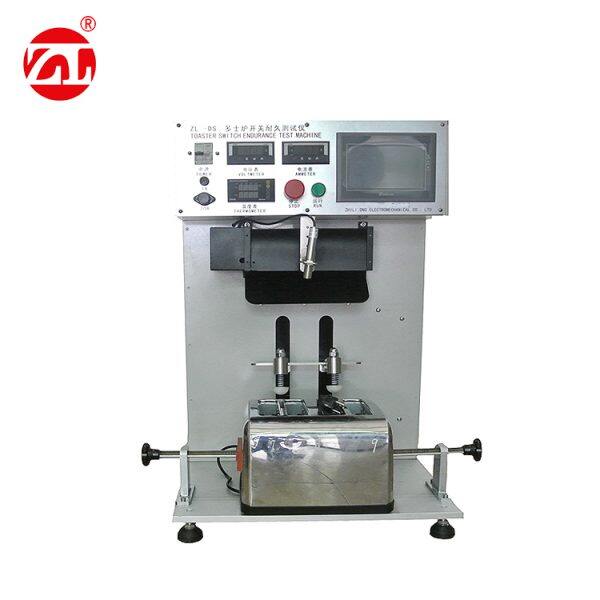

Toaster switch durability tester is a special testing instrument designed and manufactured according to the requirements of IEC60335-2-9:19.101, gb4701-14:19.101 and other standards. It is suitable for toaster switch durability test and has the advantages of simplicity, accuracy and practicality.
Product introduction:
Toaster switch durability tester is a special testing instrument designed and manufactured according to the requirements of IEC60335-2-9:19.101, gb4701-14:19.101 and other standards. It is suitable for toaster switch durability test and has the advantages of simplicity, accuracy and practicality.
Standard requirements:
Toasters (bread toasters) are tested at rated input power and under normal operating conditions for 6 cycles without bread, then cooled to room temperature and repeated 500 times for the previous dynamic test.After the test, the toasters shall be able to continue working without apparent deformation.Repeat the previous action for a total of 500 times.
Technical performance:
|
Input voltage |
220V/50Hz; |
|
Test times |
1~9999 times (four digits); |
|
Cooling fan power |
100W; |
|
Temperature measuring device |
infrared temperature measuring system; |
|
Driving mode |
electric; |
|
Operation mode |
PLC. |
|
Equipped with longitudinal and transverse keys, with spring as buffer to protect the sample keys, can be pressed on the samples of 2 switches; |
|
