Product Usage:

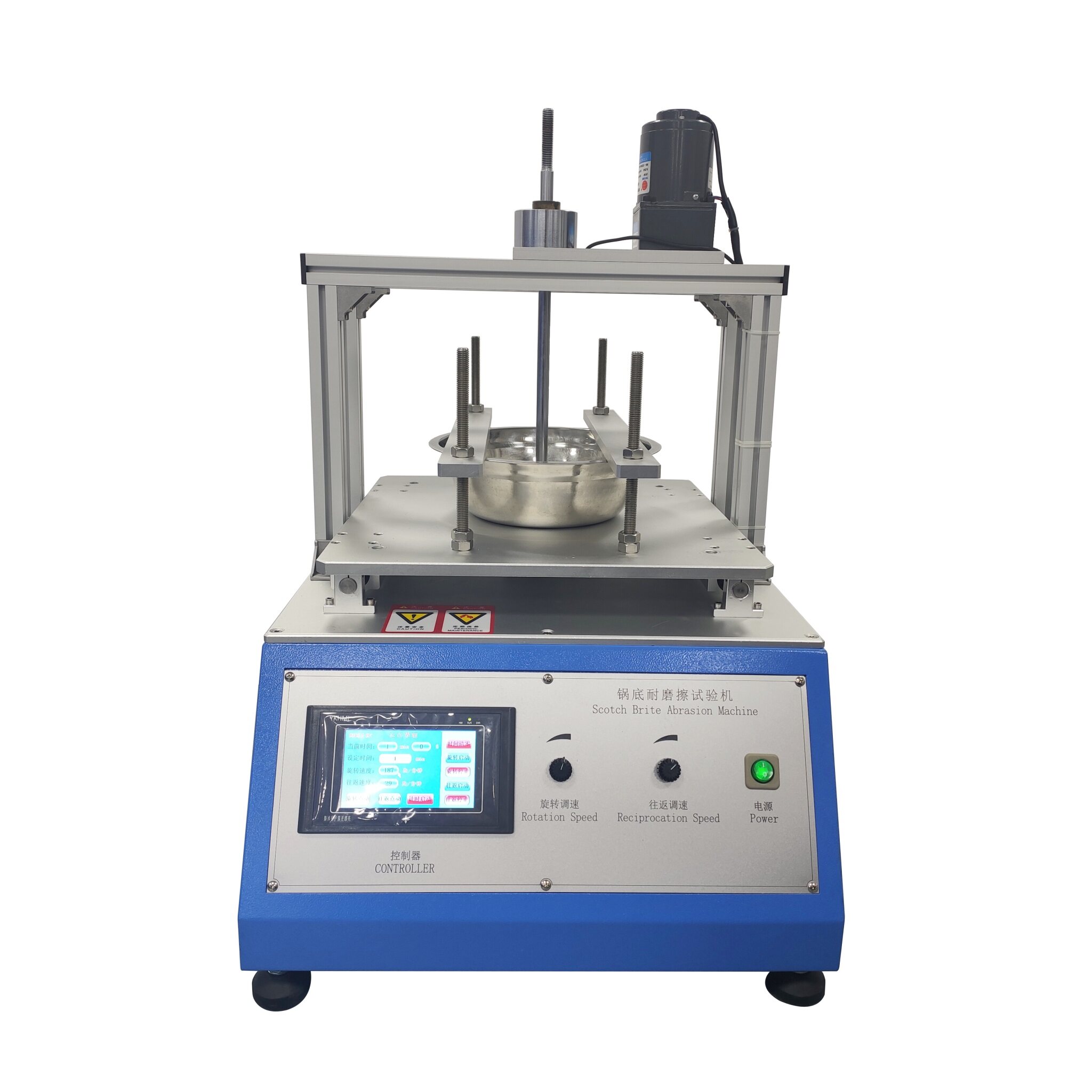

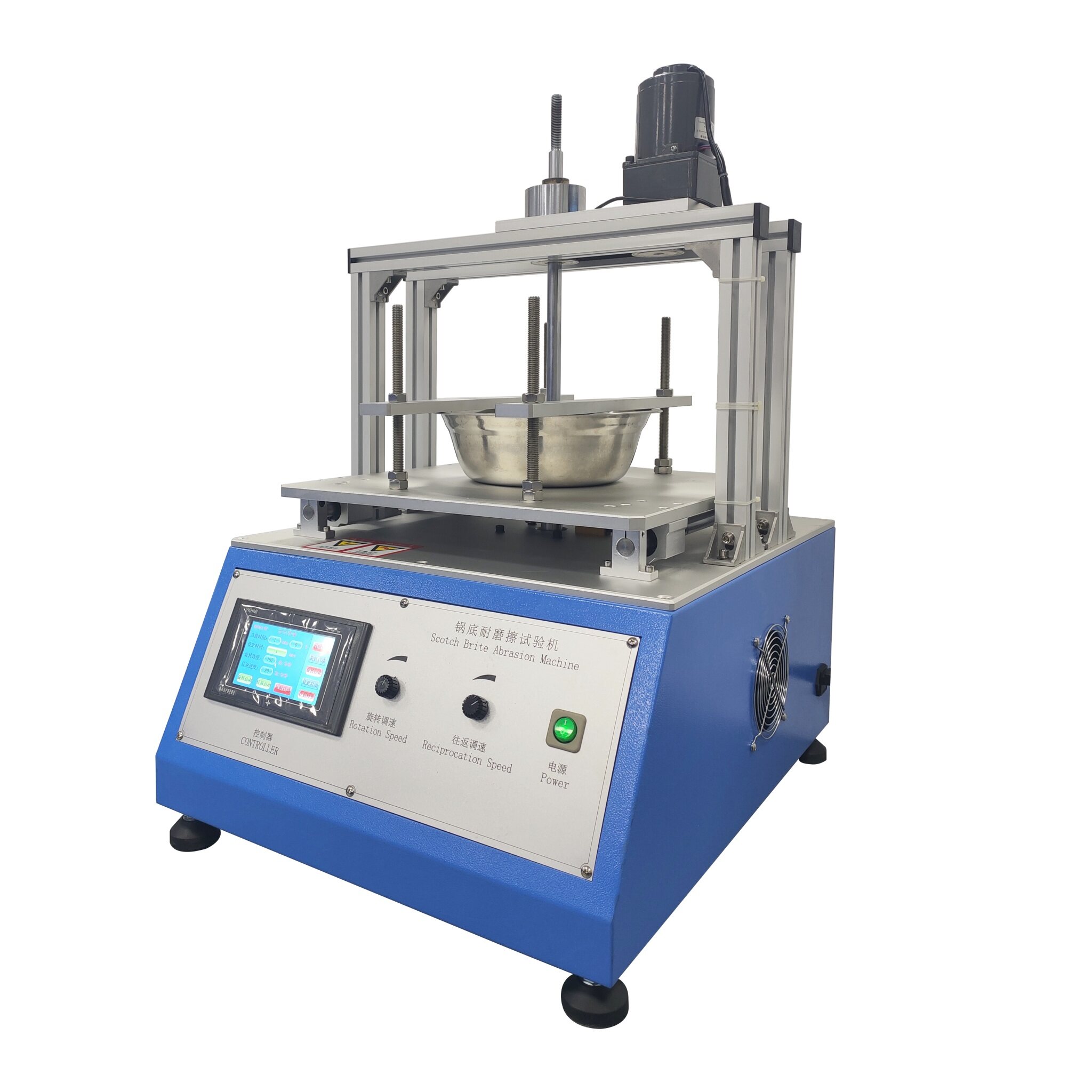

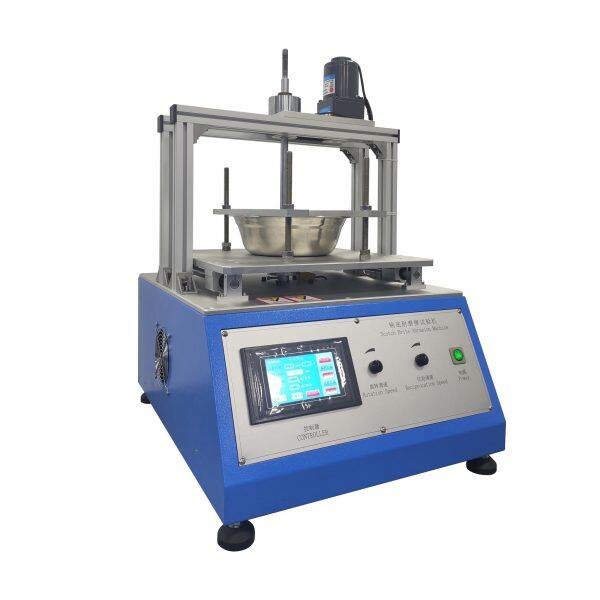

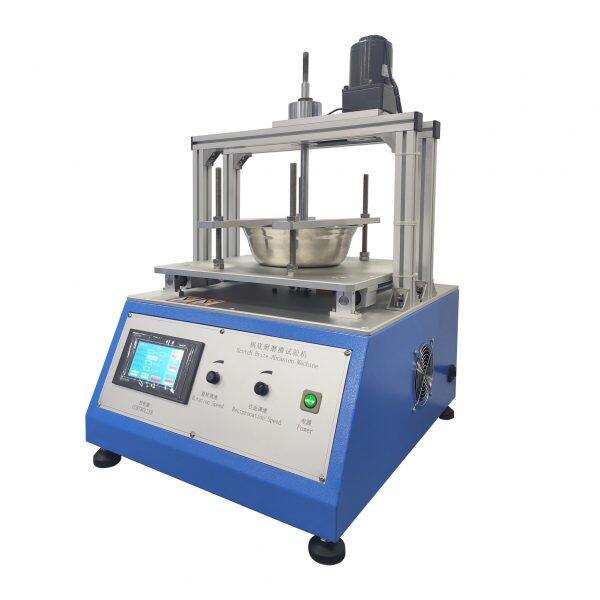

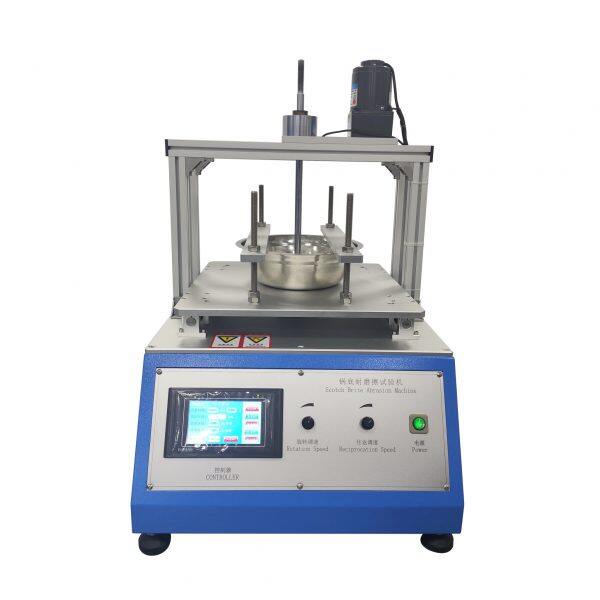

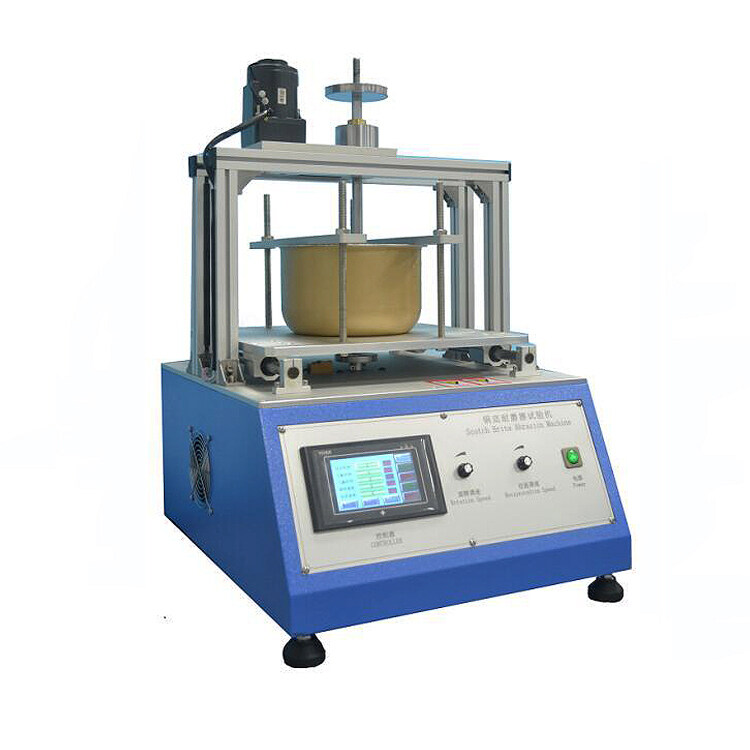

This machine is applicable to the abrasion resistance test of various surface coating samples of the bottom of the pot. Under a certain load, the test medium and the sample are rubbed and the abrasion effect is judged under a certain test time.
Features:
1.Double motor works, one motor drives the test sample to move back and forth, one motor drives the friction cloth to rotate
2.A variety of clamping methods and a variety of wear methods to make your test accurate and productive.
3.LED digital display timer, you can set the test time arbitrarily and visually display the actual test time.
4.LED digital display counter, you can set the number of tests arbitrarily and visually display the actual number of tests.
Technical Parameters:
|
Tooling |
special grinding cloth |
|
Test load (g) |
908, 1219, 1500, 4500, 4900g |
|
Number of tests |
0—99999999 times (can be set) |
|
Test stroke |
52.7mm |
|
Test head diameter |
50mm |
|
Test time |
0-9999 hours 59 minutes 59 seconds |
|
Machine size |
500 × 500 × 600mm |
|
Power |
220V, 5A or specified |
|
Weight |
about 60kg |
Model B:
|
1.Friction speed |
adjustable speed (21/43/85/106) r/min |
|
2.Friction load |
908g,1810g |
|
3.Friction stroke |
60mm |
|
4.Friction area |
50*100mm |
|
5.Times setting |
0-99999 automatic shutdown |
|
6.Power |
40W |
|
7.Machine size |
600×325×400cm |
