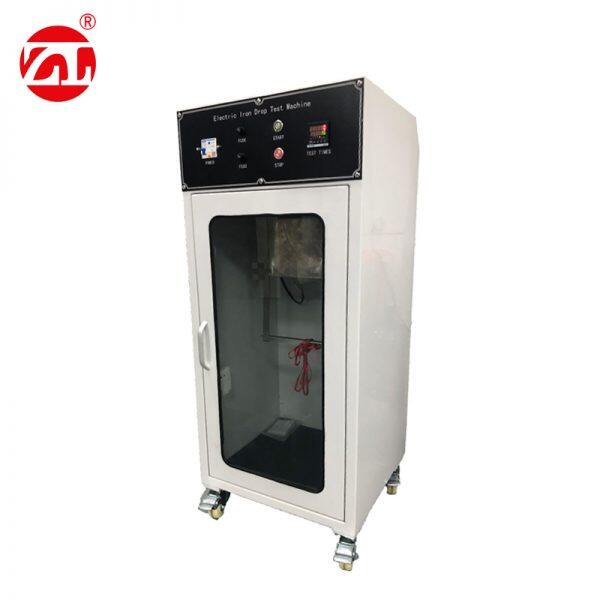

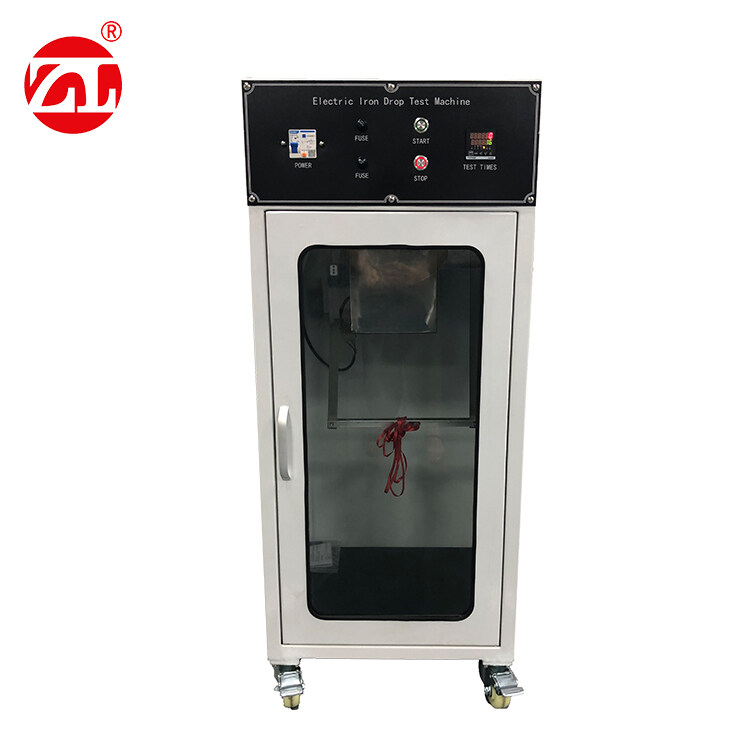

The device conforms to gb4706-2 clause 21.101, iec60335-2-3 clause 21.101 and other standard requirements, and is suitable for testing the mechanical strength of electric irons under normal working conditions and rated input voltage.By iron (except cordless electric iron) handles the electric iron hanging up and make the floor into a horizontal position, from 40mm high iron fell for at least 15mm in thickness, quality for at least 15 kg of rigid bearing plate, the experiment in the frequency of no more than 20 times per minute 1000 times.Drop test each round to ensure that the iron has 15% of the time to stay on the steel plate, through the CAM structure.
Product Overview :
The device conforms to gb4706-2 clause 21.101, iec60335-2-3 clause 21.101 and other standard requirements, and is suitable for testing the mechanical strength of electric irons under normal working conditions and rated input voltage.By iron (except cordless electric iron) handles the electric iron hanging up and make the floor into a horizontal position, from 40mm high iron fell for at least 15mm in thickness, quality for at least 15 kg of rigid bearing plate, the experiment in the frequency of no more than 20 times per minute 1000 times.Drop test each round to ensure that the iron has 15% of the time to stay on the steel plate, through the CAM structure.
Technical Parameters:
|
1. Working and load power supply |
AC 220V 50HZ; |
|
2. Driving mode |
motor and CAM drive; |
|
2. Test times |
1~9999 digital display, can be preset; |
|
3. Working speed |
20 RPM; |
|
4, Drop height |
40 mm |
|
5, Bearing plate |
thick > 15mm, quality > 15 kg. |
|
6. Equipment size and outsourcing box size |
500*520*980/530*560*1050mm |
