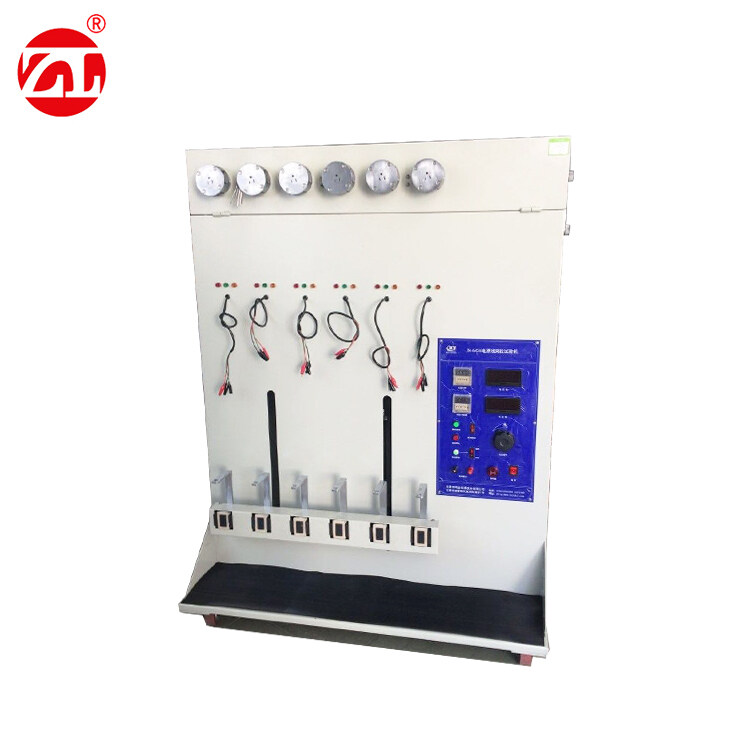

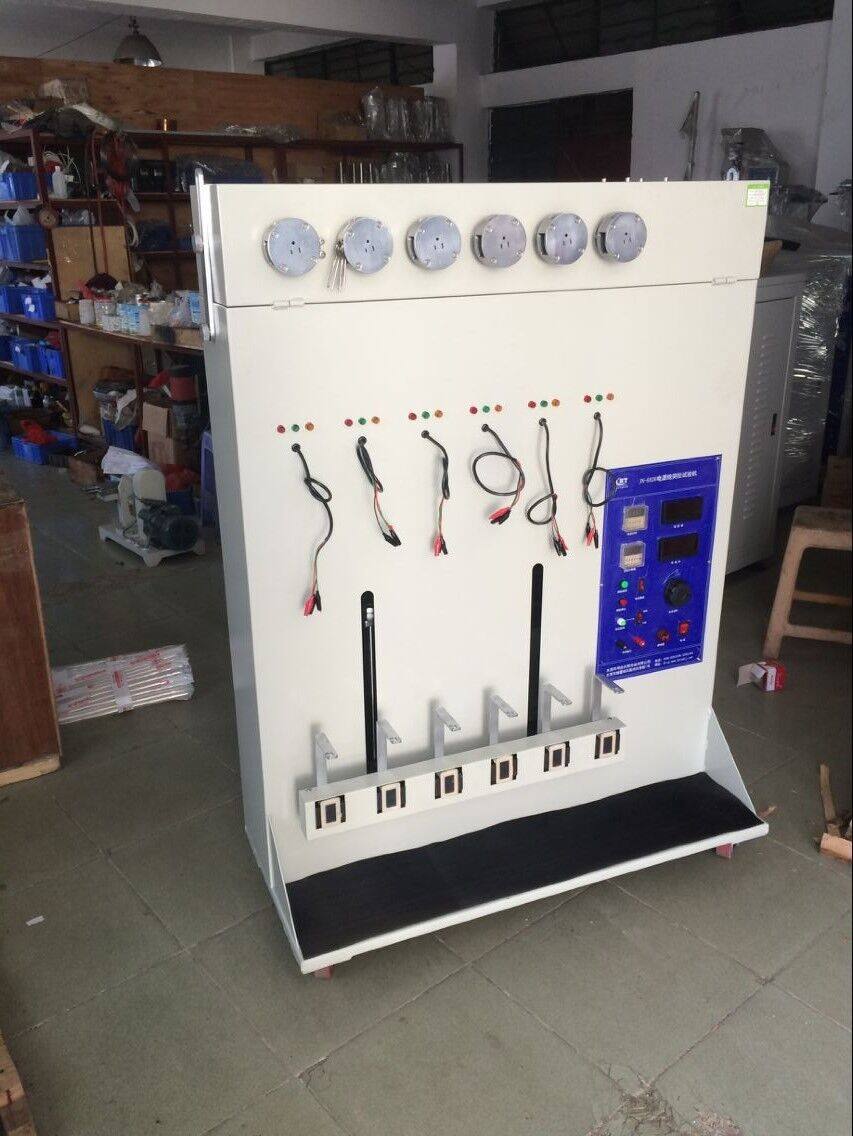

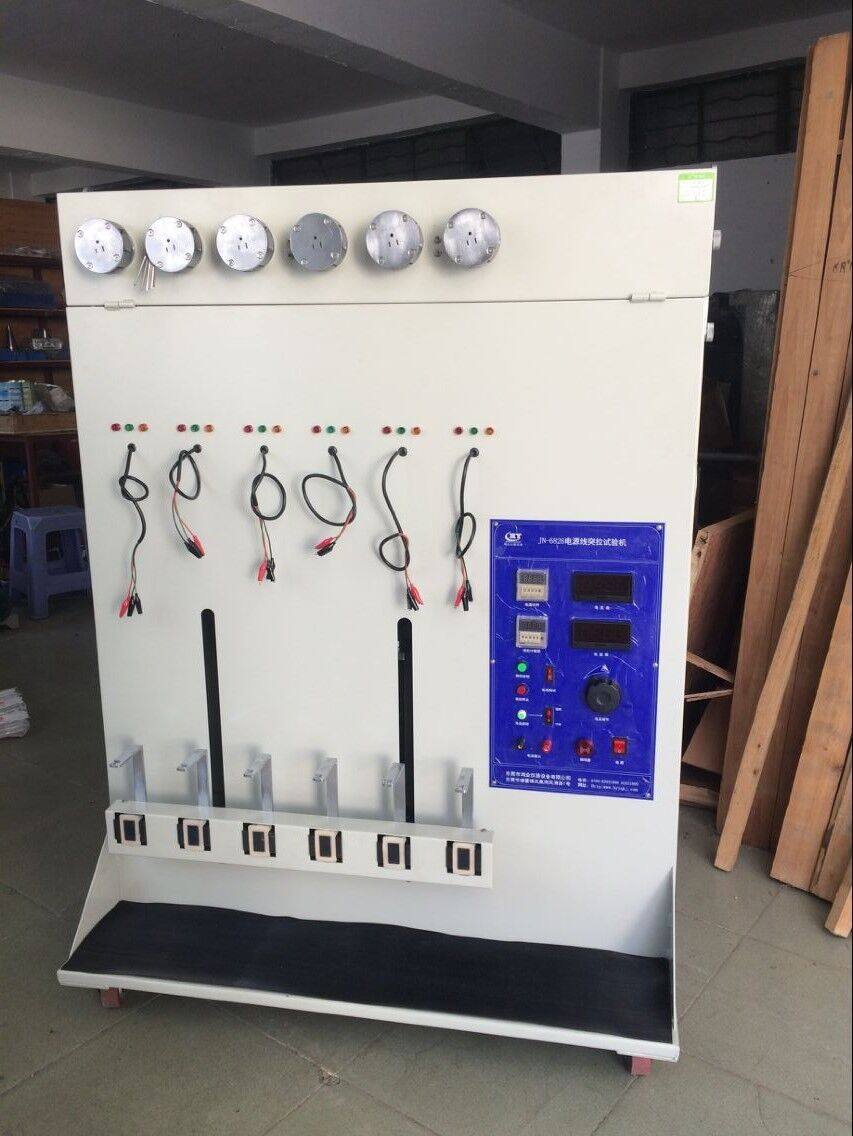

This machine is used to test the bonding strength between the plug blade and the wire and the wire’s sudden tensile strength. Fix the plug in the socket, connect the end of the wire to the hammer rod, and perform a sudden pull test with an impact weight. after that,
Hang the weights, and carry out the rotation test and the E pole (grounding pole) withstand current test.
Meet Standard:
UL-817.(Cord Sets and Power-Supply Cords)
This machine is used to test the bonding strength between the plug blade and the wire and the wire’s sudden tensile strength. Fix the plug in the socket, connect the end of the wire to the hammer rod, and perform a sudden pull test with an impact weight. after that,
Hang the weights, and carry out the rotation test and the E pole (grounding pole) withstand current test.
Specification:
|
Specimen number |
6pcs |
|
Suddenly pull speed |
4times/min |
|
Load time |
3mins |
|
Fixture Accessories |
6pcs |
|
Abrupt Pull weight |
2.5LB X 6 |
|
Rotation Weight |
3LB X 6 |
|
Load Weight |
15LB X 6 |
|
Load Current |
30A/12V |
|
Counter |
6 figures |
|
Power |
220VAC，50/60Hz |
|
Dimension (WxDxH) |
120X50X148cm |
|
Weight |
180kg |
