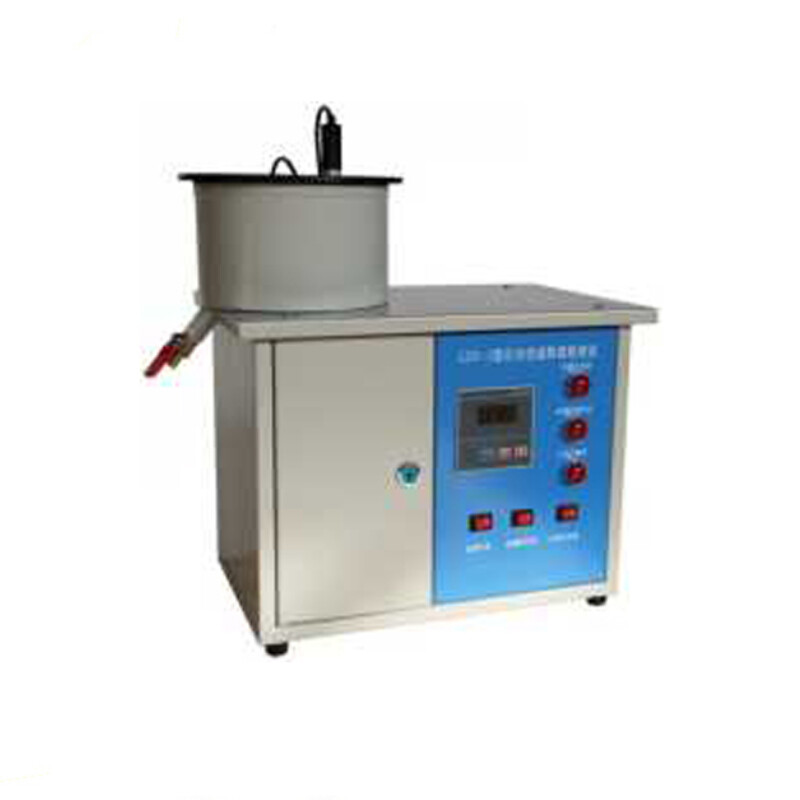

This meter is manufactured in accordance with the regulations on standard viscosity testing for asphalt stipulated in the industrial standard T0621 issued by the Ministry of Communications, which is used to measure viscosities of liquid petroleum asphalt, coal tar asphalt, emulsified bitumen under flowing conditions.
Equipment overview:
This meter is manufactured in accordance with the regulations on standard viscosity testing for asphalt stipulated in the industrial standard T0621 issued by the Ministry of Communications, which is used to measure viscosities of liquid petroleum asphalt, coal tar asphalt, emulsified bitumen under flowing conditions.
Main technical parameters:
(1) Thermostatic bath:∮160mm×100mm
(2) Tube for holding samples: internal diameter∮40mm depth 105mm
(3) Diameter of discharge orifice:φ3mm±0.025mm φ5mm±0.025mm φ10mm±0.025mm
(4) Power supply:220V 50Hz
(5) Range of temperature control: room temperature~100℃
(6) Accuracy of temperature control:±0.5℃
(7) Means of timing: digital display
