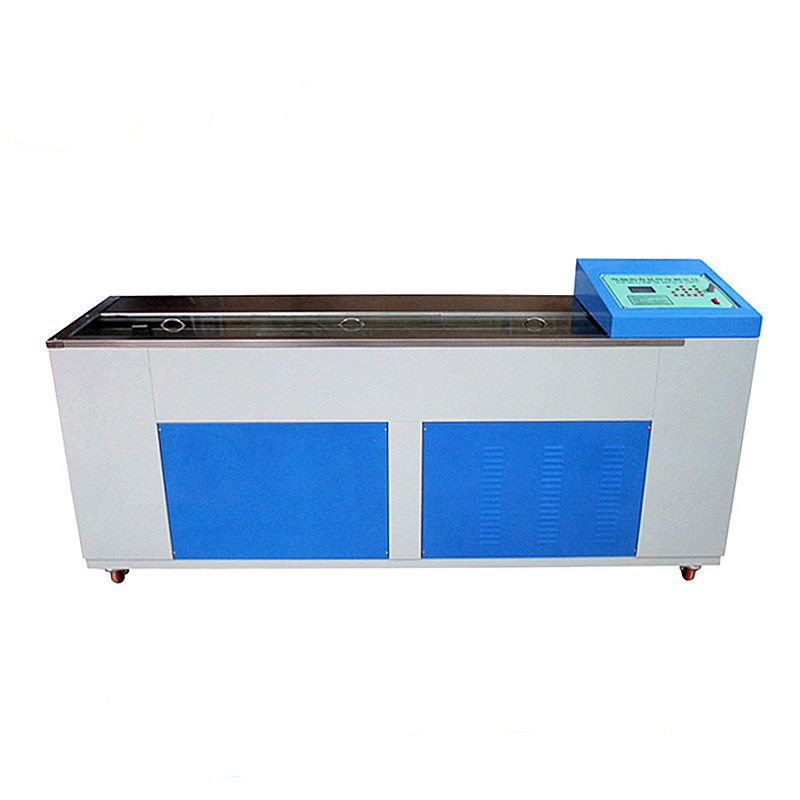

The device is used for measuring ductility of varieties of asphalt and residue of distilled asphalt and residue of distilled asphalt latex, calculating average means of ductility of three samples. The temperature is in digital display, which indicates working status and current time, velocity (adjustable), force measurement diagram and sample extension and can be connected to the printer. After it is expanded, it can be connected to the computer system. The device complies with the standard JTG E20-2011 issued by Ministry of Communication, and is widely used in manufacturing, road construction, scientific research and academies, more applicable for test for improving asphalt.
Equipment overview:
The device is used for measuring ductility of varieties of asphalt and residue of distilled asphalt and residue of distilled asphalt latex, calculating average means of ductility of three samples. The temperature is in digital display, which indicates working status and current time, velocity (adjustable), force measurement diagram and sample extension and can be connected to the printer. After it is expanded, it can be connected to the computer system. The device complies with the standard JTG E20-2011 issued by Ministry of Communication, and is widely used in manufacturing, road construction, scientific research and academies, more applicable for test for improving asphalt.
Main technical parameters:
Mains voltage: 220V 50HZ
Range of temperature control: 5-50±0.10℃
Refrigerating power: 1.5KW
Heating power: 2KW
Maximum ductility: 1500mm
Extension speed: 0—150mm/min (adjustable)
Internal storage with 15 groups of experimental data (Classified into single speed and double speed)
