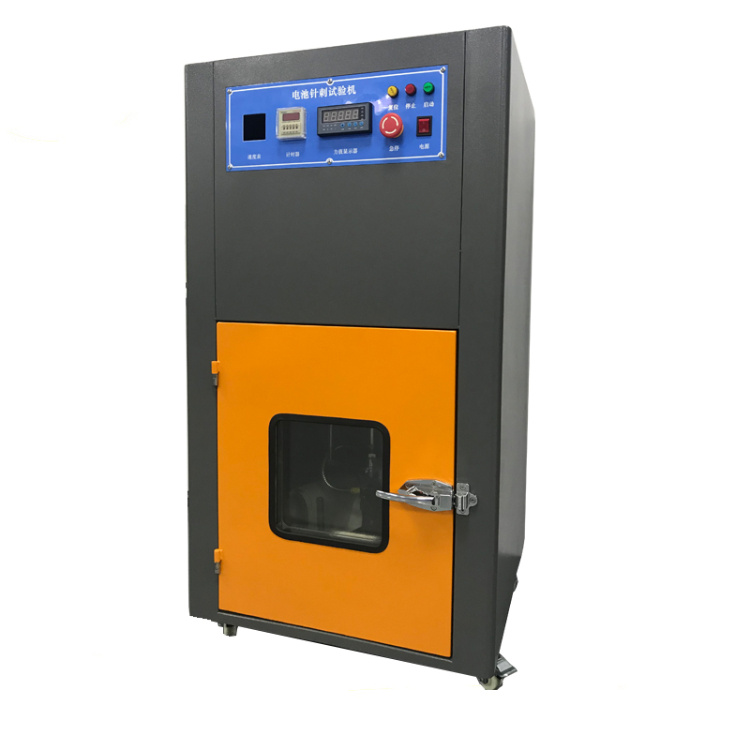

ZL-3207 Battery Piercing Test Machine

Principle details of equipment

Test purpose:This machine is suitable for the simulation case of various types of batteries in using, transportation, storage or disposal of household waste, when the battery suffer from squeezing.The battery does not explode or burn as qualified.



Test method:Tests should be carried out at 20℃±5℃ ambient temperature, put the battery with thermocouplein the draught cupboard( thermocouple contacts are fixed on the battery surface). Pierce the battery with a diameter of 3-8mm corrosion-resistant stainless steel needle in the center position of maximum surface at the speed of 10mm/s-40mm/s, and hold it for 5 seconds. The battery does not explode or burn as qualified.



• For cylindrical batteries, the longitudinal axis of piercing the battery should be parallel to the two plate of the extrusion device

   As for square and soft battery, pierce the battery only at the center section of the wide side.



2、For the coin type or button type battery,pierce in a way that the upper and lower planes of the battery are parallel with the plate.



  Pierce at least 3 single cell batteries in turn from the direction perpendicular to the battery plate,with high temperature resistant steel needle which has a diameter of 6mm ~ 10mm( the cone angle of the needle tip is 45 degrees ~60 degrees.The needle surface is smooth, no rust or oxidationn layer or oil contamination. Observe for an hour.



Standards:



GB/T 31485-2015     Safety requirements and test methods for power batteries for electric vehicles

GB/T 31485-2015     Safety requirements and test methods for power batteries for electric vehicles

GB/T 31241-2014     Safety requirements for lithium ion battery and battery pack for portable electronic products

UN38.3(2012)         Recommendations on the transport of dangerous goods – Test and standard manual part 3

IEC62133             Safety requirements for battery and storage battery with alkaline

or non acid electrolytes

QC/T743-201X             Lithium ion battery for electric vehicles

GB/T 8897.4-2008     The fourth part of the primary battery safety requirements of lithium batteries

GB/T 21966-2008      Safety requirements for lithium primary batteries and batteries in transit

YD 1268-2003         Safety requirements and test methods for lithium batteries and chargers for mobile communication handsets

GB/T 19521.11-2005    Safety code for inspection of hazardous properties of lithium batteries

YDB 032-2009         Backup lithium ion battery pack for communication

UL 1642:2012          Lithium battery standard

UL 2054: 2012         Household and commercial storage battery

IEC 62281: 2004       Safety requirements for lithium primary batteriy and battery pack in transit



Machine structure: consists of two parts,drive part on the left, test part on the right.

Inner box material:Stainless steel plate with Teflon, strong corrosion resistance and flame retardant performance,1.5mm thick

Outer box material:Cold plate stoving varnish, 1.5mm thick

Obsevation window size:200x200mm,three layer vacuum toughened glass observation window, built-in high brightness energy-saving lamp

Air outlet:The rear part of the box body is equipped with an exhaust fan and a reserved exhaust duct      interface which has a diameter of 120 mm.Plug in the fan and it would start to work immediately

Box dor:Single door which is opened on the left

Door switch:turn on the threshold switch of power off to ensure that there is no wrong operation

Decompression and explosion venting function: The rear part of the box body is equipped with explosion door.When pierces or squeezes the battery leads to explosion, the pressure inside the box gets too large. Explosion door can be opened automatically and relieve pressure inside,reduce the pressure impact on the box door.

Fixture：one set of pierce fixture

Caster:There are four universal casters on the bottom of the equipment,which can move freely



Structure feature picture of decompression equipment



Technical parameter of equipment

   Driving mode:hydraulic driven

   Squeezing direction:For cylindrical batteries, the longitudinal axis of piercing the battery should be parallel to the two plate of the extrusion device

   As for square and soft battery, pierce the battery only at the center section of the wide side.

   As for the coin type or button type battery,pierce in a way that the upper and lower planes

   of the battery are parallel with the plate.



   One sample is tested by piercing once only

   Maximum pressure range:1 kN ~20kN

   Unit conversion:kg, N, lb

   Effective test space:500*500*500mm（L*W*H）

   Needle stroke:500mm

   Delay function:0-9999 (H/M/S could be set arbitrarily and adjust test time)

   Clamping method:manual clamping

   Machine size:1400*800*1900mm(W*H*L)

   Power supply: AC380V， 50~60HZ， 10A

   Power:3.8KW

   Weight:about 300kg



Design specification for main components of equipment

 Control scheme :control the sensors, provide with closed loop response travel switch, interpret the sensor output signal

 Sensor:calculate the needle stroke and linear speed by pulse signal

 Hydraulic pressure station :provides stable pressure and power source with variable speed . High power motor and domestic high quality pump provide with stable output. Overflow valve , solenoid valve and pressure release valve provide with variable-speed power

 Mechanical section:chromium plated high performance high carbon steel constitute two main sections of the transmission support, the test trip: 500mm ;



Safety protection system

1.Overvoltage protection ：the sensor has a built-in pressure range, which can prevent the damage to the sensor effectively and the drive motor due to excessive pressure

2、Phase loss and anti-phase protection switch

3、Travel limit protection

4、Circuit fuse overcurrent protection

5、Overload protection



Service condition：

1、Ambient temperature ：25±5℃

2、Power supply condition:Three-phase four wire electric source
