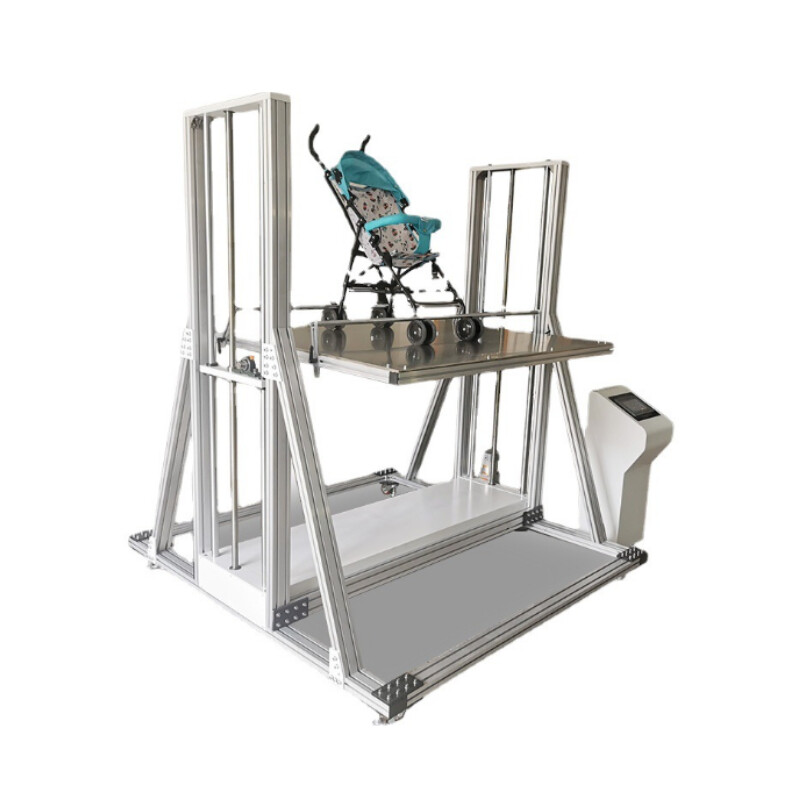

ZL-3115 Baby Stroller Flip Test Machine

1. Introduction :

The stroller turning test machine is designed according to EN1888 EU stroller. It is used to measure the strength and durability of the locking of the joint part of the whole car body to be tested after turning over a certain angle at a certain speed under a certain weight.



2.Main Functions:

Test the connection between the baby stroller seat pocket and the baby pocket, looseness and damage, and the connection strength performance of the whole vehicle;



3.Reference standard:

EN1888:2012, GB 14748-2006, ASTM F833-19 and other standards;



4.The instrument features:

 The mechanical parts are composed of high-strength aluminum profile frame and stainless steel surface treatment;

 Accurate positioning of the drive, servo drive control system;

 7-inch color PLC touch controller, integrated display;

 The angle can be customized, the speed can be adjusted, and the operation is convenient;

 Two-way guide rod, fixed screw rod, stable lifting and low noise;

 Precision universal angle wheel with brake, which can be fixed and can be moved flexibly;

 Independent control box, mobile operation is convenient;

 Jog-type lifting function, the sample installation is simple and labor-saving;

 The solid wood board of the test bench is drilled and covered with stainless steel, which can be replaced.

 Lifting configuration chain connection, durable, not easy to wear, stable lifting;



5.Technical specifications:

5.1. Test platform: (1400X1300X45) MM;

5.2. Test angle: 0-360 degrees of arbitrary rotation;

5.3. Angle display: PLC automatically tracks the actual test angle;

5.4. Speed display: PLC automatically displays the test speed in real time;

5.5. Controller: 7-inch color touch control screen;

5.6. Drive system: dual-motor drive system (servo motor controls flip + frequency conversion motor controls lift)

5.7. Effective test height: 60-1500mm adjustable

5.8. Test load: maximum 60kg

5.9. Test speed: 0-10r/min

5.10. Test mode: bidirectional or unidirectional mode is optional

5.11. Angle return function: real-time reset, one-key automatic return;

5.12. Test range: 0-99999 times

5.13. Machine size: 1760×1820×1980mm

5.14. Machine weight ≈ 165kg

5.15.Power supply: AC220V 10A 1200W



6.list:

6.1. 1 unit machine

6.2. 1 set of fixed plate

6.3. 2 pieces of load bags

6.4. 1 copy of the manual

6.5. 1 copy of delivery note

6.6. Packing list :1 copy
