Meet the standards: AS/NZS2088:2000 ASTM-F833 and CNS6263-11, BSL-1996，EN1888.2003

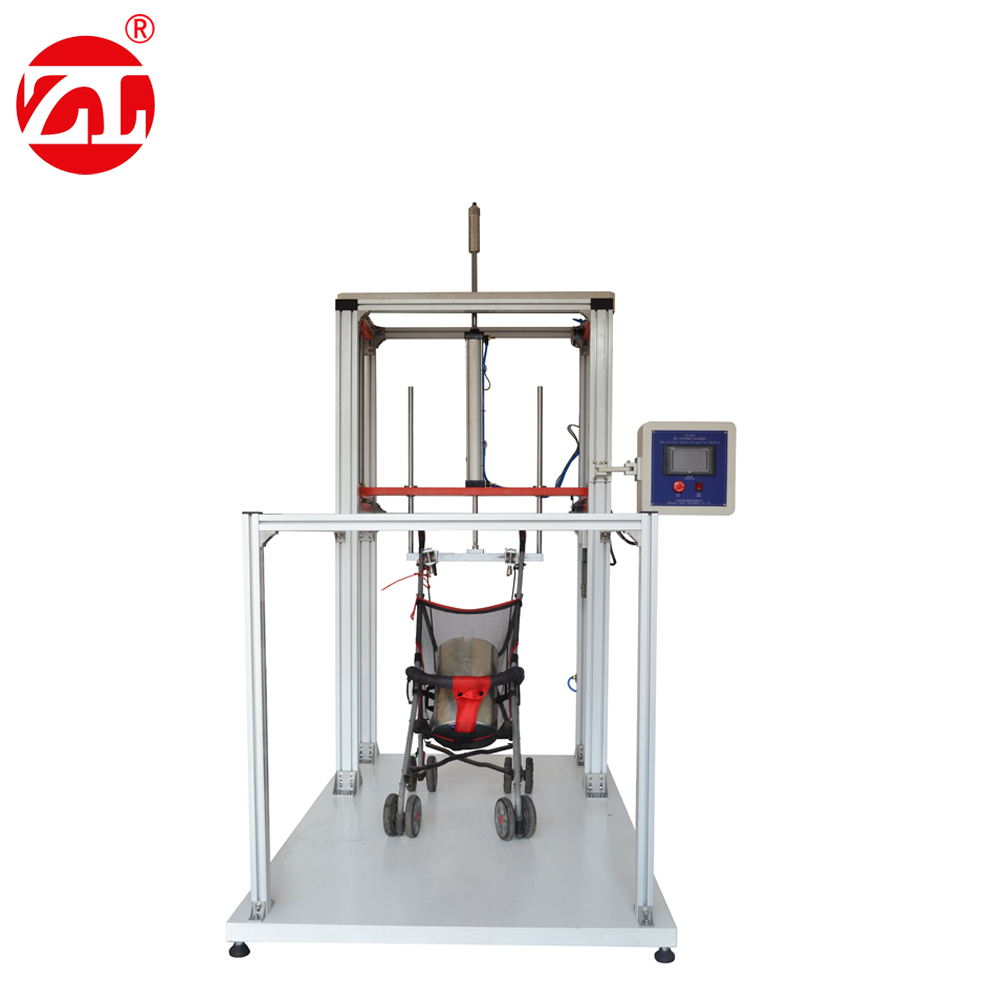

This machine is suitable for conducting durability tests on the lifting and pressing of hand pushed baby strollers when simulating obstacle crossing. The testing method is to place the model baby in the stroller platform, lift it so that the rear wheels of the stroller platform are 150mm away from the area, and press it down so that the front wheels of the stroller platform are 150mm away from the ground, at a rate of 15 ± 1 times per minute. After continuous testing for 3000 times, visually inspect the stroller platform for damage, reach the set number of times, and automatically stop the operation.
Meet the standards: AS/NZS2088:2000 ASTM-F833 and CNS6263-11, BSL-1996，EN1888.2003
This machine is suitable for conducting durability tests on the lifting and pressing of hand pushed baby strollers when simulating obstacle crossing. The testing method is to place the model baby in the stroller platform, lift it so that the rear wheels of the stroller platform are 150mm away from the area, and press it down so that the front wheels of the stroller platform are 150mm away from the ground, at a rate of 15 ± 1 times per minute. After continuous testing for 3000 times, visually inspect the stroller platform for damage, reach the set number of times, and automatically stop the operation.
Corresponding Standard:
Prams/Stroller Dynamic Durability Test Machine is made based on hand-pushed pram standard of CNS dynamic durability test and hand-pushed pram ASTM dynamic durability test.
Applicable Industry:
Prams/Stroller Dynamic Durability Test Machine is a ideal testing instrument for pram manufacturers, research and product quality supervision and inspection industries and sectors.
Technical Parameters:
|
Test Itinerary |
150mm |
|
Drive Mode |
Pneumatic driven type |
|
Up and Down Range |
MAX400mm |
|
Experimental Counting |
0-99999999 times |
|
Load Bearing Capacity |
MAX50 pounds |
|
Test Power Supply |
AC220V 50HZ |
|
Experimental Work |
Single seat body |
|
Volume |
160X110X190cm |
|
Machine Weight |
About 250KG |
