Introduction:

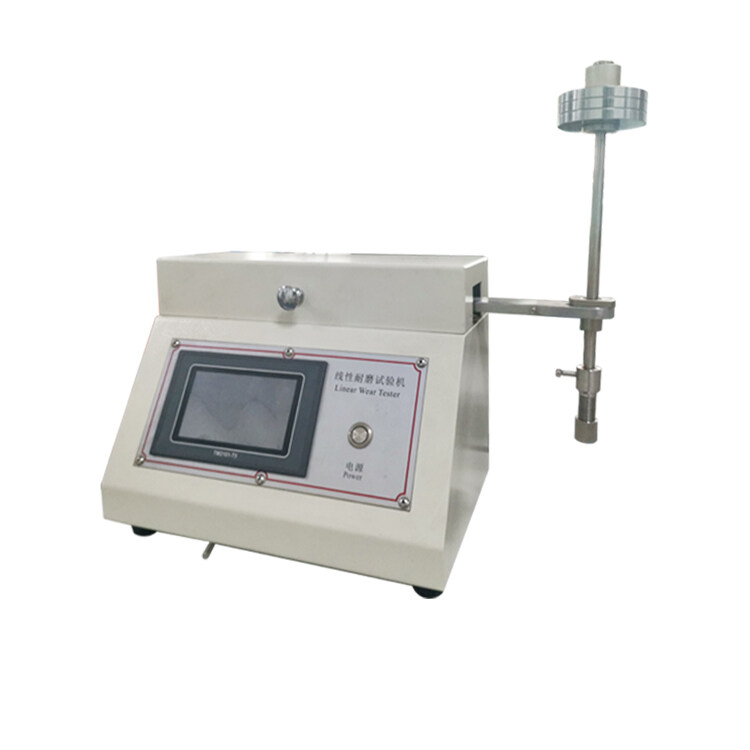

The linear abrasion tester is used to evaluate the abrasion resistance, scratch resistance (single or multiple scratches) and color transferability (usually camel color or crock fastness) of the product, etc. Both dry abrasion test and wet abrasion test can be carried out.
The linear abrasion tester is used to evaluate the abrasion resistance, scratch resistance (single or multiple scratches) and color transferability (usually camel color or crock fastness) of the product, etc. Both dry abrasion test and wet abrasion test can be carried out.
Capable of testing samples of any size or shape, it is ideal for abrasion testing of products with contoured surfaces and polished surfaces (such as: computer mouse and other computer or IT products plastic topcoat abrasion resistance testing), commonly used in plastics, automobiles Accessories, rubber, leather and textiles, electroplating, freely disassembled components, lacquers, printed graphics and more. the
Parameters such as moving distance, speed, number of revolutions, and load can be set. the
Choose from a wide range of different wear media and accessories. (The optional sample fixing table and other optional accessories can be used for hanging, damage test, alcohol resistance test, coin scratch resistance test, etc.)
The size and shape of the general grinding head are like the eraser head at the end of a pencil, and are made of high-quality abrasive materials. Can ensure the stability of the test. The linear abrasion tester complies with CE standards.
|
Moving Distance |
0.5,1,2,3,4inch (other moving distances can be customized) |
|
|
The Number of Revolutions can be Set |
0-999999 revolutions (note that the grinding head rubber may need to be replaced during this period) |
|
|
Adjustable movement speed of 2-75 round-trip/minute |
||
|
Test Speed |
0-60 beats/min (2,15,25,30,40 and 60 are Taber standard speed measurements) |
|
|
Load |
350-2100g (standard configuration is three 250g weights) |
|
|
Standard Accessories |
1 host, 3 250g weights, 1 plastic head, 10 rubber strips, 1 pressure rod, 1 power cord and a set of wrenches |
|
|
Imported Grinding Head Optional |
Standard Grinding Head: (Unit Inch) CS-10F, 1/4″ diameter CS-10, 1/4″ diameter CS-17, 1/4″ diameter H-10, 1/4″ diameter H-18, 1/4″ diameter H-22, 1/4″ diameter |
Increased Grinding Head: (Unit Inch) CS-10F, 1/2″ diameter CS-10, 1/2″ diameter CS-17, 1/2″ diameter H-18, 1/2″ diameter H-22, 1/2″ diameter CS-5, 1/2″ diameter |
