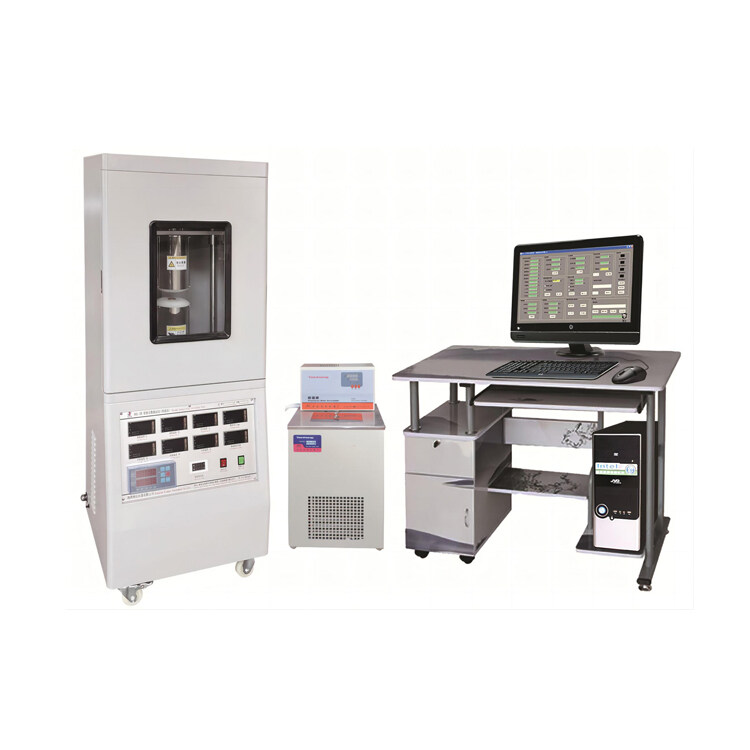

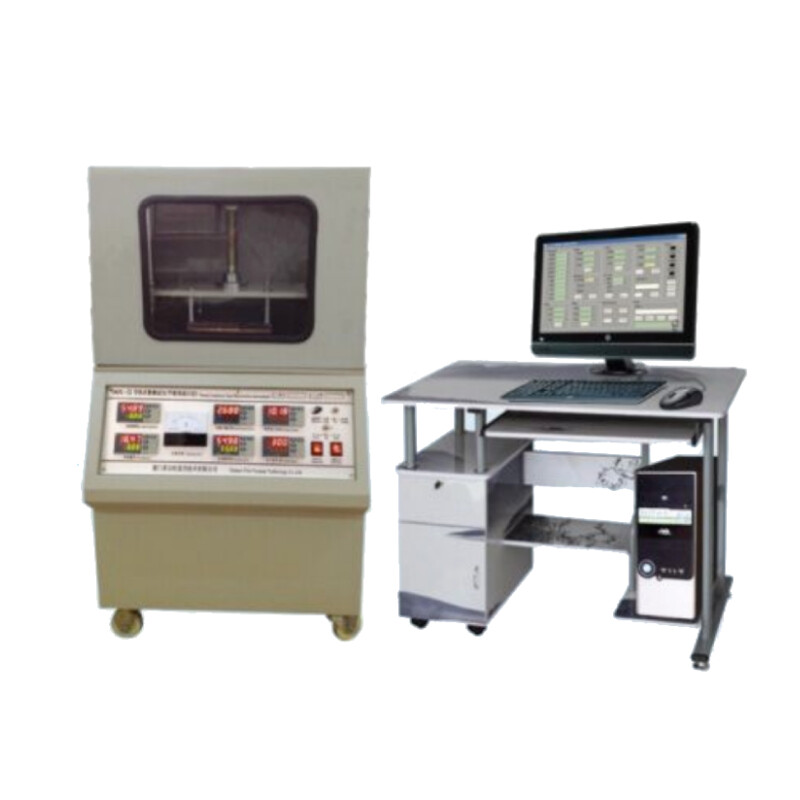

It is mainly used to test the thermal resistance of thin thermal conductors, solid electrical insulating materials, thermal grease, resin, rubber, beryllium oxide porcelain, alumina porcelain and other materials, as well as the contact thermal resistance at the solid interface and the thermal conductivity of materials. The detection material is a solid sheet, and the powder state material and paste material can be detected by adding a frame.
Instrument reference standards: MIL-I-49456A (insulating sheet, thermally conductive resin, thermally conductive glass fiber reinforced); GB 5598 (method for measuring thermal conductivity of beryllium oxide porcelain); ASTM D5470-2012 (thin thermally conductive solid electrical insulating material Heat transfer performance test standards), etc.
Features of thermal conductivity tester: Servo motor is used to control precise automatic pressure, automatic thickness measuring device, and it is connected to computer to realize automatic control. The instrument adopts 6-point temperature gradient detection, which improves the test accuracy. It can detect thermal resistance curves under different pressures, and adopt optimized mathematical models to measure multiple parameters such as thermal conductivity and thermal resistance of materials and contact thermal resistance at interfaces.
Widely used in the thermal conductivity analysis and testing of materials in colleges and universities, research institutes, quality inspection departments and production plants.

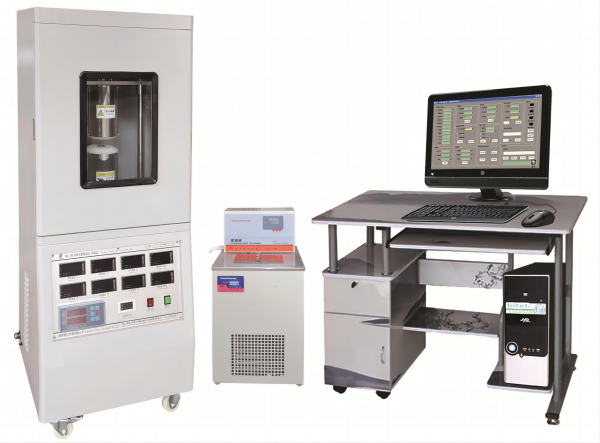

Introduction:
It is mainly used to test the thermal resistance of thin thermal conductors, solid electrical insulating materials, thermal grease, resin, rubber, beryllium oxide porcelain, alumina porcelain and other materials, as well as the contact thermal resistance at the solid interface and the thermal conductivity of materials. The detection material is a solid sheet, and the powder state material and paste material can be detected by adding a frame.
Instrument reference standards: MIL-I-49456A (insulating sheet, thermally conductive resin, thermally conductive glass fiber reinforced); GB 5598 (method for measuring thermal conductivity of beryllium oxide porcelain); ASTM D5470-2012 (thin thermally conductive solid electrical insulating material Heat transfer performance test standards), etc.
Features of thermal conductivity tester: Servo motor is used to control precise automatic pressure, automatic thickness measuring device, and it is connected to computer to realize automatic control. The instrument adopts 6-point temperature gradient detection, which improves the test accuracy. It can detect thermal resistance curves under different pressures, and adopt optimized mathematical models to measure multiple parameters such as thermal conductivity and thermal resistance of materials and contact thermal resistance at interfaces.
Widely used in the thermal conductivity analysis and testing of materials in colleges and universities, research institutes, quality inspection departments and production plants.
Main Technical Parameters:
|
Sample Size |
Φ30mm or 20x20mm (standard configuration). |
|
Sample Thickness |
0.001-50mm (standard configuration), typical thickness :0.02-20mm. |
|
Thermal Pole Temperature Control Range |
Room Temperature : -100°C (standard configuration), Room Temperature : -299.99°C , Temperature Control Accuracy : 0.01°C . |
|
Temperature Control Range of Cold Pole |
0-99.00°C , Temperature Control Accuracy 0.01℃. |
|
Thermal Conductivity Test Range |
0.01～50W/m.k, 1～300W/m.k, the computer automatically switches the range. |
|
Thermal Resistance Test Range |
0.05～0.000005m2.K/W. |
|
Pressure Measurement Range |
0~1000N, controlled by servo motor, can accurately set the pressure value of holding pressure, and the control accuracy is 1N. |
|
Displacement Measurement Range |
0~50.00mm Precision 0.1um. |
|
Number of Samples |
1 piece (multiple pieces of film). |
|
Test Accuracy |
Better than 3%. |
|
Experimental Methods |
Thermal resistance test of samples under different pressures, material thermal conductivity test, contact thermal resistance test. 12. Computer automatic test, and realize data printout. |
|
Power Supply |
220V; 50Hz; 500W. |
Typical Test Materials:
◆Metal material, stainless steel.
◆Thermal grease.
◆Thermally conductive silicone pad.
◆Thermally conductive engineering plastics.
◆Thermal tape (the sample is very thin and sticky, it is difficult to make a regular single sample, one side is fixed with transparent plastic and the other side is fixed with paper).
◆Aluminum substrate, copper clad laminate.
◆Quartz glass, composite ceramics.
◆Copper foam, graphite paper, graphite sheet and other new materials.
