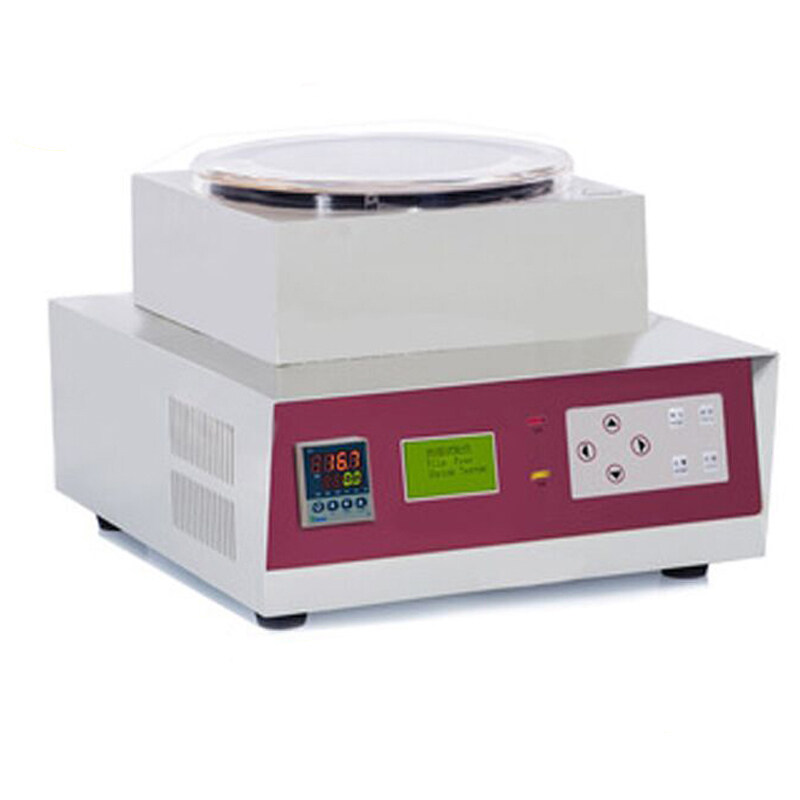

The heat shrinkage tester is professionally suitable for testing the heat shrinkage performance and dimensional stability of various films, heat shrinkable tubes, pharmaceutical PVC hard sheets, back sheets and other materials in liquid media at various temperatures.
Professional Technology：
◆Digital P.I.D temperature control and monitoring technology can not only quickly reach the set temperature, but also effectively avoid temperature fluctuations
◆Liquid medium heating provides a stable test environment
v◆The system automatically counts the time, effectively ensuring the accuracy of the test data
v◆Microcomputer control, liquid crystal display, PVC operation panel, menu interface, convenient for users to quickly operate
v◆Equipped with a standard sample clamping film grid to ensure the smooth progress of the test
Standard：
The instrument meets various national and international standards: ASTM D2732
Test Application：
Basic application film It is suitable for testing the heat shrinkage performance of various films in liquid media at various temperatures, such as PE heat shrinkable film for the overall collective packaging of wine, cans, mineral water, and various beverages, and PVC, POF, OPS, PET and other shrink films suitable for various packaging.
Technical Indicators:
|
Sample Size |
≤140 mm × 140 mm |
|
Temperature Range |
Room temperature to 200°C |
|
Temperature Control Accuracy |
120±2℃ |
|
Power Supply |
AC 220V 50Hz |
|
Dimensions |
440 mm (L) × 370 mm (W) × 310 mm (H) |
|
Net Weight |
24 kg |
Standard configuration: host, clamping net 1 set
Optional parts: clamping net, clamping net bracket
