The product is simple to operate, easy to use, stable in performance, high in product precision, and can monitor the test temperature and deformation in real time during the test; when the test is over, the system automatically stops heating and can display the test curve. This series of models is an essential instrument for self-inspection of various quality inspection units, colleges and universities and enterprises.
Product Introduction:
The product is simple to operate, easy to use, stable in performance, high in product precision, and can monitor the test temperature and deformation in real time during the test; when the test is over, the system automatically stops heating and can display the test curve. This series of models is an essential instrument for self-inspection of various quality inspection units, colleges and universities and enterprises.
Application:

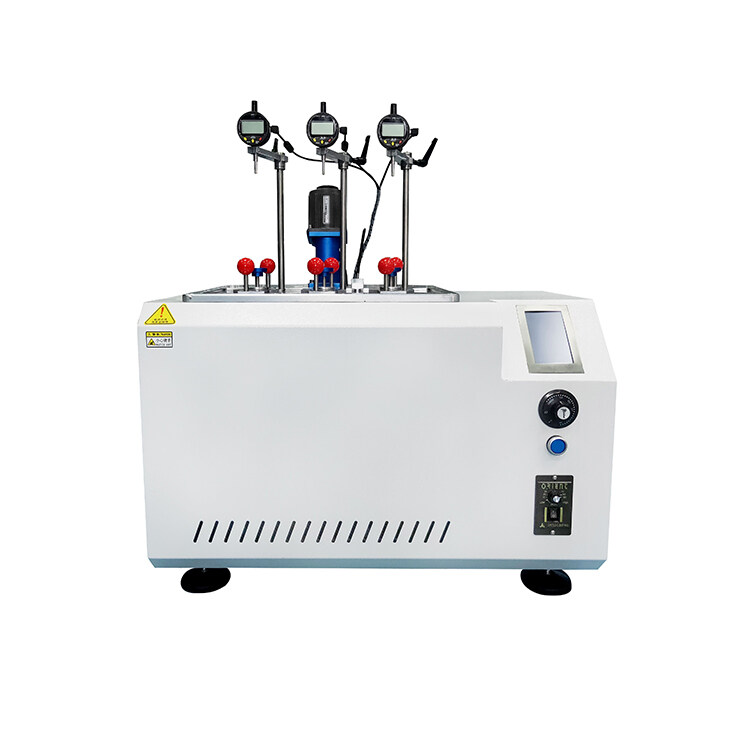

This machine is mainly used for the determination of the heat distortion temperature and Vicat softening point temperature of non-metallic materials such as plastics, rubber, nylon, and electrical insulation materials.
Standards：
The products meet the requirements of IS075(E), IS0306(E), GB/T8802, GB/T1633, GB/T1634 and other standards.
The Main Technical Parameters:
|
Temperature Control Range |
Ambient temperature – 300 ℃ |
|
Heating Rate |
(120±10)°C/h (12±1)°C/6min (50±5)℃/h (5±0.5)℃/6min |
|
Temperature Indication Error |
0.1°C |
|
Temperature Control Accuracy |
±0.5°C |
|
Maximum Deformation Indication Error |
±0.001mm |
|
Deformation Measurement Range |
0-1.5mm |
|
The Number of Experimental Racks |
3 |
|
Load Bar And Tray Mass |
68g |
|
Heating Medium |
Methyl silicone oil (kinematic viscosity is generally 200 centistokes) or transformer oil |
|
Cooling Method |
Natural cooling above 150, water cooling or natural cooling below 150 |
|
Heating Power |
4kw |
