Functions:

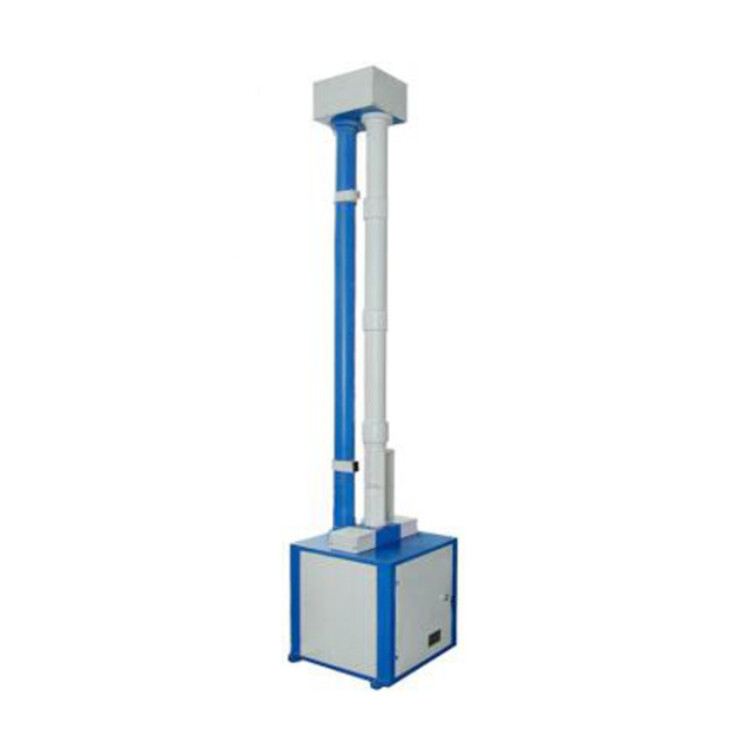

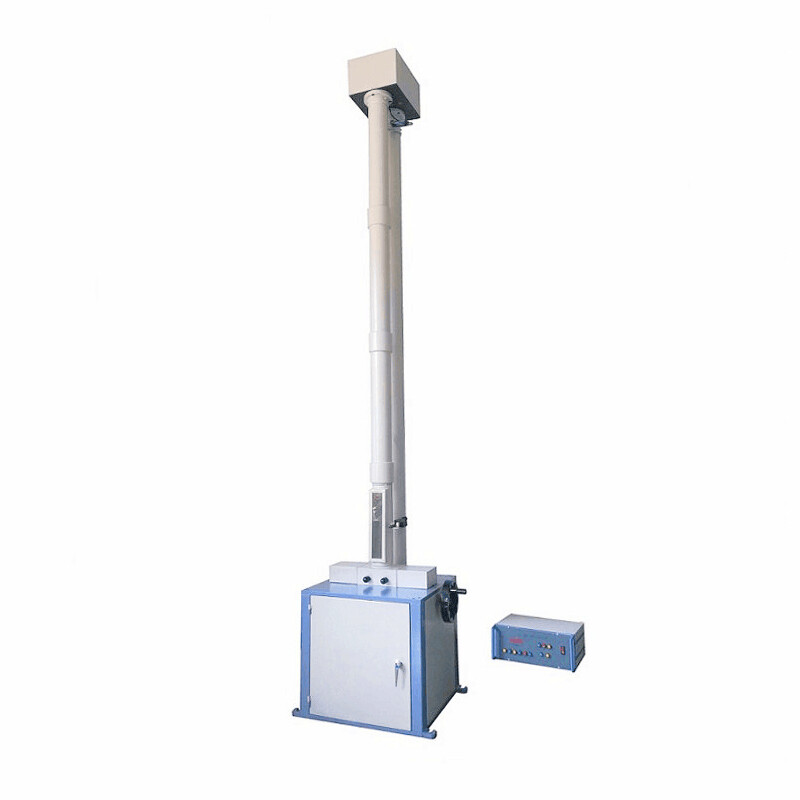

The Plastic Pipe Drop Weight Impact Tester is used to determine the resistance to external impact of thermoplastic pipes and fittings. It is suitable for testing the impact resistance of various types of pipes (such as PVC-U water supply pipes, drainage pipes, low-pressure water supply pipes, low-pressure water transmission pipes, foam core pipes, double-wall corrugated pipes, PE water supply pipes) and plastic sheets. It is also applicable to rigid plastic sheets. The product complies with the industry standard JB/T9389 technical conditions and national standards GB/T14152, GB/T14153,and GB/T6112. It also meets the requirements of test method standards such as GB/T5836, GB/T10002.1, GB/T10002.3, GB/T13664, GB/T16800, and GB/T18477.
Functions:
The Plastic Pipe Drop Weight Impact Tester is used to determine the resistance to external impact of thermoplastic pipes and fittings. It is suitable for testing the impact resistance of various types of pipes (such as PVC-U water supply pipes, drainage pipes, low-pressure water supply pipes, low-pressure water transmission pipes, foam core pipes, double-wall corrugated pipes, PE water supply pipes) and plastic sheets. It is also applicable to rigid plastic sheets. The product complies with the industry standard JB/T9389 technical conditions and national standards GB/T14152, GB/T14153,and GB/T6112. It also meets the requirements of test method standards such as GB/T5836, GB/T10002.1, GB/T10002.3, GB/T13664, GB/T16800, and GB/T18477.
|
Hammer Weight Range |
0.25–16 kg |
|
Impact Height |
50 mm–2000 mm |
|
Impact Height Error |
±2 mm |
|
Height Positioning Accuracy |
≤±1% |
|
Hammer Radius |
d25, d90 (for pipe testing) or R5, R10, R20, R25, R30, R50 (for sheet testing) |
|
Workbench Travel |
400 mm |
|
Power Supply |
220 V, 50 Hz |
|
Maximum Impact Energy |
300 J |
|
Pipe Specimen Size |
≤Φ400 mm or ≤Φ630 mm |
|
Sheet Test Fixture |
Φ40±1.0 mm, Φ80±2.0 mm, Φ130±2.5 mm |
|
Dimensions |
800×800×3370 mm or 800×800×3600 mm |
|
Weight |
390 kg / 450 kg |
|
Maximum Sheet Specimen Thickness |
40 mm |
Automated Control: Hammer hanging, lifting, and other controls and detections are manually completed. The test height can be set arbitrarily within 0.5–2 m (digital display).
Electric Adjustment of Lower Space: The specimen is automatically aligned to the zero position, effectively reducing the workload of operators and improving work efficiency.
7-inch Color Touchscreen Input: Equipped with automatic hammer absorption, automatic zero alignment, automatic lifting, and automatic prevention of secondary impact functions.
Dual-Tube Structure: Ensures safer and more reliable operation.
Chain Drive for Lifting and Lowering: The combination of chains, sprockets, and motors avoids the entanglement issues caused by wire rope drives.
Configuration List:
|
Serial Number |
Name |
Quantity |
Unit |
Remarks |
|
1 |
Drop Weight Impact Tester Main Unit |
1 |
Set |
|
|
2 |
Electrical Control Box |
1 |
Set |
|
|
3 |
100g Weight |
1 |
Piece |
|
|
4 |
125g Weight |
2 |
Piece |
|
|
5 |
200g Weight |
1 |
Piece |
|
|
6 |
250g Weight |
1 |
Piece |
|
|
7 |
500g Weight |
1 |
Piece |
|
|
8 |
1000g Weight |
2 |
Piece |
|
|
9 |
2000g Weight |
1 |
Piece |
|
|
10 |
3000g Weight |
1 |
Piece |
|
|
11 |
6000g Weight |
1 |
Piece |
|
|
12 |
500g Hammer Body |
1 |
Set |
Including upper and lower trays, hammer tail |
|
13 |
1000g Hammer Body |
1 |
Set |
Including upper and lower trays, hammer tail |
|
14 |
(D25, D90) Hammer Heads |
1 |
Set |
Pipe testing |
|
15 |
Double-Sided V-Shaped Fixture |
1 |
Piece |
|
|
16 |
Single-Sided V-Shaped Fixture |
1 |
Piece |
|
|
17 |
(R5, R10, R20, R25, R30, R50) Hammer Heads |
1 |
Set |
Board testing |
|
18 |
(Φ40±1.0mm, Φ80±2.0mm, Φ130±2.5mm) Fixtures |
1 |
Set |
|
|
19 |
User Manual |
1 |
Piece |
|
|
20 |
Packing List |
1 |
Piece |
|
|
21 |
Certificate of Compliance |
1 |
Piece |
