This device meets the requirements of IEC61439-1:2009, IEC62262-2002 Article 6 and IEC60068-2-75 and other standards for test equipment, and is suitable for the mechanical impact strength of the electrical equipment shell to the outside world grade test. The device is welded with stainless steel frame, compact and durable structure, the mounting bracket can be adjusted up and down, the impact angle can be adjusted from 0-90°, and it is easy to operate.
Product Introduction:

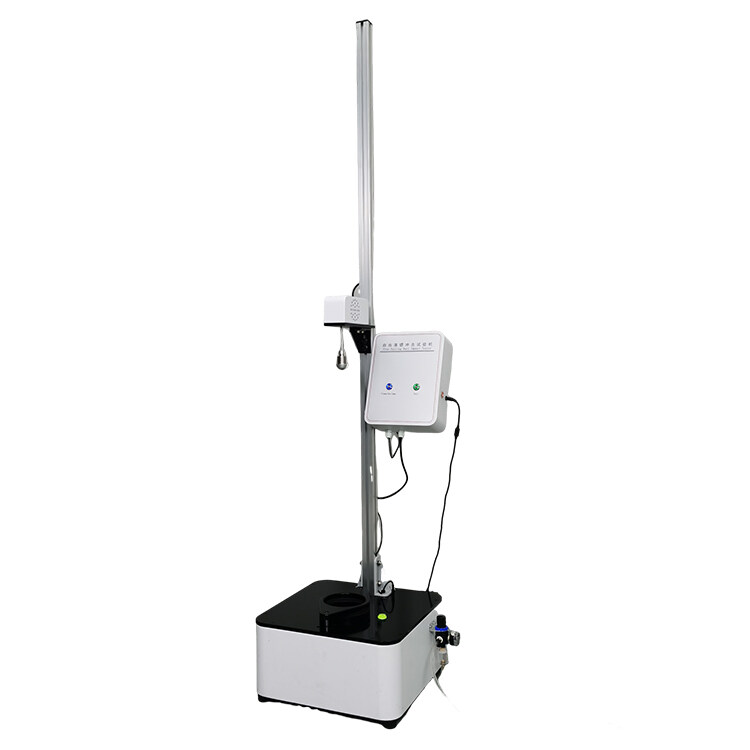

Film drop dart impact testing machine is designed for testing the impact resistance of film materials, using the free-falling dart method cascade method. The tester implements the requirements of GB/T9639 (Test method for impact resistance of plastic films and sheets, free falling dart method), ASTM D1709, JIS K7124 and ISO7765-1:1988. Relevant standards apply to plastic films or sheets with a thickness of less than 1mm under the impact of a free-falling dart at a given height, and determine the impact mass and energy when the plastic film and sheet samples are damaged. It can be used as a professional instrument for food packaging QS certification.
Scope of Application:
This instrument is suitable for plastic films and thin slices with a thickness of less than 1mm, and materials with a breaking mass of 0.05~2kg.
Principle:
Under the given conditions, use method A to determine the mass of the falling body whose number of damaged samples reaches 50%.
Technical Parameters:
|
Maximum Impact Energy |
30J |
|
Measurement Methods |
Method A, Method B (optional) |
|
Test Range |
Method A: 50～2000g Method B :120～2000g |
|
Dart Head Radius |
Method A :38mm Method B :50mm |
|
Test Height |
0.3-1.8m (manually adjustable) |
|
Test Conditions |
23℃, 50% RH (standard) |
|
Sample Clamping |
Pneumatic |
|
Fixture Inner Diameter |
125mm |
|
Output Method |
Thermal printer |
|
Power |
30W |
|
Air Pressure Requirement |
>0.5MPa |
|
Dimensions |
Method A :450*530*1500mm Method B :450*530*2050mm |
|
Net Weight |
Method A : Approx. 40kg Method B: Approx. 45kg |
Standard Configuration:
Main Unit: 1 unit
Power Cord: 1 piece
Air Tube: 1 piece
Printer Paper: 2 rolls
Method A Dart Head: 2 pieces
Method B Dart Head: 1 piece
Method A Weights: 1 set
Method B Weights: 1 set
38mm Dart Head + Weight Set:
38mm Dart Head + Short Rod (Total Weight: 40g): 1 piece
38mm Dart Head + Long Rod + Locking Ring (Total Weight: 70g, Locking Ring Weight: 10g): 1 piece
Weights:5g weights: 2 pieces,15g, 30g, 80g, 120g weights: 8 pieces each
50mm Dart Head + Weight Set:
50mm Dart Head + Aluminum Rod (Total Weight: 110g), Locking Ring Weight: 10g
Weights:15g weights: 2 pieces,45g, 90g, 180g weights: 8 pieces each
