Product Name:

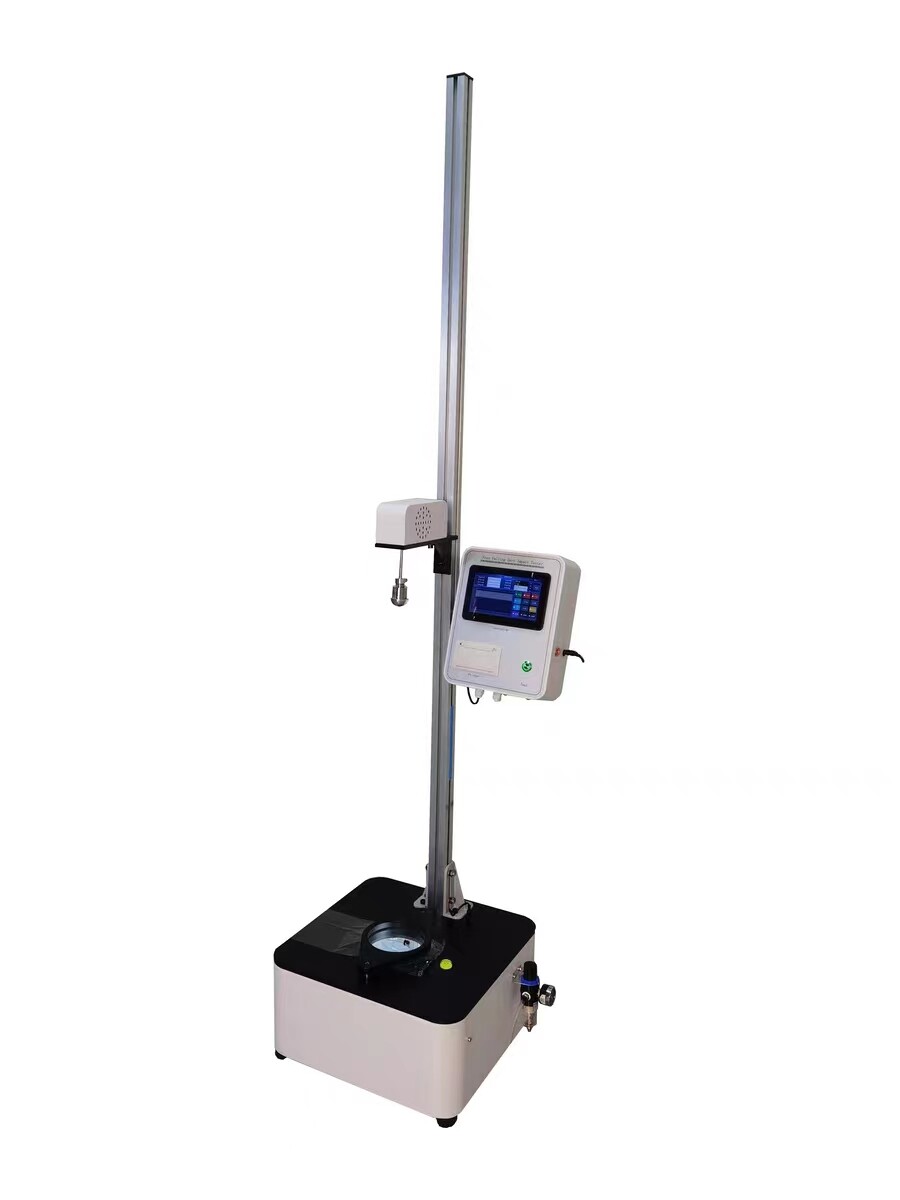

Thin Film Falling Dart Impact Tester
Product Synopsis:
This machine is designed to test film material impact resistance performance, by the methods of free falling dart cascade, accord with the GB/T 9639.1 2008 A method, as well as ISO7765 – “88 standard requirement.
Scope of Application:
This instrument is suitable for the plastic film and the thickness is less than 1 mm wafer, break through the quality of 0.05 ~ 2 kg of material.
Principle:
Under the given conditions, with A or B method to determine the sample damaged quantity 50% fall quality.
|
Control Mode |
Touch screen |
|
Output Mode |
Thermal printer |
|
Method |
Method AB |
|
Test Range |
Method A: 50 ~ 2000 g , Method B: 120 ~ 2000 g |
|
Falling Dart Head Diameter |
Method A: 38mm , Method B: 50mm |
|
Test Height |
0.3 ~ 1.5M manually adjustable |
|
Test Conditions |
23 ℃ 50% RH (standard) |
|
Sample Clamping |
125 mm |
|
Power |
30W |
|
Air Pressure Requirements |
> 0.5 MPa |
|
The Machine Size |
450*530*1500( Method A）、450*530*2050（Method B） |
|
Net Weight |
About 45 kg ( Method A）、45KG（Method B） |
Standard Configuration:
Main Unit: 1 unit
Power Cord: 1 piece
Air Tube: 1 piece
Printer Paper: 2 rolls
Method A Dart Head: 2 pieces
Method B Dart Head: 1 piece
Method A Weights: 1 set
Method B Weights: 1 set
38mm Dart Head + Weight Set:
38mm Dart Head + Short Rod (Total Weight: 40g): 1 piece
38mm Dart Head + Long Rod + Locking Ring (Total Weight: 70g, Locking Ring Weight: 10g): 1 piece
Weights:5g weights: 2 pieces,15g, 30g, 80g, 120g weights: 8 pieces each
50mm Dart Head + Weight Set:
50mm Dart Head + Aluminum Rod (Total Weight: 110g), Locking Ring Weight: 10g
Weights:15g weights: 2 pieces,45g, 90g, 180g weights: 8 pieces each
