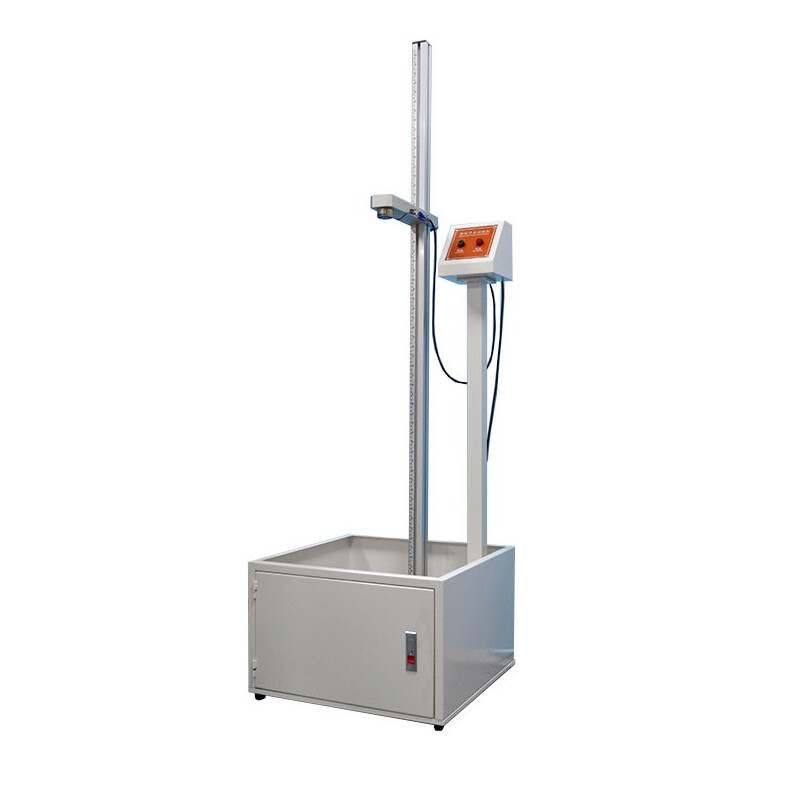

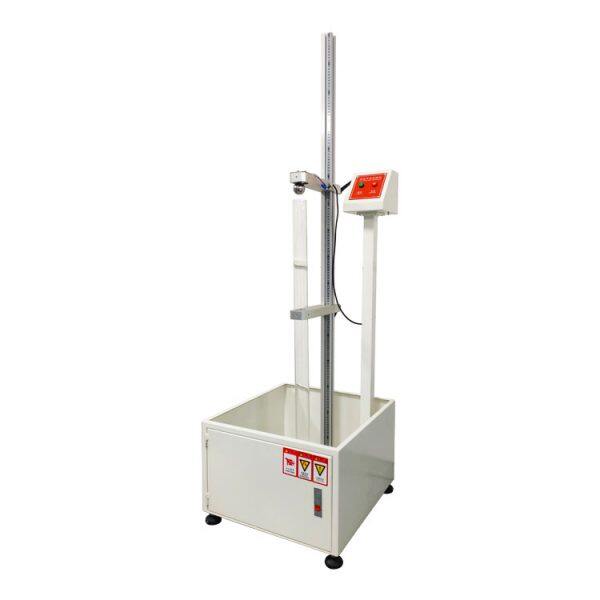

The machine adopts dc electromagnetic control mode, put the ball under the magnetic chuck, steel ball automatic sucked, press down fall, chuck instantaneous release of steel ball, steel ball will be free fall to impact specimen surface.Drop height can be adjusted up and down with altitude scale, can be learned that ball drop height.Weight of the steel ball to regulation, in a certain height, free fall, hit the sample, depending on the degree of damage.
Falling Ball Impact Test Machine for fastness plastics, ceramics, acrylic, glass fibers and other materials and the test paint.
Introduction：
The machine adopts dc electromagnetic control mode, put the ball under the magnetic chuck, steel ball automatic sucked, press down fall, chuck instantaneous release of steel ball, steel ball will be free fall to impact specimen surface.Drop height can be adjusted up and down with altitude scale, can be learned that ball drop height.Weight of the steel ball to regulation, in a certain height, free fall, hit the sample, depending on the degree of damage.
Falling Ball Impact Test Machine for fastness plastics, ceramics, acrylic, glass fibers and other materials and the test paint.
|
Ball Weight |
112g, 198g, 225g, 357g, 533g (optional 1042g, 2280g) |
|
Drop Height |
20 ~ 1500mm |
|
Drop Height Scale |
minimum instruction 1cm |
|
Machine Size |
W400 x D450 x H2200mm |
|
Machine Weight |
40kg |
|
Power Source |
1∮, 220V, 5A or designated |
