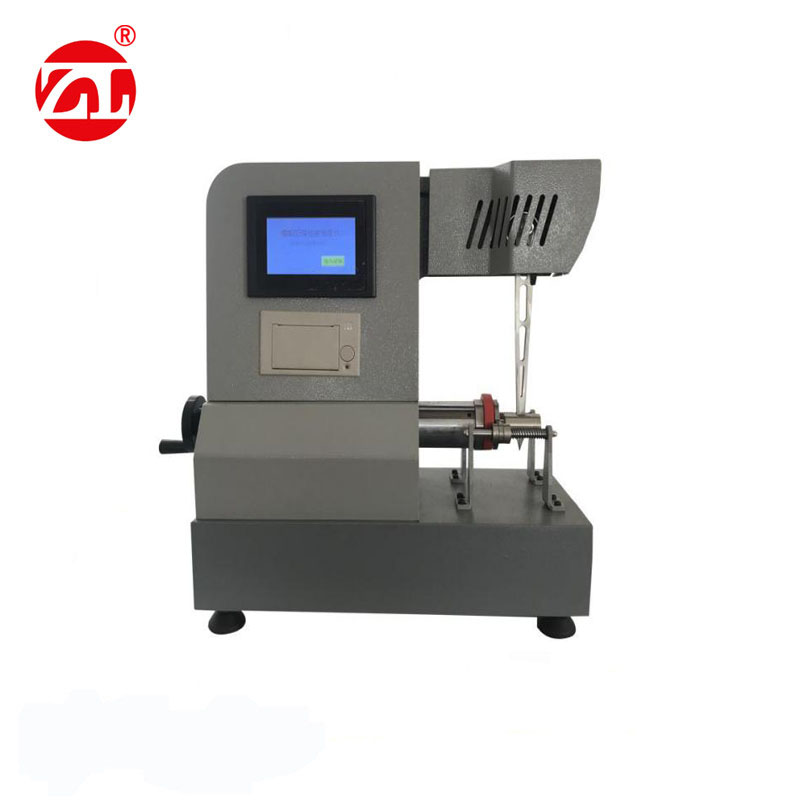

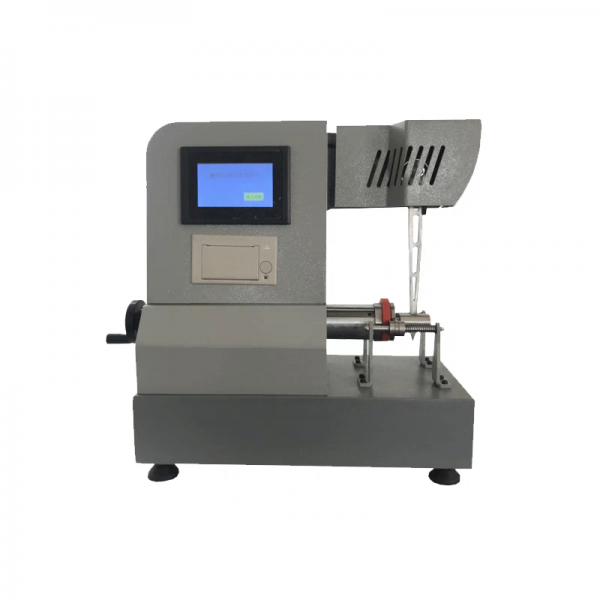

The intelligent rubber rebound tester is designed and manufactured according to the national standard GB/T1681-2009 “Determination of the resilience of vulcanized rubber” and the international standard ISO4662-1986 “Rubber-Determination of the resilience of vulcanized rubber”.
Overview:
The intelligent rubber rebound tester is designed and manufactured according to the national standard GB/T1681-2009 “Determination of the resilience of vulcanized rubber” and the international standard ISO4662-1986 “Rubber-Determination of the resilience of vulcanized rubber”.
Scope of Application:
suitable for rubber and other products with international hardness values in the range of 30IRHD-85IRHD.
Features:
Technical Parameters:
|
Probe Diameter |
φ12.5mm (standard size, non-standard can be customized) |
|
Fixture |
Inner diameter 20mm, outer diameter 35mm |
|
Impact Mass |
350g |
|
Impact Speed |
1.4m/s |
|
Resolution |
0.18° |
|
Maximum Clamping Thickness |
60mm |
|
Impact Angle |
90°±0.18° |
|
Voltage |
220V |
Optional Punch and Fixture Combinations:
|
Basic Features |
Size I |
Size II |
Size III |
Size IV |
Size V |
|
Sample Thickness D/mm |
2±0.1 |
4±0.2 |
6.3±0.3 |
12.5±0.5 |
25±1 |
|
Punch diameter D/mm |
2±0.05 |
4±0.1 |
6.3±0.1 |
12.5±0.1 |
25±0.2 |
|
Minimum Diameter of Sample/mm |
9 |
15 |
20 |
2 |
50 |
|
Maximum Diameter of Sample/mm |
25 |
45 |
53 |
53 |
70 |
|
Clamping Ring Inner Diameter/mm |
5 |
8 |
12 |
20 |
36 |
|
Clamping Ring Outer Diameter/mm |
10 |
16 |
22 |
35 |
55 |
