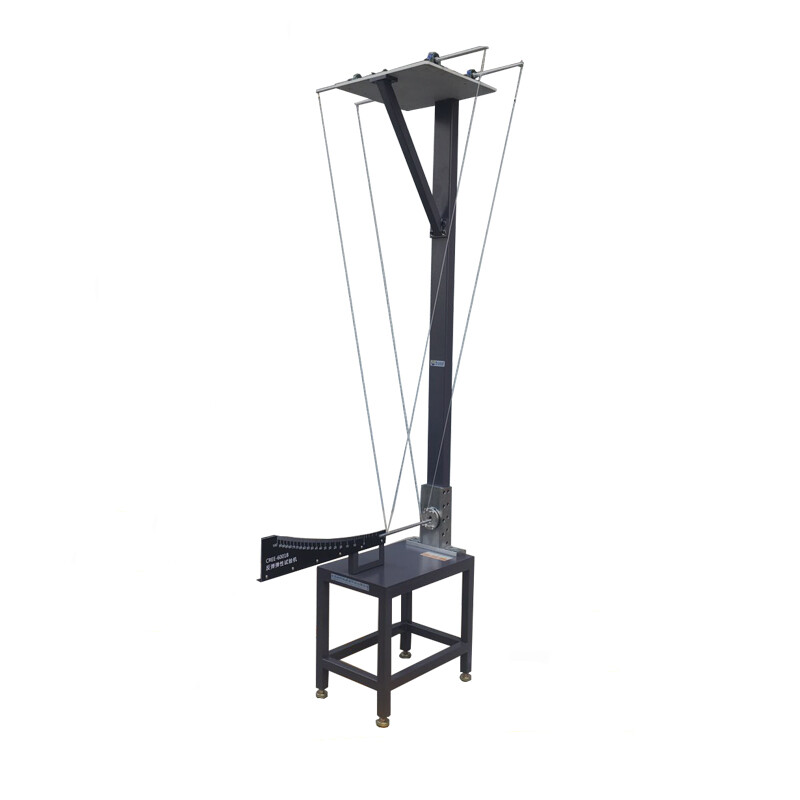

This machine is testing the rebound elasticity of vulcanized rubber. The test method is to move the iron rod so that the pointer is at the position of the scale 100, then let the iron rod fall freely, and read the height of the rebound when the fourth hit is made, which is the rebound elastic rate of the sample.
Equipment Overview:
This machine is testing the rebound elasticity of vulcanized rubber. The test method is to move the iron rod so that the pointer is at the position of the scale 100, then let the iron rod fall freely, and read the height of the rebound when the fourth hit is made, which is the rebound elastic rate of the sample.
Meet the standard:
JIS-K6255
Application industry: rubber industry
Technical Parameter:
|
Model |
ZL-3007C |
|
Audition |
Ф28.6829, (D) 12.7mm |
|
Iron Rod |
Ф12.7mm (L) 356, (R) 6.35mm Weight 350 |
|
Scale Horizontal Length |
(L) 625, (R) 2000mm |
|
Scale Vertical Height |
100 mm (divided into 100 equal parts) |
|
Drop Height |
100 mm (vertically) |
|
Hanging Wire Length |
2000 mm (250 mm front and back, 900 mm left and right) |
|
Volume |
120*92*275cm |
|
Weight |
70kg |
