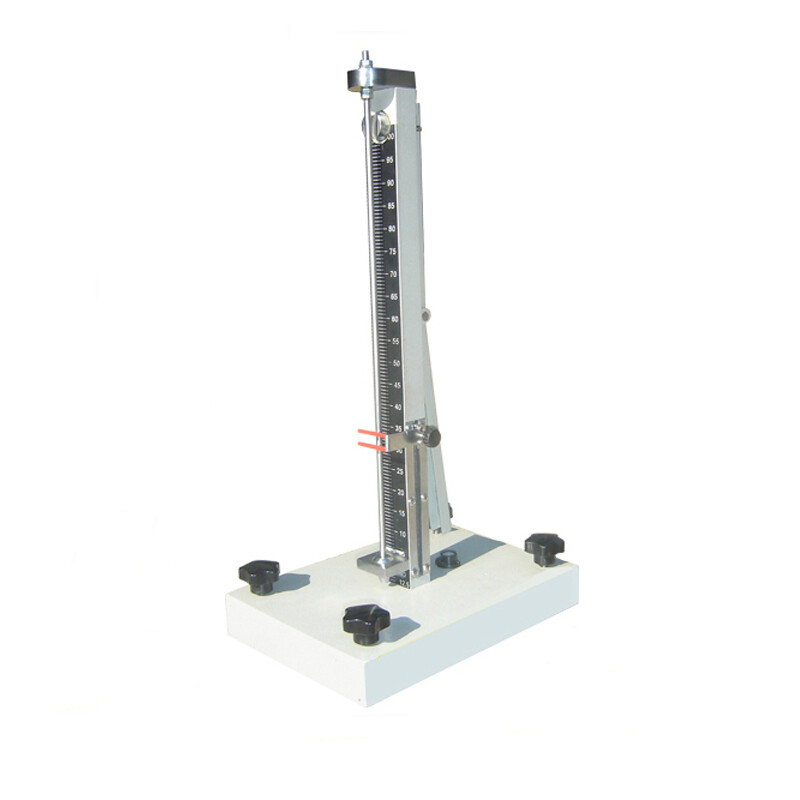

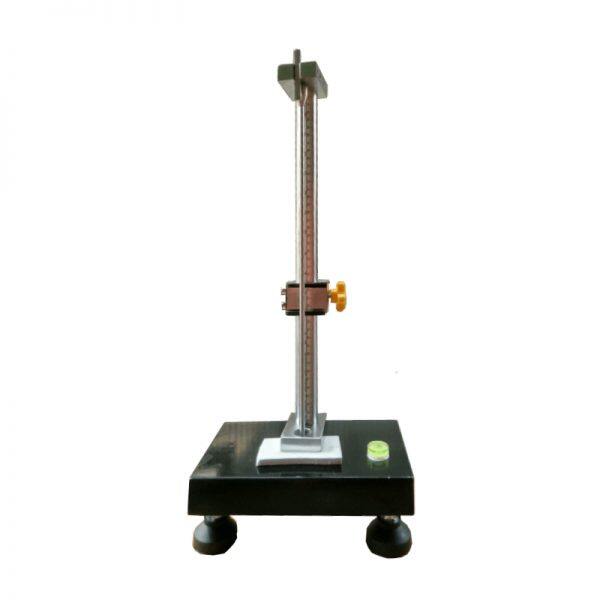

The tester is based on the vertical free-fall hammer method to test the elasticity of rubber materials, first adjust the tester level, and then upgrade to a certain degree of drop hammer, placing test films that should be more than 14mm from the edge of the specimen, the first three of the tests were not used to record, Record the fourth, fifth and sixth rebound height and averaged.
Tester Summary:
The tester is based on the vertical free-fall hammer method to test the elasticity of rubber materials, first adjust the tester level, and then upgrade to a certain degree of drop hammer, placing test films that should be more than 14mm from the edge of the specimen, the first three of the tests were not used to record, Record the fourth, fifth and sixth rebound height and averaged.
Corresponding Standard :
ASTM-D2632
Applicable Industry:
Rubber Industry
Technical Parameter:
|
Model |
ZL-3007B |
|
Height of Fall |
400mm |
|
Weight Hammer |
28g |
|
Volume |
25×15×52.5cm |
|
Weight |
8kg |
