Product Use:

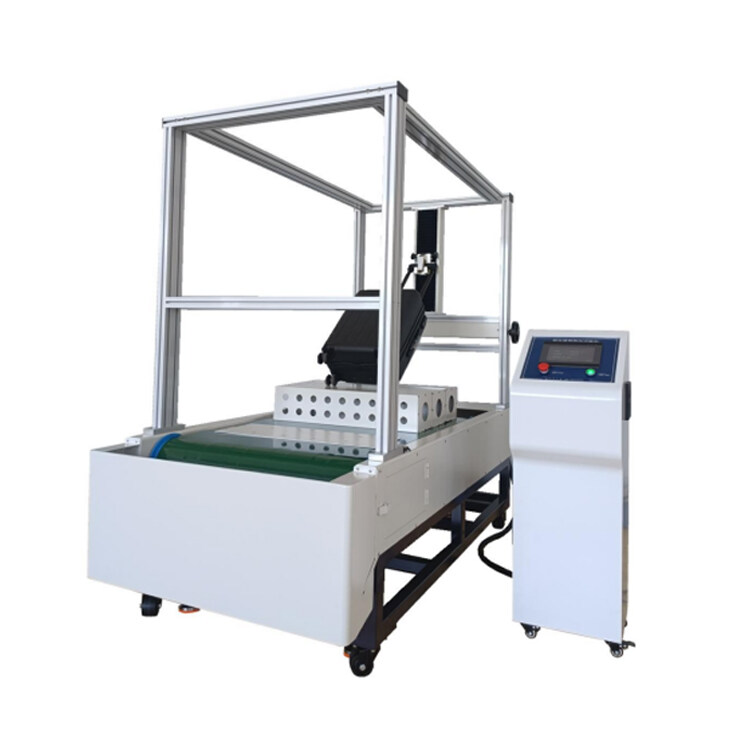

This machine is mainly used for analogical testing of the collision of the box shell and luggage wheels caused by the up and down steps encountered during the actual use of luggage products. Observing the resistance of the box shell, luggage wheels, and axles to bumps, as well as the overall structure of the box for any damage or deformation, the test results can provide reference for the production process and quality of luggage.
Product Use:
This machine is mainly used for analogical testing of the collision of the box shell and luggage wheels caused by the up and down steps encountered during the actual use of luggage products. Observing the resistance of the box shell, luggage wheels, and axles to bumps, as well as the overall structure of the box for any damage or deformation, the test results can provide reference for the production process and quality of luggage.
Technical Parameters:
|
Control Mode |
Color touch screen (convenient and practical), human-machine interface operation mode. |
|
Test Speed |
0-3km/h (adjustable) |
|
Test Times |
0-9999 times |
|
Step Height |
Three pieces with a height of 15cm |
|
Ladder Pavement Width |
12 * 0.3cm, two pieces |
|
Pull Rod Test Height Adjustment |
quick adjustment of handwheel |
|
Auxiliary Function |
If the test piece falls off midway, it will automatically stop when sensed |
|
Power Supply |
AC220V, 50HZ |
