Product Use:

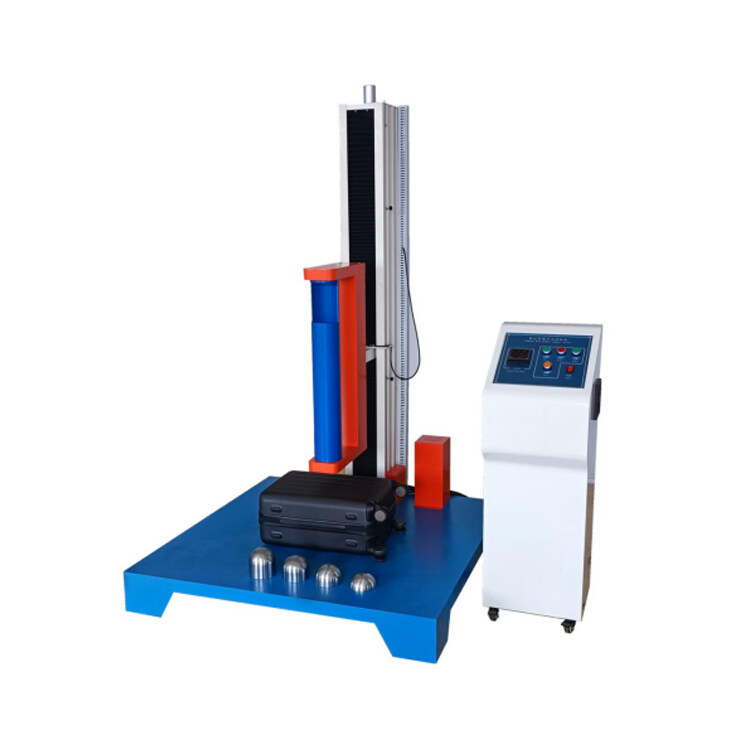

This product is suitable for impact resistance testing of materials such as molded bags and suitcases. The instrument adjusts the impact head with a specified weight to a certain height, allowing it to fall freely and strike the sample according to the degree of damage.
Product Use:
This product is suitable for impact resistance testing of materials such as molded bags and suitcases. The instrument adjusts the impact head with a specified weight to a certain height, allowing it to fall freely and strike the sample according to the degree of damage.
Test standard:
This instrument complies with JIS-K6745, A5430, QB/T 2918-2007 , QBT 2155-2010
Technical Parameters:
|
Maximum Height |
1500mm |
|
Falling Ball Control Method |
DC electromagnetic control |
|
Impact Head Weight |
one each of 2000g, 3000g, 4000g, and 5000g |
|
Impact Head Size |
cylinder diameter of 100 ± 2mm, bottom radius of 50 ± 2mm |
|
Machine Size |
(L × W × H) 120cm × 120cm × 210cm |
|
Power Supply |
1∮, AC 220V 2A |
