Product Introduction:

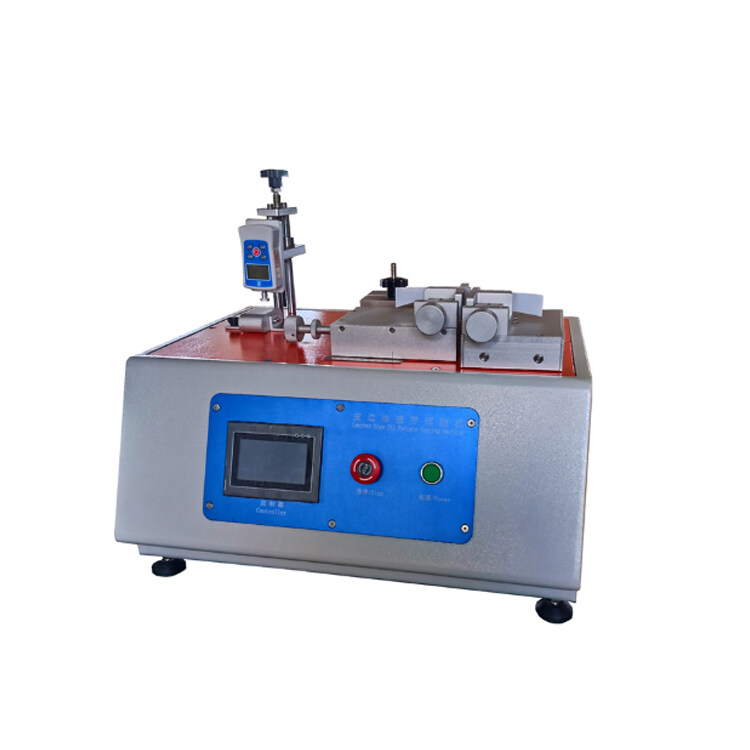

This instrument is mainly used for testing the firmness of the edge oil of luggage straps. Observe whether there is cracking or peeling of the edge oil on the packaging tape through continuous rubbing experiments.
According to the Standard:
QB/T1333，QB/T5246-2018
Technical Parameters:
|
Control Method |
Touch screen control |
|
Longitudinal Loading Method |
0.5kg, 2kg, 4kg each |
|
Frequency Setting |
1~99999 (adjustable) |
|
Lateral Movement Stroke |
55 ± 3mm |
|
Lateral Speed |
40 times/minute |
|
Adjust Stroke |
Adopt eccentric wheel adjustment, front opening method for easy adjustment |
|
Speed Regulation |
Variable frequency drive regulation |
A set of Bag Bending Force Testing Device:
|
The Diameter of the Indenter |
10 ± 0.1mm |
|
Pressure Sensor Accuracy |
0.01KG |
|
Pressure Display |
LCD digital display |
|
Maximum Sensor Capacity |
10KG |
|
Bending Block Height |
30 ± 1MM |
|
Weight |
55kg |
|
Power Supply |
AC220V 50HZ |
