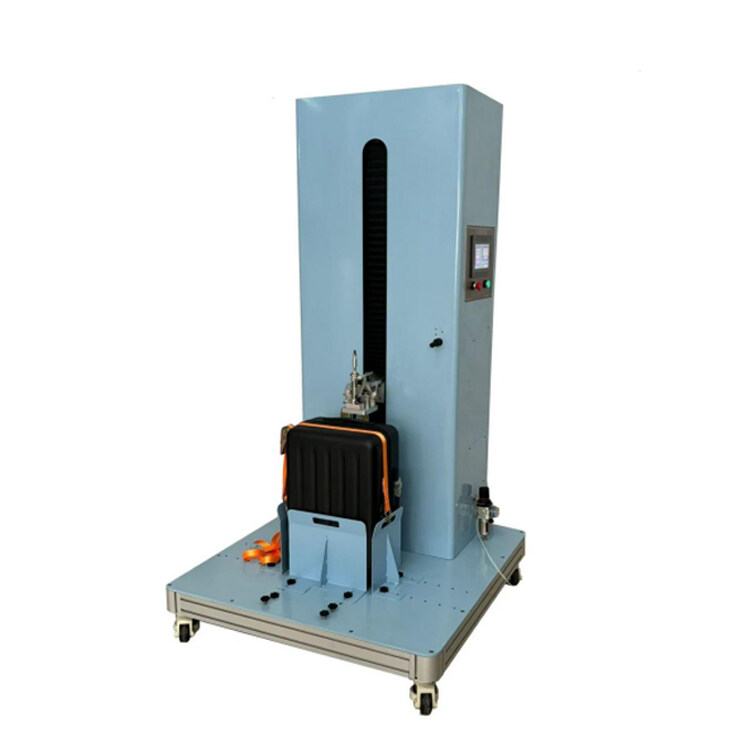

ZL-2910 Luggage Handle Fatigue Tester

Application:

This machine is designed for conducting reciprocating fatigue tests on luggage pull rods. During the test, the specimen will be stretched to test for gaps, looseness, connecting rod failures, deformations, etc. caused by the pull rods. New function for testing pull rod locks, allowing for individual testing of pull rod lock fatigue and comprehensive testing! Motor type: It can achieve segmented testing and stepless pull rod testing according to customer’s actual requirements, and can also set the displacement and time of tension and compression according to customer requirements.

According to the Standard:

QB/T2919-2018 QBT 2155-20108 Travel Luggage.

Product Specifications:

1. Control mode: PLC control, human-machine interface operation mode.
2. Sample fixing device. Luggage fixing clip holder.
3. Pull rod gripper with automatic opening and closing device for pull rod lock.
4. Pull rod motion device, testing power is servo motor synchronous belt transmission. Capable of reciprocating motion, with a speed of 0-30 times/minute, and can set the rest time during the testing process.
5. Test stroke: Adjustable from 20 to 100cm, displacement recording device, records and sets displacement, with tolerance controlled within ± 1mm.
6. Support frame, height not less than 1500mm, installed with pull-out and compression stroke guide rails.
7. Pull rod lock switch device, which can be installed according to the different forms or positions of the pull rod lock.
8. Segmented testing is possible.
9. It has the function of automatically recording the number of pulling and closing times.
10. Can test both the pull rod and the pull rod lock simultaneously.
11. Stretching speed: adjustable from 0 to 30cm/sec
12. Compression speed: adjustable from 0 to 30cm/sec
13. Test frequency: 1~999999. Automatic shutdown
14. Test power: servo motor
15. Machine size: 100 * 100 * 210cm
16. Machine weight: 180kg
