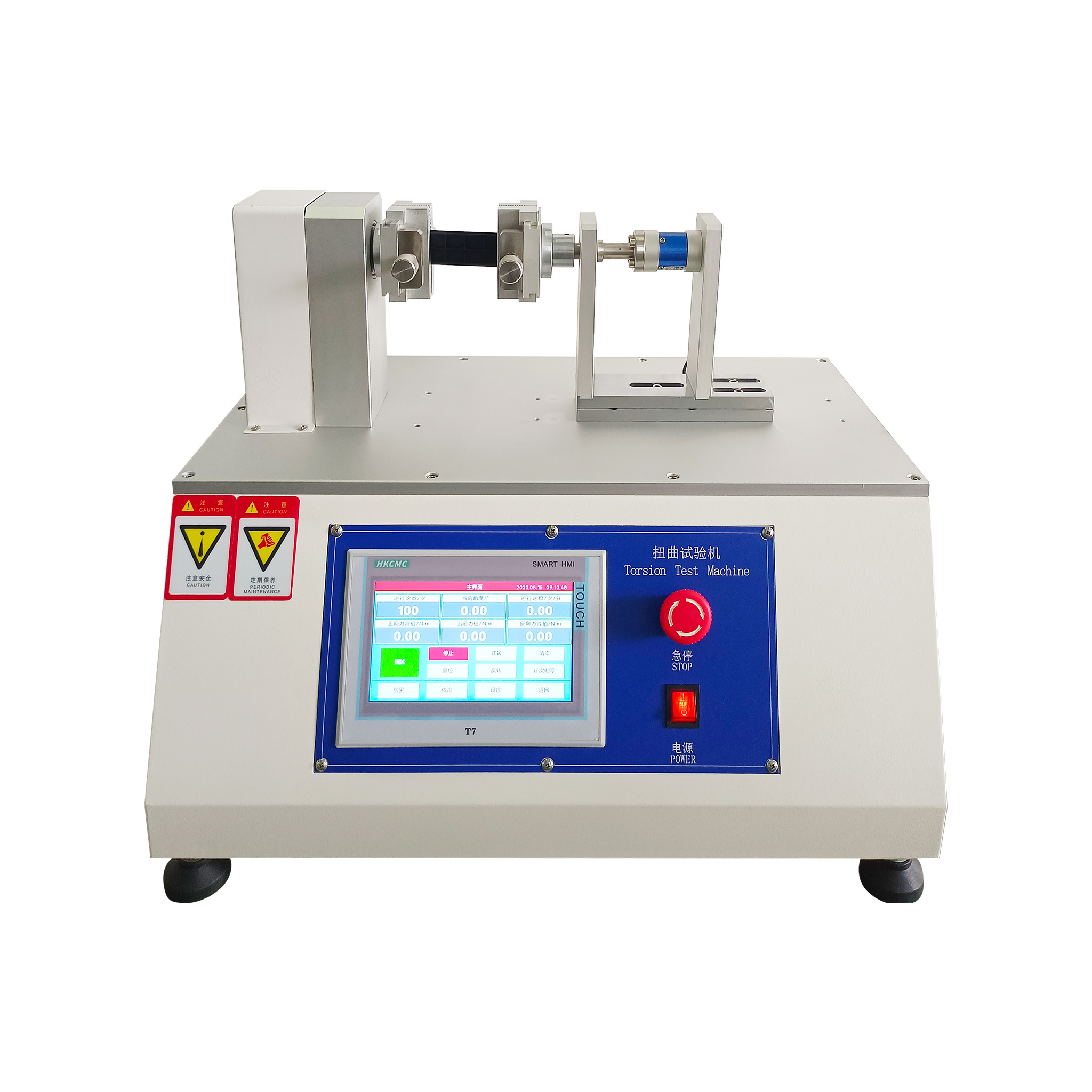

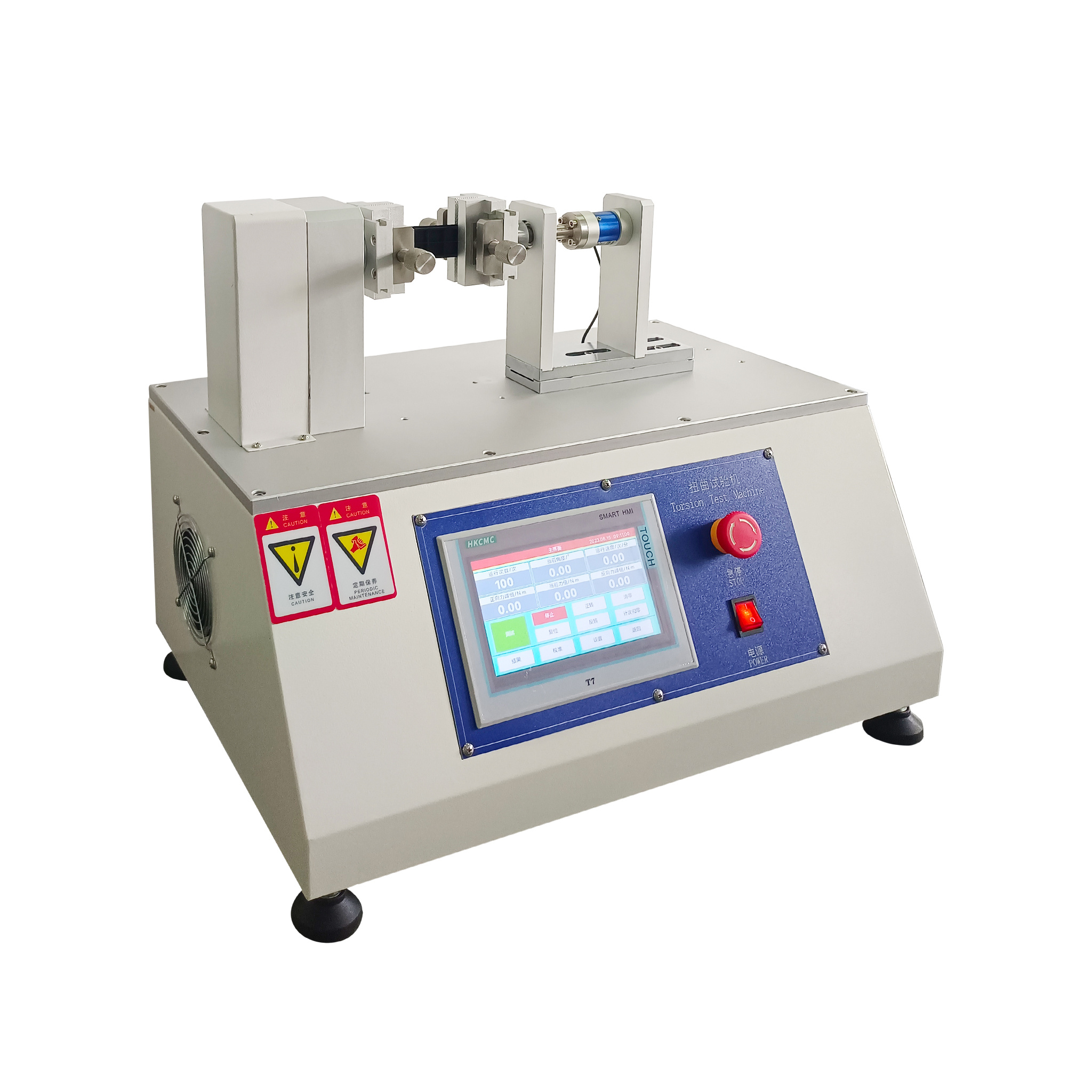

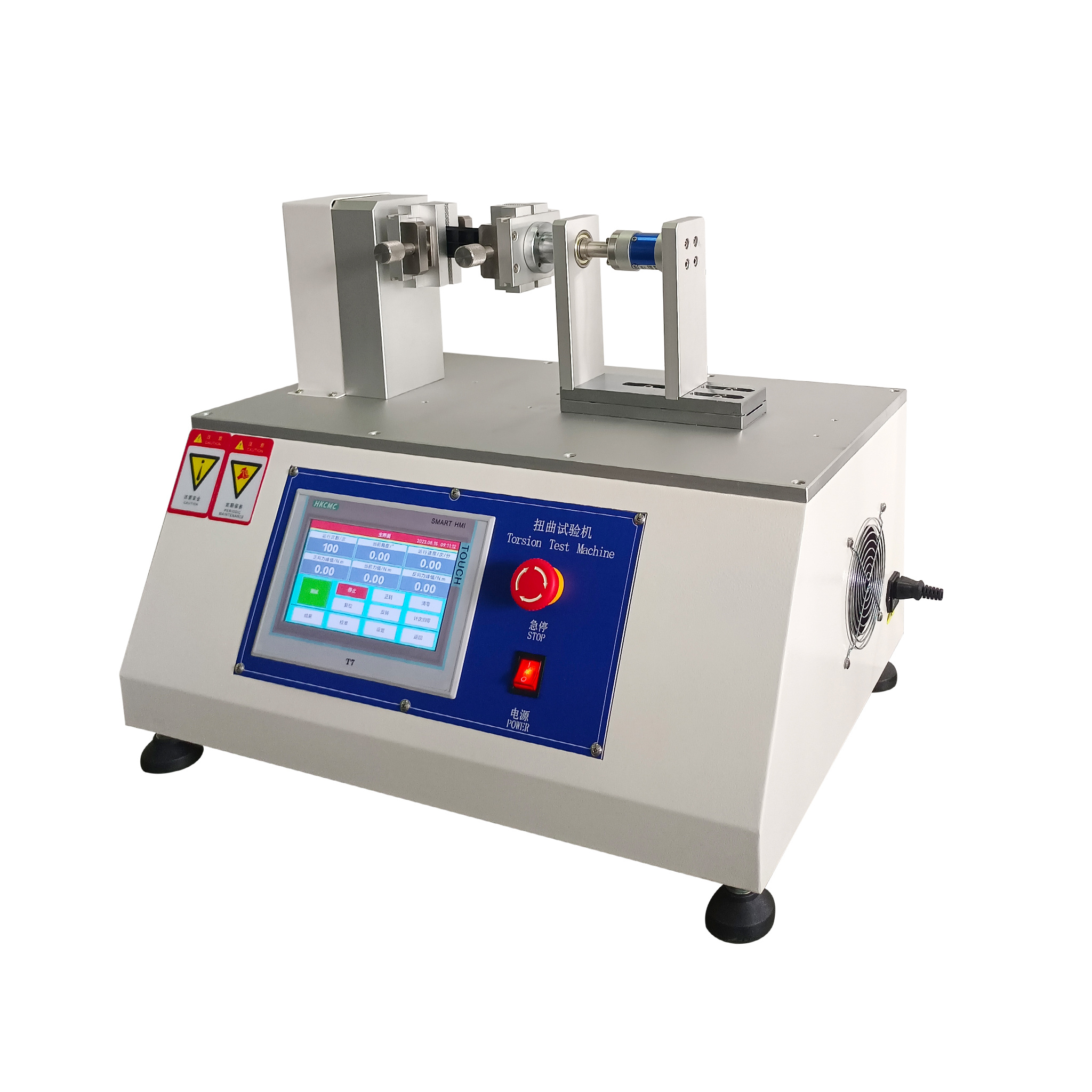

The mobile phone torsion testing machine is an instrument for testing the torsion durability test of various types of mobile phones. After the mobile phone is fixed on the fixture, the torque and angle of rotation can be set, and then repeated back and forth to test the torsion resistance of the mobile phone.
The torsion life testing machine is suitable for the torsion test of electronic products. It can be twisted clockwise and counterclockwise to test the anti-torsion performance of the mobile phone shell and internal structure.
Application:
The mobile phone torsion testing machine is an instrument for testing the torsion durability test of various types of mobile phones. After the mobile phone is fixed on the fixture, the torque and angle of rotation can be set, and then repeated back and forth to test the torsion resistance of the mobile phone.
The torsion life testing machine is suitable for the torsion test of electronic products. It can be twisted clockwise and counterclockwise to test the anti-torsion performance of the mobile phone shell and internal structure.
Principle：
Experiment by simulating the distorted action of the mobile phone during the user’s use.
One end of the mobile phone in the length direction is fixed in the twisting fixture, and the other end is floating in the fixed fixture → turn on the testing machine, set the torque value → the motor drives the twisting fixture to rotate forward and reverse, and the touch screen displays the torque value of forward and reverse rotation in real time.
Technical Parameters：
|
Number of workstations |
1/set |
|
Operation mode |
Touch screen |
|
Torque |
1～4 N.m |
|
Distortion frequency (beat) |
1 to 20 times/min (holding time is adjustable) |
|
Counter |
6 bits (built-in) |
|
Power supply |
220V 750W |
|
Dimensions |
600mm*550mm*400mm |
|
Weight |
60kg |
Features:
1.The torque value can be displayed in real time, and the test torque can be set.
2.The structure design is reasonable and unique, and has full applicability to different types of mobile phones.
3.Large touch screen interface control, PLC control equipment runs stably, low noise, maintenance-free.
